Product Description

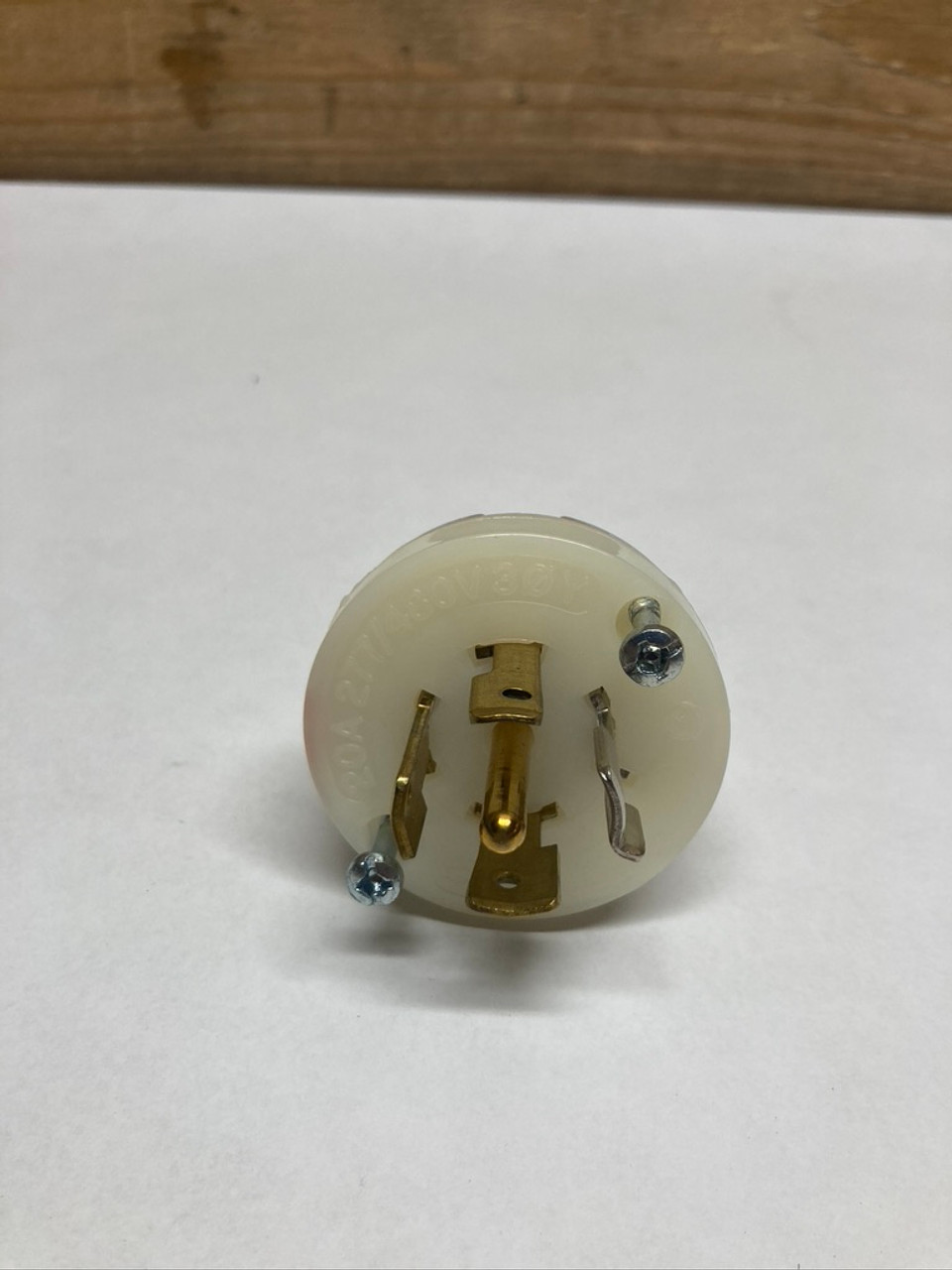

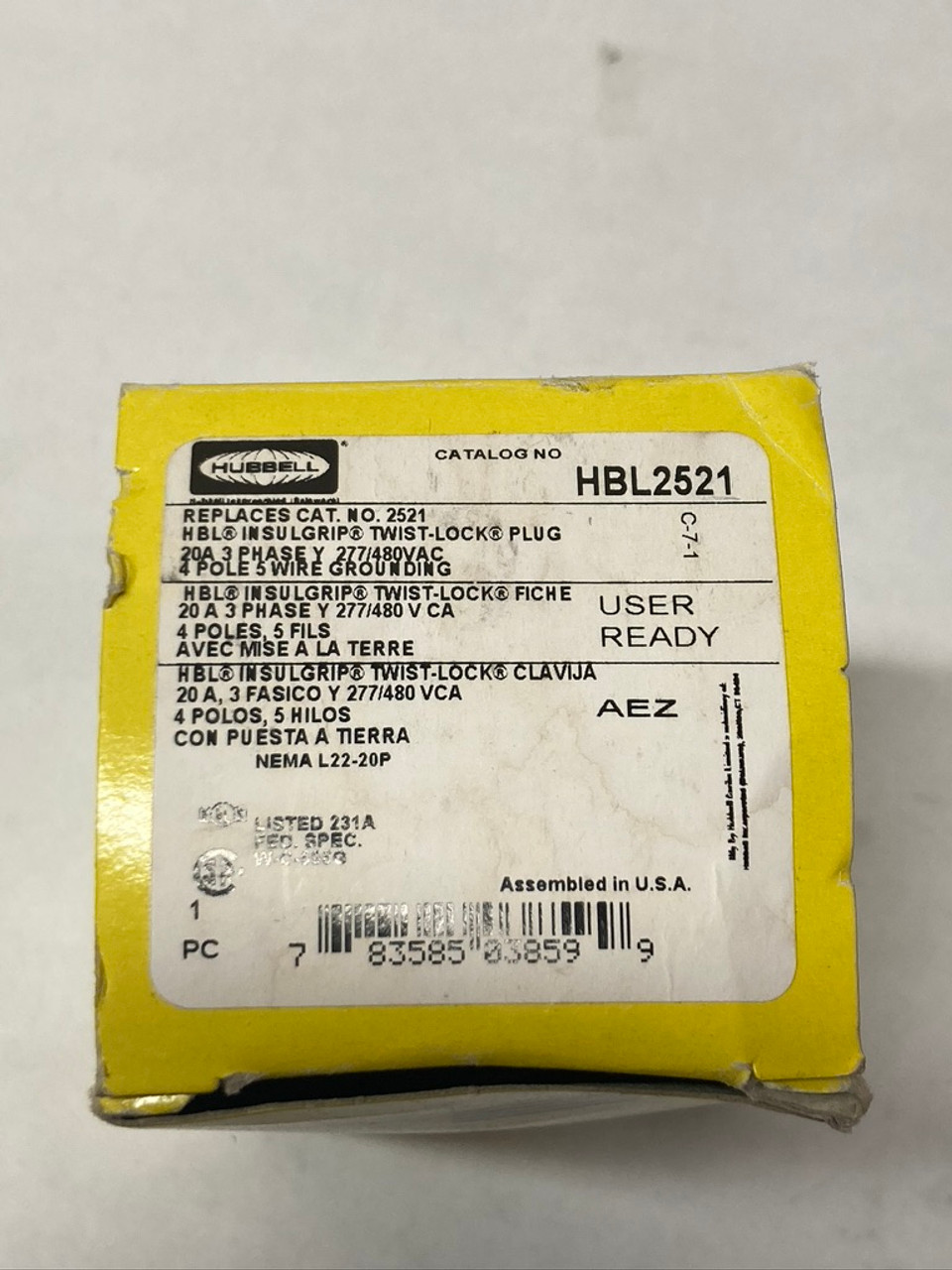

Up for sale is a Twist Lock Electrical Plug manufactured by Hubbell. Item listed is in new old stock condition. Packaging shows signs of shelf wear.
Locking Devices, Twist-Lock®,
Industrial, Male Insulgrip® Plug, 20A 3-Phase WYE 277/480V AC, 4-Pole
5-Wire Grounding, NEMA L22-20R, Screw Terminal, Black and White Nylon.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Z-139
