Product Description

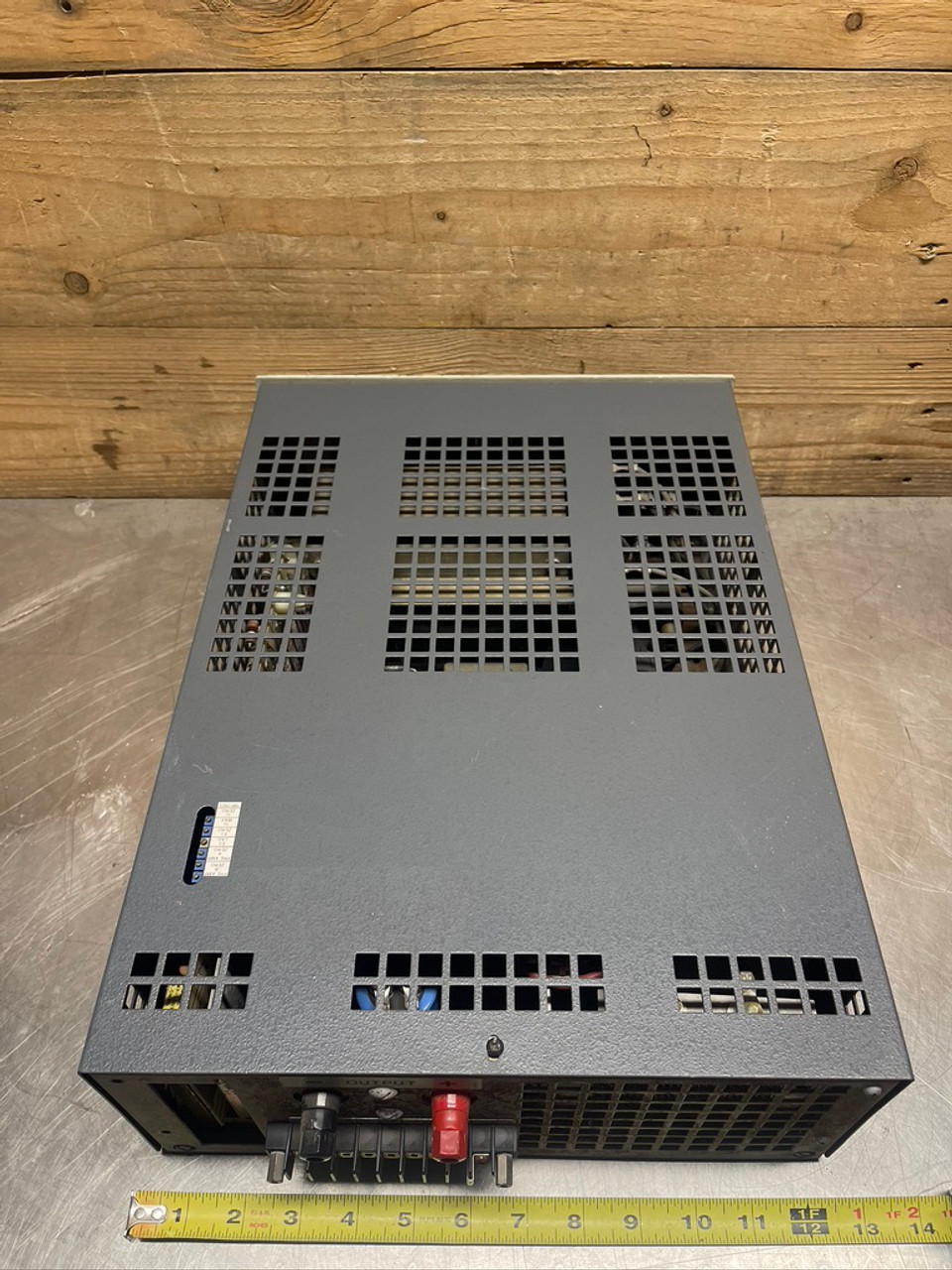

Up for sale is a Three-Quarter Rack Power Supply manufactured by Kepco. Item is in used condition has been tested and does power on. No further testing done. Item has some surface imperfections from age, with normal signs of wear from previous use. There is surface rust on the back and appears to be rust on the base when looking inside unit. Power cord included. Includes only what is pictured.
- Quarter, Half, Three-Quarter and Full Rack Sizes
- High Gain and Zeroable Offsets
- Equally Controlled Voltage and Current Channels
The Kepco ATE Series Power Supply with programmable overvoltage protector is a precision stabilized power supply which can deliver either stabilized output voltage or current. The prevailing operating mode is indicated by LED mode indicators at the front panel. Operating mode crossover is automatic and may be monitored remotely by means of a flag signal, available at the rear programming connector. The power supply features "full range" output control by means of 10-turn, high resolution front panel potentiometers. A pair of front panel meters constantly monitor the output voltage and output current. This power supply has a linear and fully dissipated NPN pass transistor section drive by a high-gain, integrated circuit amplifiers. The output of the power supply is fully programmable. All necessary input terminals are provided on a programming connector at the rear of the chassis. Terminals are also provided for remote error, sensing, as well as for the connection of the output capacitor directly at the load.
The ATE power supply features user-selectable "slow" or "fast" operating modes. Slow mode operating is recommended for applications demanding a constant voltage source. Fast mode operation is best if the output voltage must changed rapidly, either in response to an external programming signal or, if the ATE is used as a current stabilizers, as a reacting to changing load resistance.
7-2-3
