Product Description

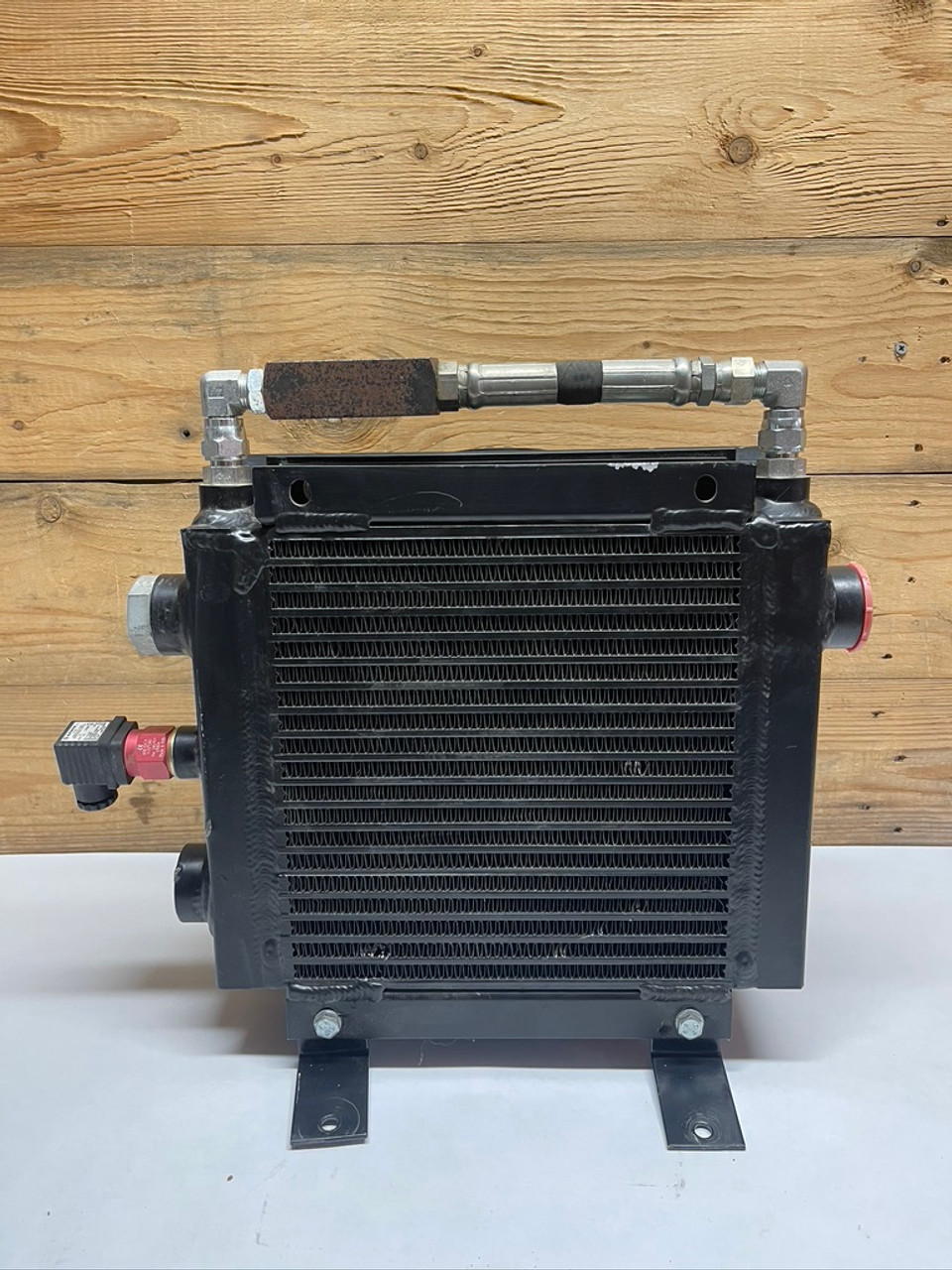

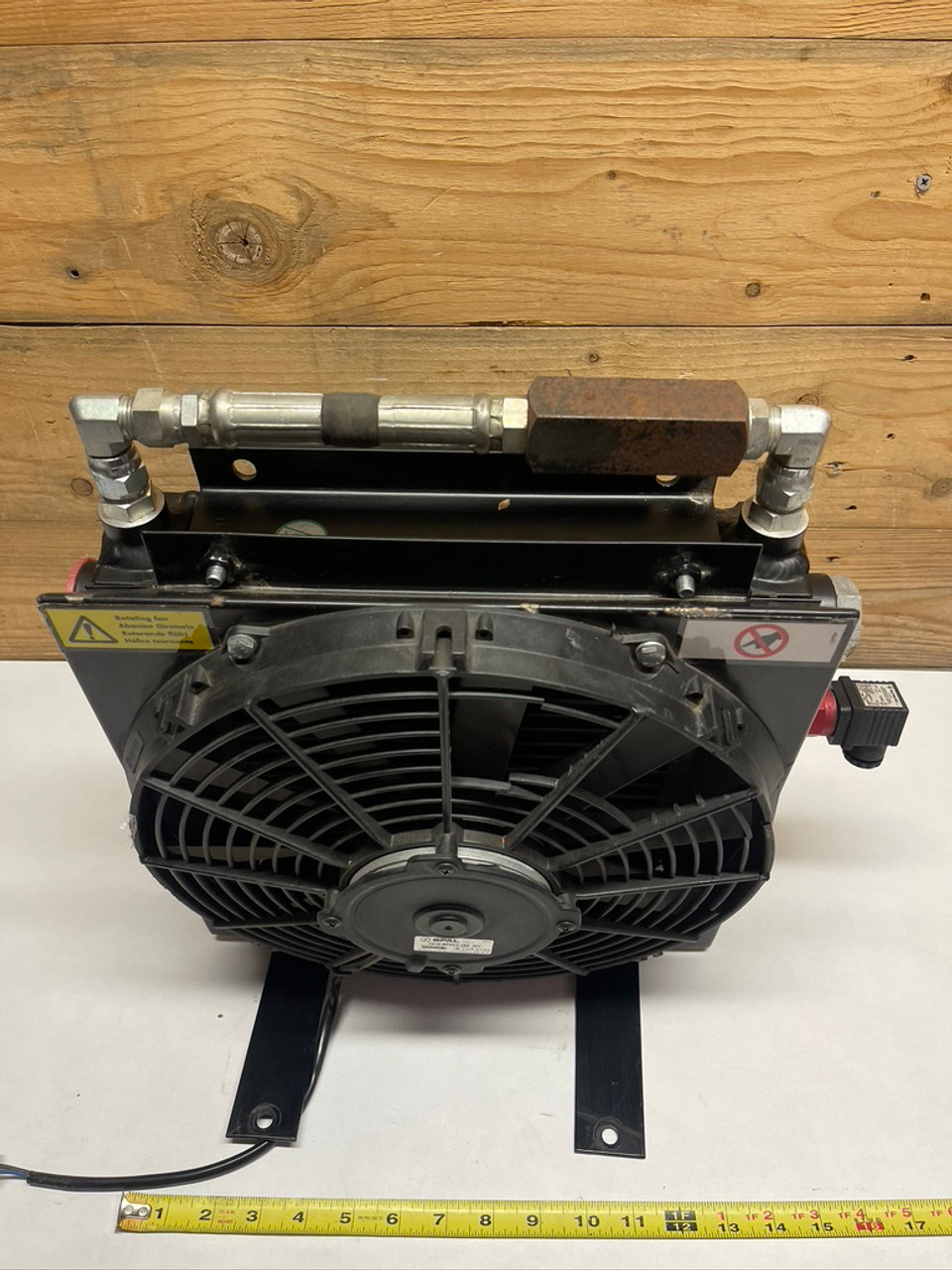

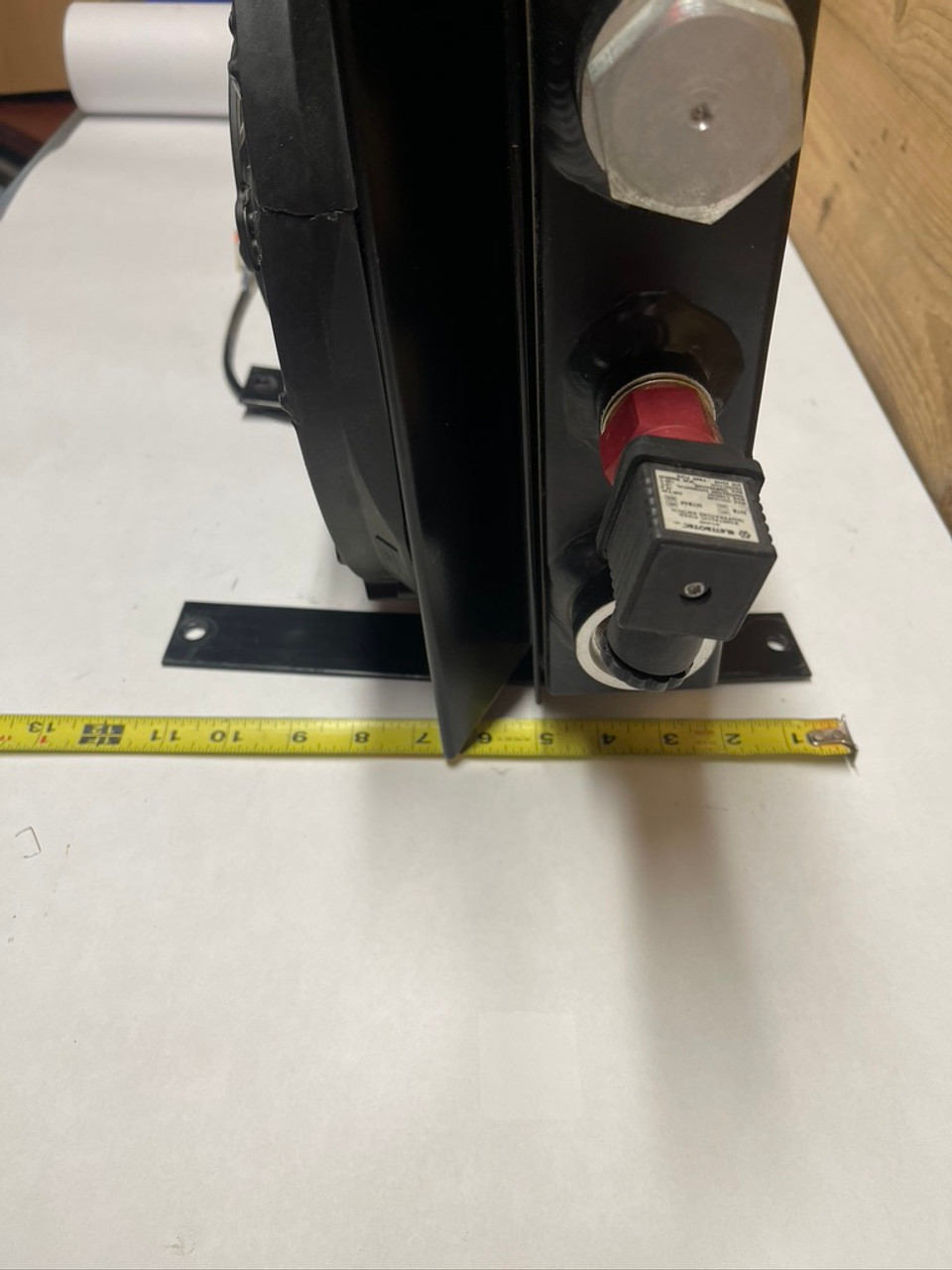

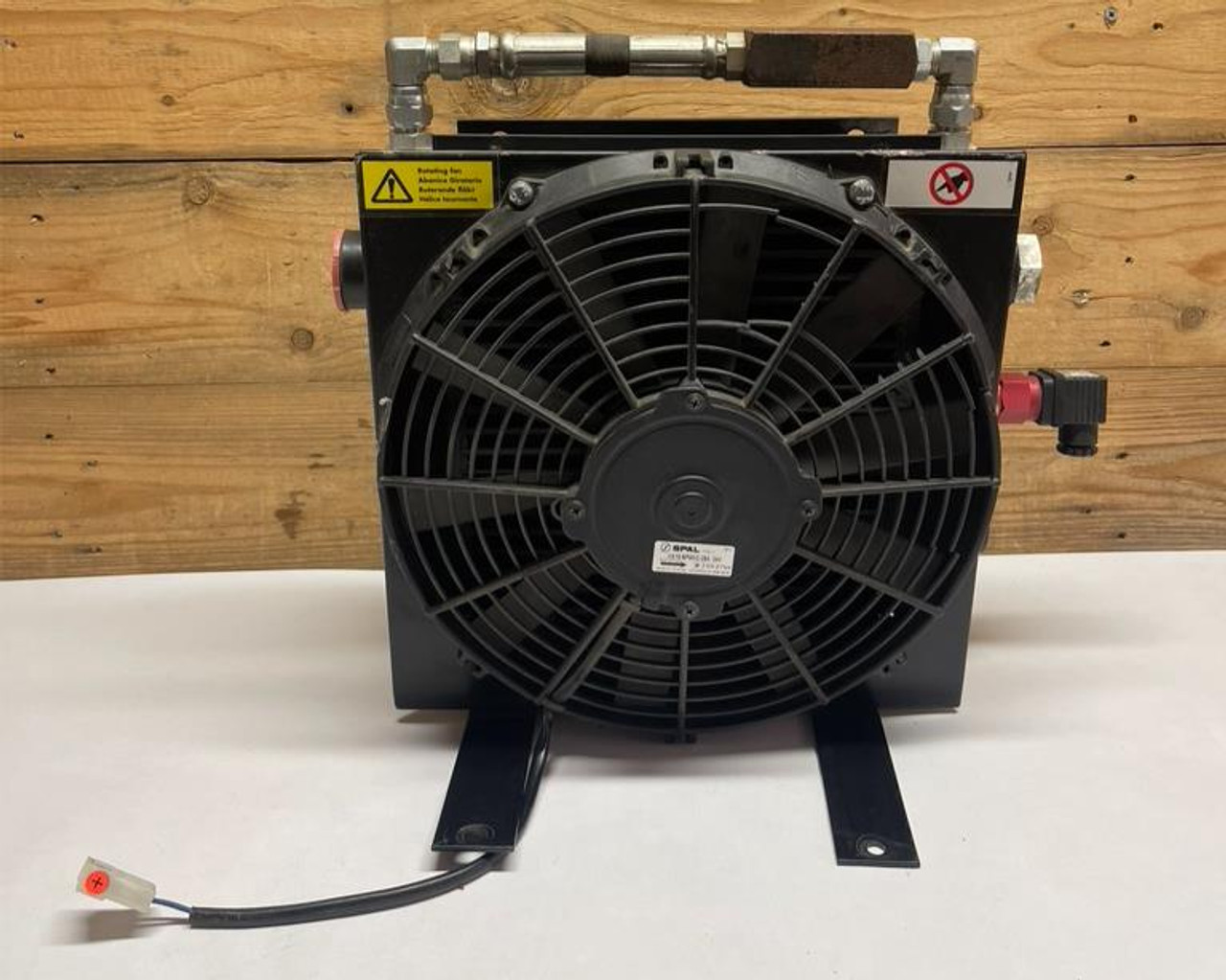

Up for sale is an Air Oil Cooler manufactured by Parker. Item appears to be previously used, removed from working equipment. The fan cover is cracked and will need to be replaced, and there are other chips and dings on the item. Includes only what is pictured.
| Flow Rate: | 33.0 gal/min, 124.9 L/min |
| Maximum Cooling Capacity: | 9.7 HP, 7.2 kW |
| Motor Type: | 24 VDC |
| Bypass Options: | 65 psi External Hose Bypass |
| Input Voltage: | 24 VDC |
| Height: | 13.3 inch, 330.2 mm |
| Length: | 13 inch, 330.2 mm |
| Width: | 6.8 inch, 172.7 mm |
| Port Size: | 1 inch (#16) |
| Connection Thread Size: | 1-5/16"-12 inch |
| Specifications Met: | n/a |
| Maximum Operating Pressure: | 300 psi, 20.7 bar |
| Maximum Fluid Temperature: | 250 °F, 121 °C |
| For Fluid Type: | Mineral Oil, Oil/Water Emulsion, Water Glycol, Phosphate Ester |
| Materials of Construction: | Aluminum (Cooler Core), Glass Fiber Reinforced Polypropylene (Fan Blades/Guard), Steel (Fan Housing/Other Parts), Electrostatically Powder-Coated Surface Treatment |
| Motor Power Output Rating: | 0.27 HP |
| Weight: | 20 lb, 9 kg |
| Noise Level: | 71 dBA |
| Thermoswitch: | 160°F |
| Size: | ULDC-007 |
