Product Description

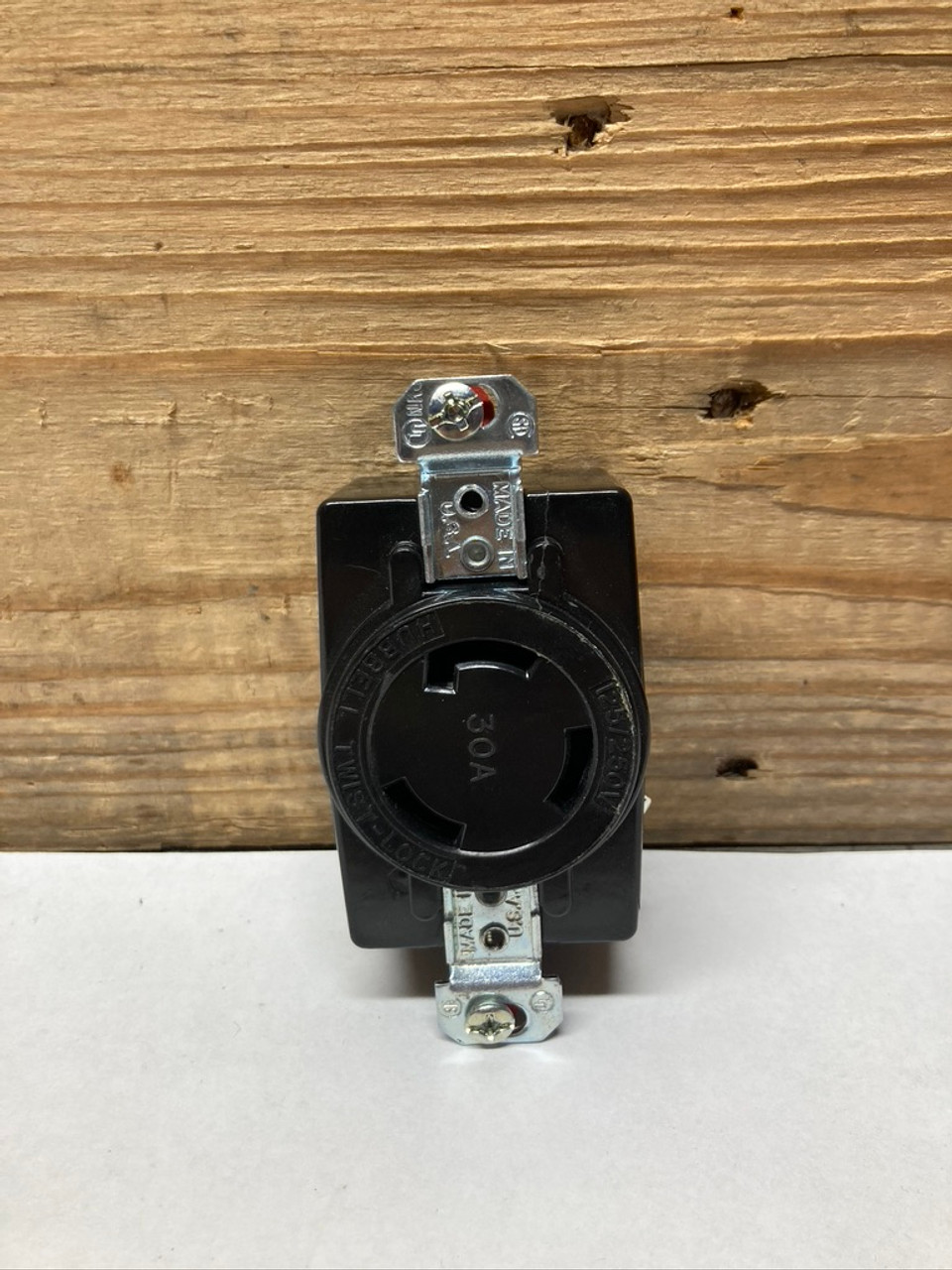

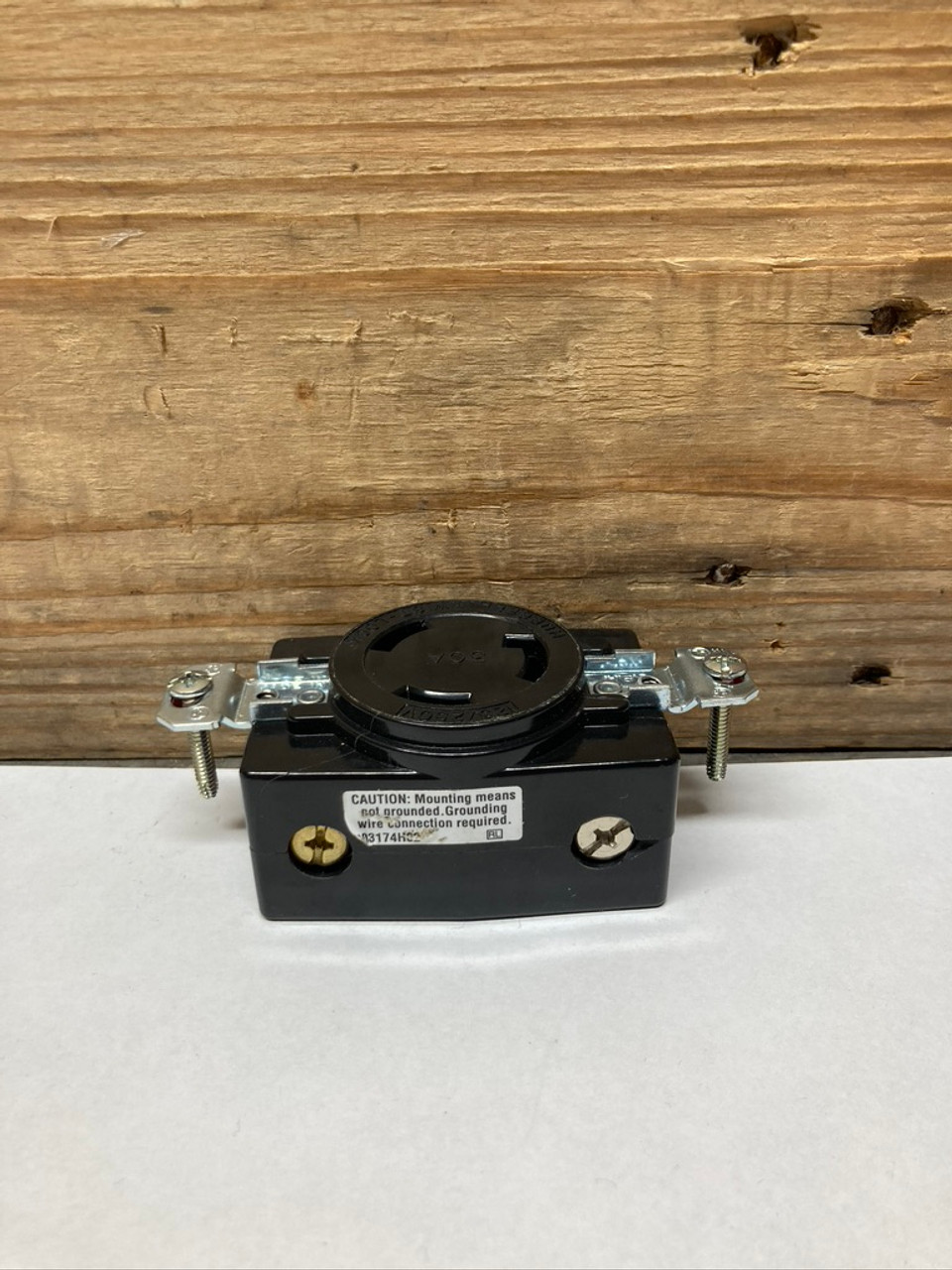

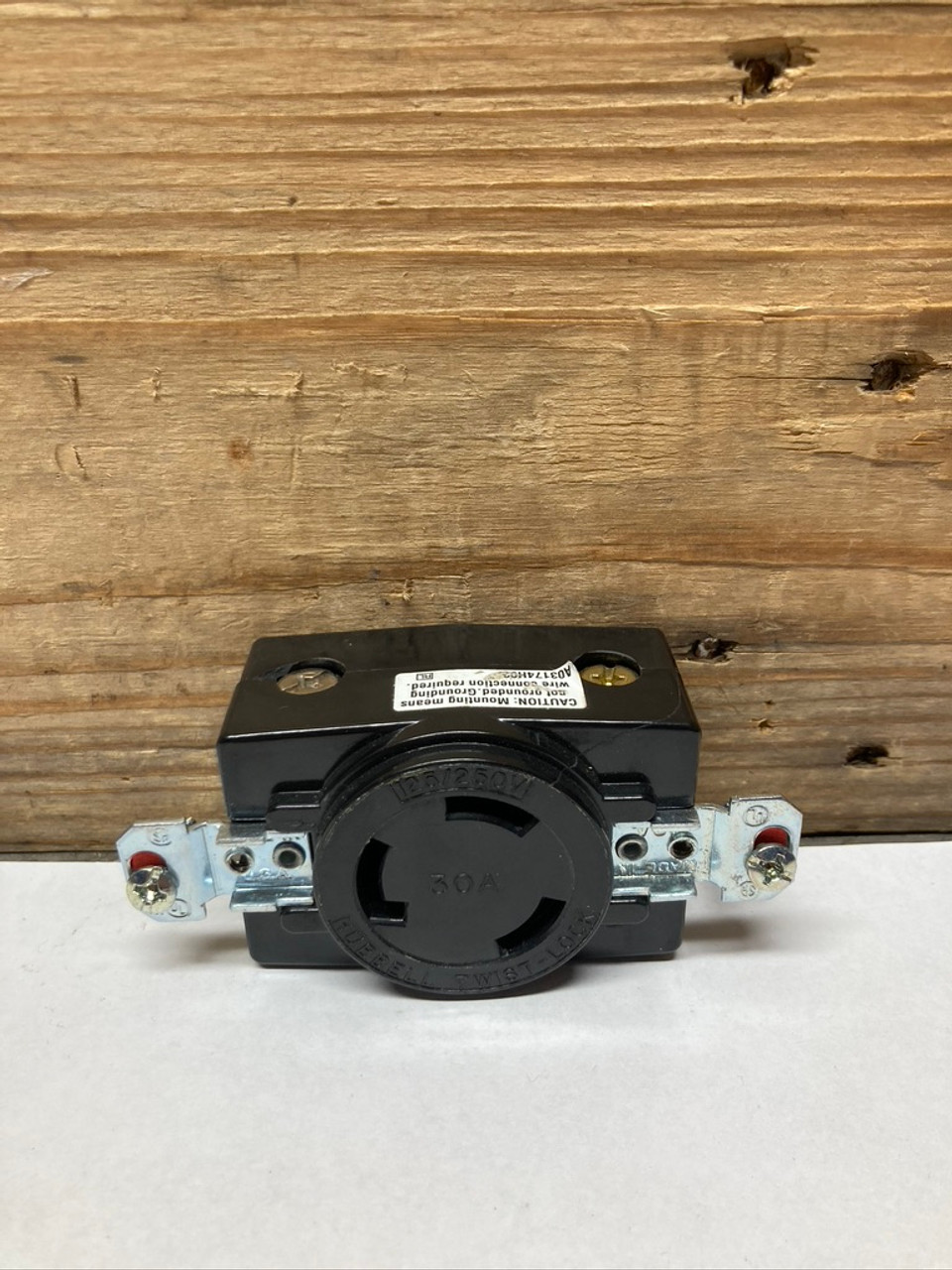

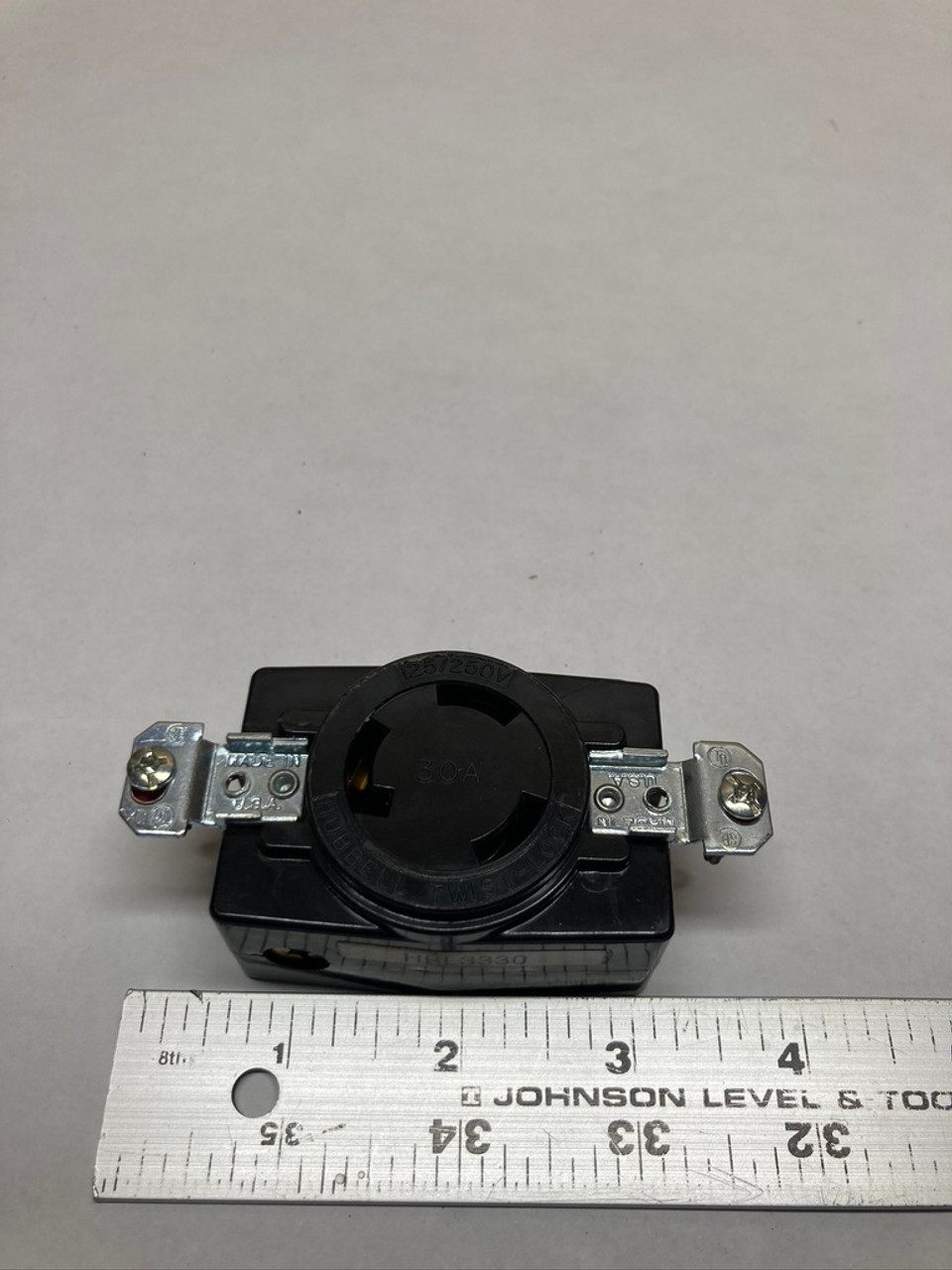

Up for sale is a Locking Flush Receptacle manufactured by Hubbell. Item is in new old stock condition without original packaging. Has minor surface imperfections from age.
Locking Devices, Twist-Lock®,
Industrial, Flush Receptacle, 30A 125/250V, 3-Pole 3-Wire Non Grounding,
Non-NEMA, Screw Terminal, Black.
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Z-142
