Product Description

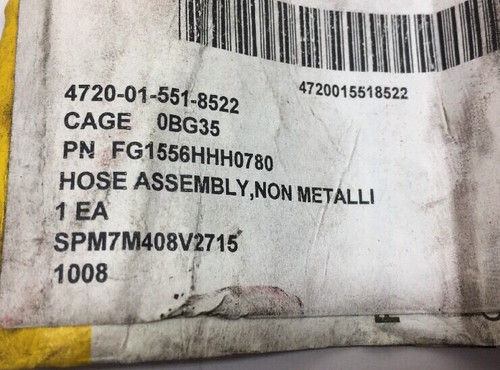

Up or sale is a new nonmetallic hose assembly.Â
| AAGR | Cross-Sectional Shape Style | Round |
| AARX | Inside Diameter | 1.250 inches nominal |
| ABJH | Temp Rating | -65.0 deg fahrenheit and 250.0 deg fahrenheit single response |
| ABKU | Flange Thickness | 0.495 inches nominal 1ST end |
| ABKU | Flange Thickness | 0.495 inches nominal 2ND end |
| ABKV | Outside Diameter | 1.812 inches nominal |
| ACKH | Minimum Inside Bending Radius | 16.000 inches |
| ADKX | Angle Between Rigid Elbow Fittings in DEG | 90.0 |
| AEPR | Flange Outside Diameter | 2.000 inches nominal 1ST end |
| AEPR | Flange Outside Diameter | 2.000 inches nominal 2ND end |
| AHNC | Connection Style | Plain W/ gasket groove (sae flanged head) 2ND end |
| AHNC | Connection Style | Plain W/ gasket groove (sae flanged head) 1ST end |
| AKUT | End Flange Construction | Solid 1ST end |
| AKUT | End Flange Construction | Solid 2ND end |
| AKUU | End Connection Design | Elbow 1ST end |
| AKUU | End Connection Design | Elbow 2ND end |
| AWLS | Connection Type | Plain face flange 1ST end |
| AWLS | Connection Type | Plain face flange 2ND end |
| CQBD | Burst Test Pressure | 2500.0 pounds per square inch |
| CQCS | Layer Composition and Location | 1ST layer braided corrosion resistant steel wire and outer layer molded rubber, synthetic |
| CQGM | Maximum Operating Pressure | 625.0 pounds per square inch |
| CRFY | Flow Angle | 30.0 degrees 1ST end |
| CRFY | Flow Angle | 90.0 degrees 2ND end |
| CRJM | Outer Covering Environmental Protection | Abrasion resistant and ozone resistant |
| CRWL | Inside Surface Condition | Smooth |
| CRXX | Measuring Method and Length | 138.000 inches nominal overall |
| CTCJ | Flange Style | Round W/ out bolt holes 1ST end |
| CTCJ | Flange Style | Round W/ out bolt holes 2ND end |
Vehicle fit:
| 28 | A | Vehicle, Recovery M-88 Series |
