Product Description

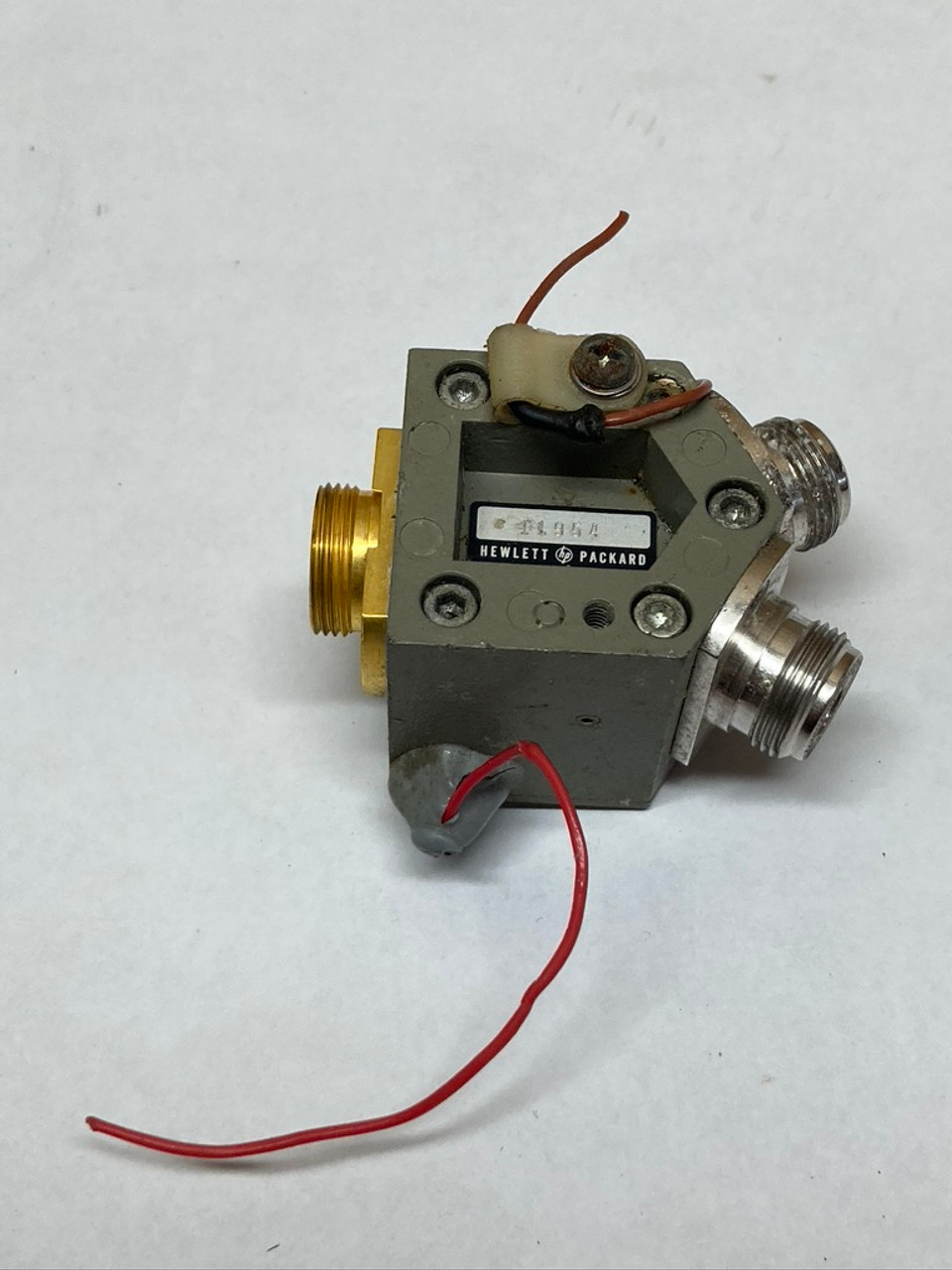

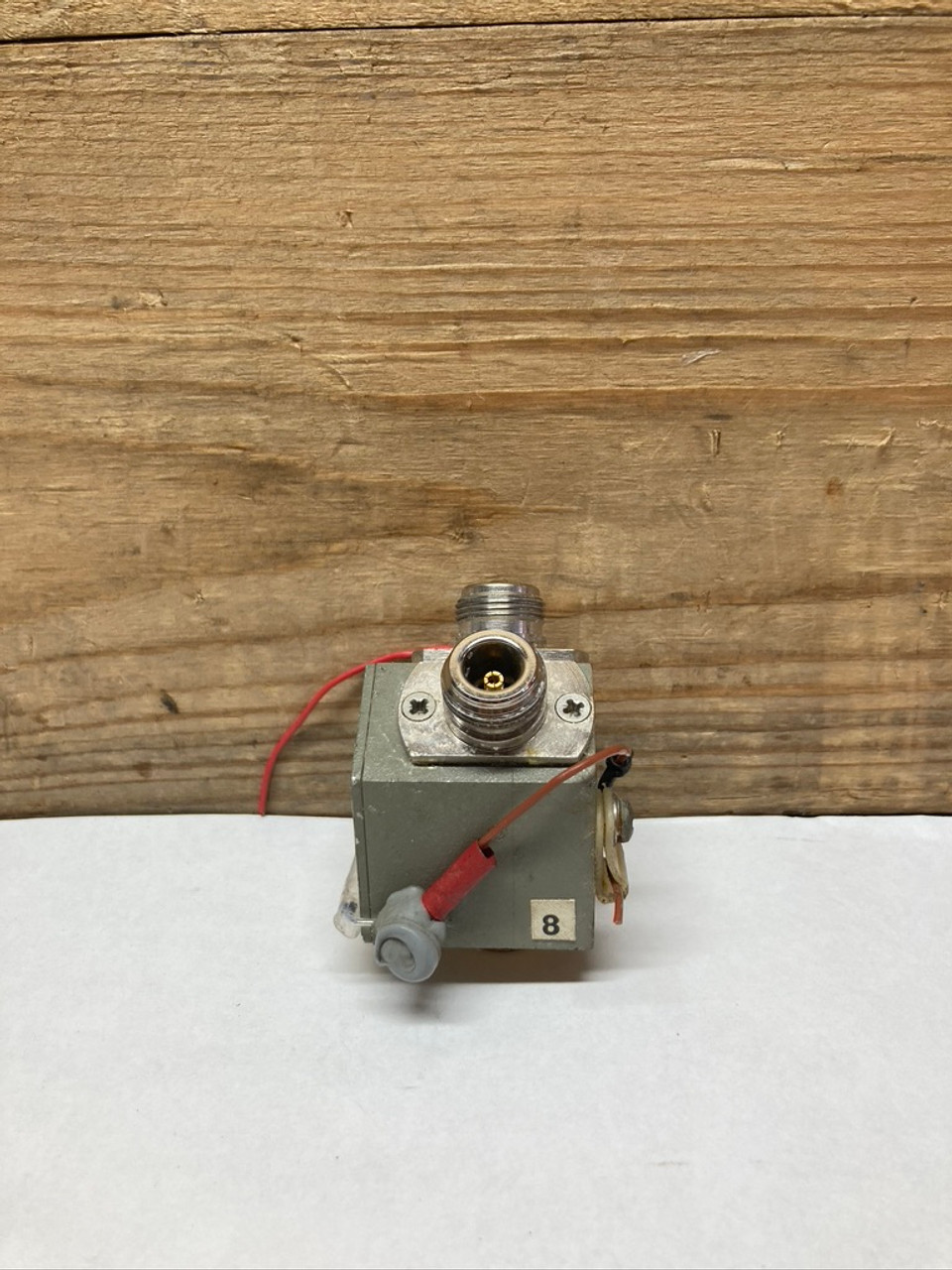

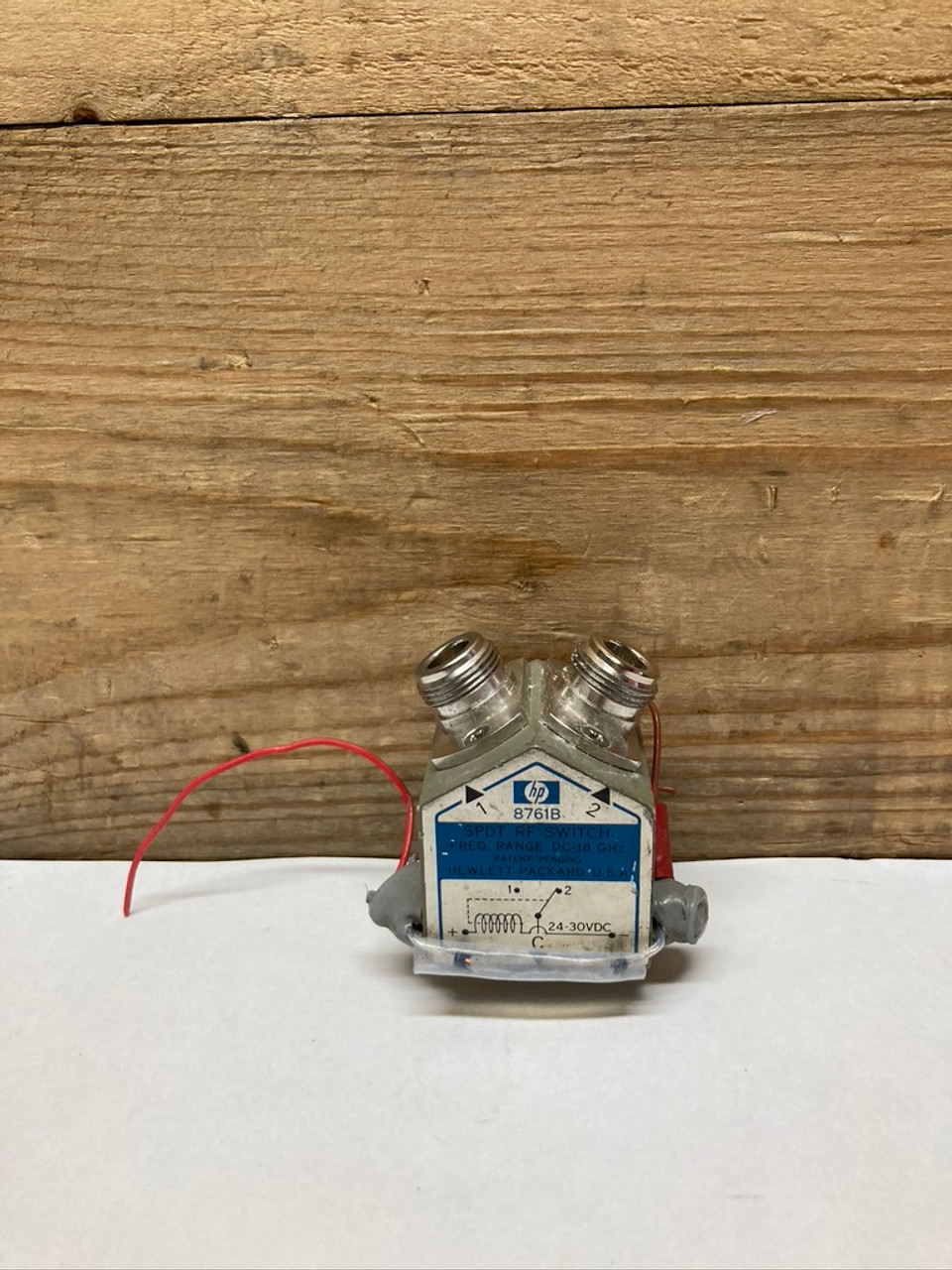

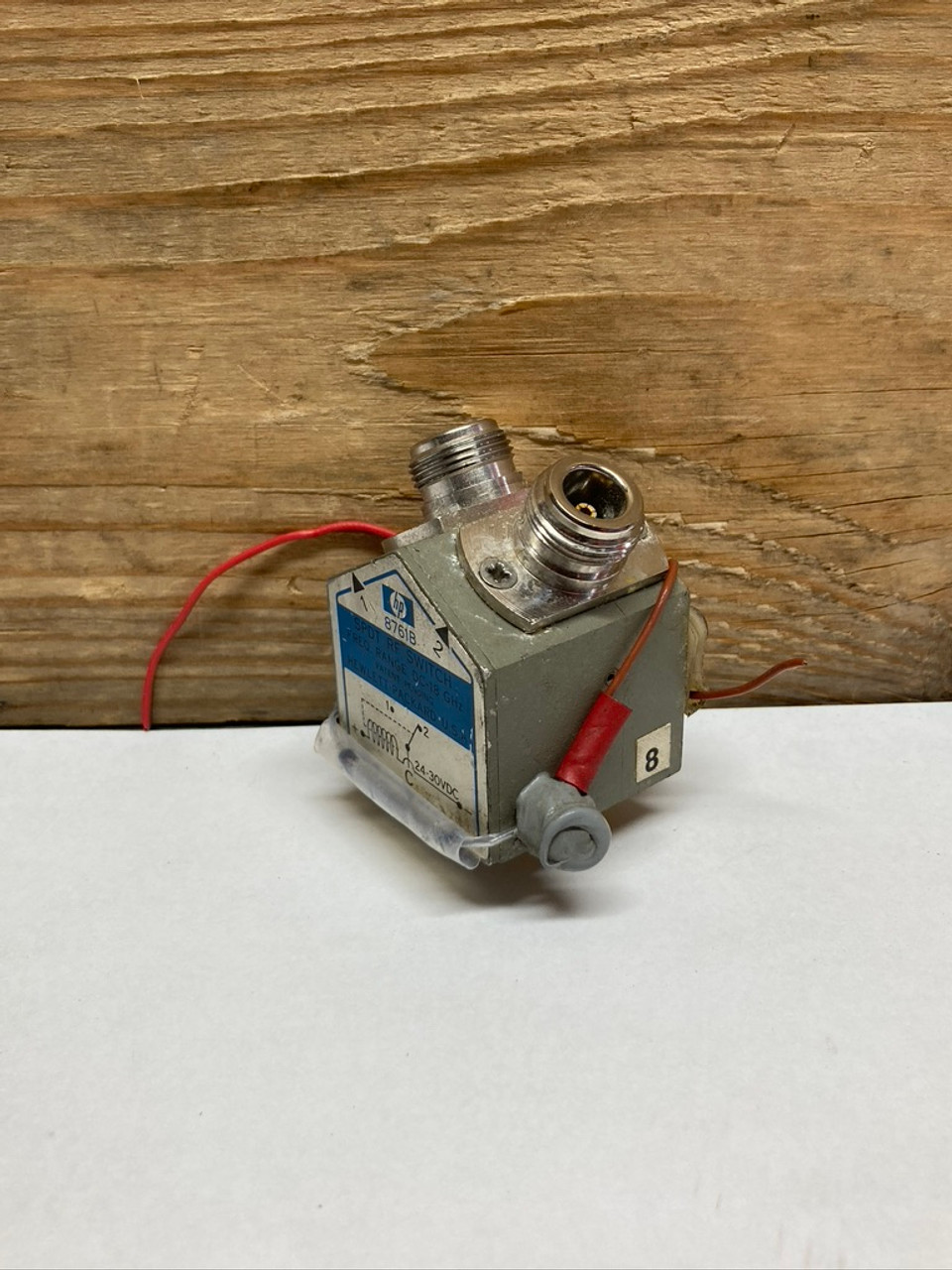

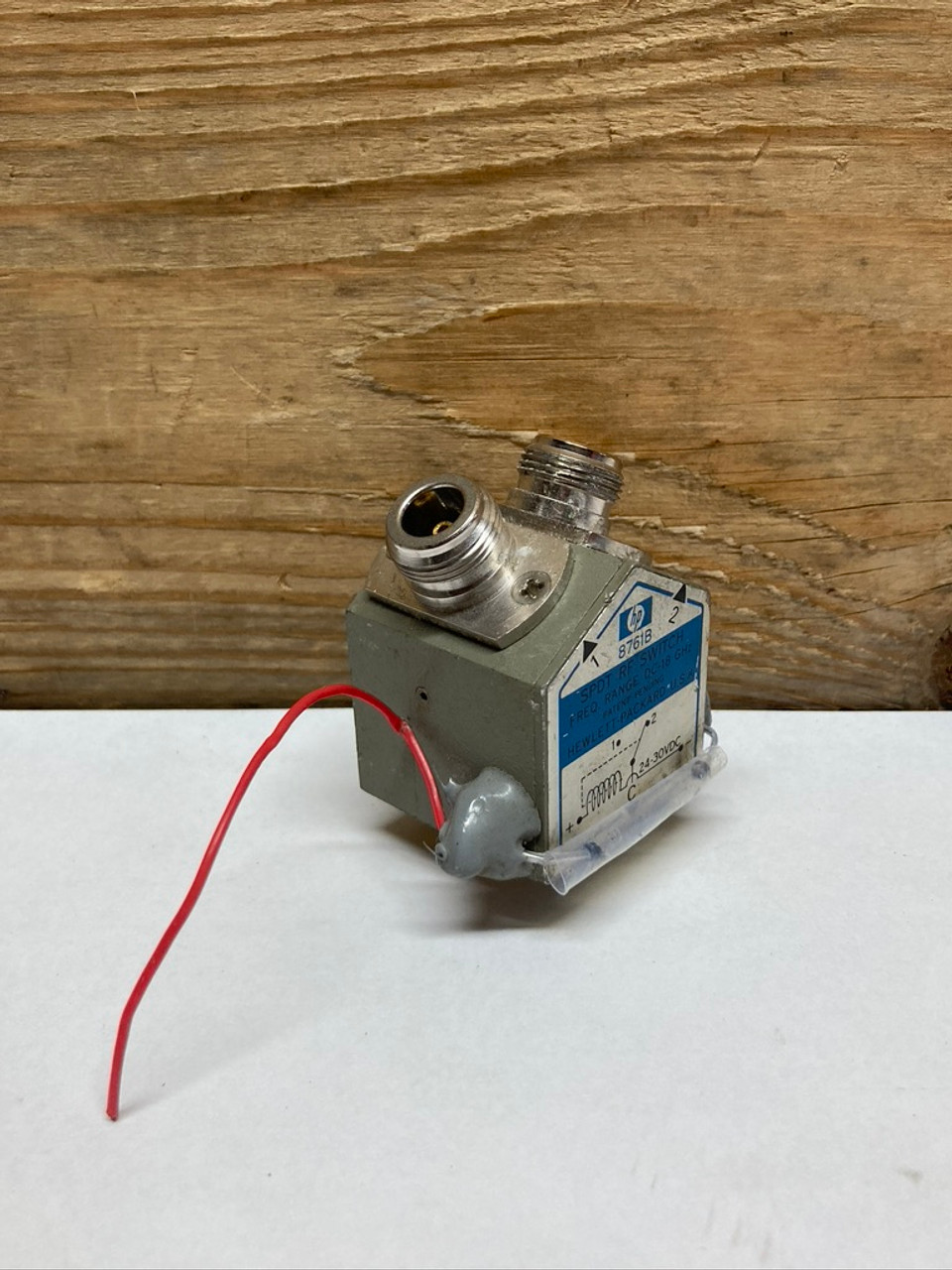

Up for sale is a SPDT RF Switch manufactured by HP. Item is in used condition, has been removed from working equipment. Item has normal wear and tear from being previously used and being in storage.
Overview
The HP 8761B is a single-pole, double-throw coaxial switch with excellent electrical and mechanical characteristics for 50-ohm transmission systems operating from DC to 18 GHz. It features broadband operation, long life, low SWR, excellent repeatability, and magnetic latching solenoids. The HP 8761B switch is small and lightweight, making it ideal for applications where space is limited. Because of its versatility and excellent electrical performance, it is well suited for automated testing and systems applications.
HIGHLIGHTS
Type
- User-specified connectors (over 250 possible combinations)
- Unterminated
- Break-before-make
Excellent RF repeatability & long life span
- RF repeatability of 0.03 dB typical
- Guaranteed performance up to 1 million cycles
Superior RF performance
- Insertion loss: < 0.5 dB to 12.4 GHz, < 0.8 dB to 18 GHz
- Isolation: > 50 dB to 12.4 GHz, > 45 dB to 18 GHz
