Product Description

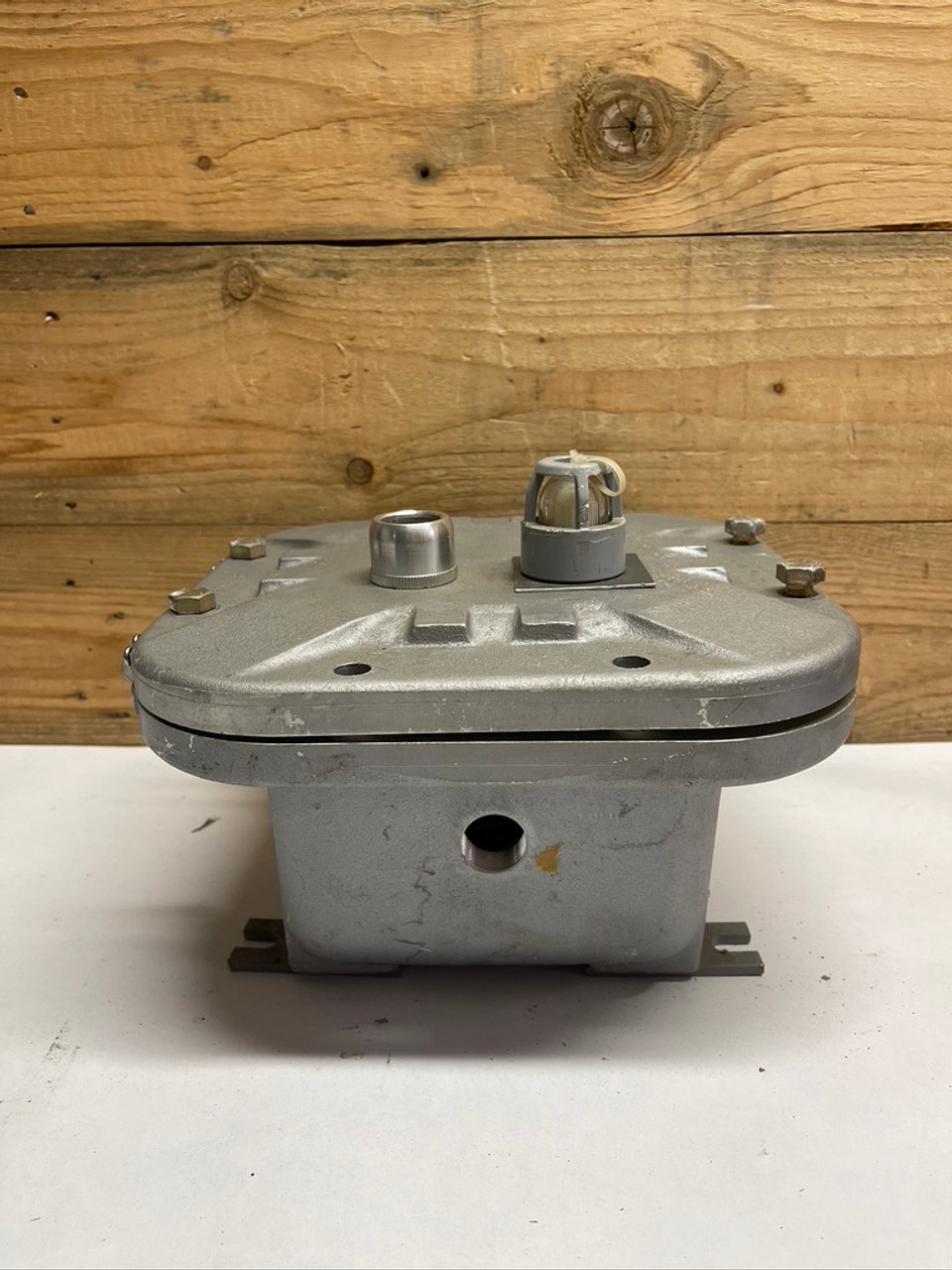

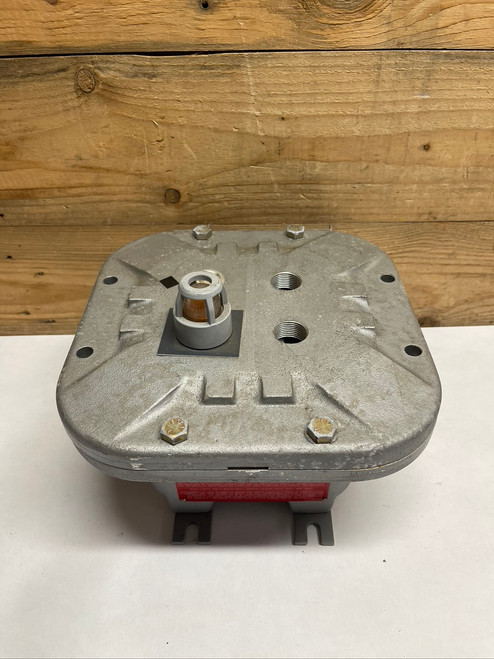

Up for sale is an Explosion Proof Enclosure manufactured by Killark. Item appears to be in new old stock condition without original packaging. The lid comes off due to missing the hinges. Item shows signs of shelf wear due to being in storage for a long period of time.Â
Technical Description:
10.32 Inch W X 6.09 Inch D X 10.32 Inch H Overall Size; 5.73 Inch W X 4.31 Inch D X 5.73 Inch H Inner Size; 2 Inch Hub Size; UL 698, UL 886, UL 1203, CSA C22.2 Approval; Lug Mounting
| Enclosure: | Â Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Ibis Plus H2 Imia, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/7B/7C/7D/9E/9F/9G |
| Body Material: | Â Copper Free Cast Aluminum |
| Body Finish: | Â Aluminum Lacquer Painted |
| Cover Material: | Â Aluminum with Stainless Steel |
| Mounting: | Â Lug |
| Approval: | Â UL 698, UL 886, UL 1203, CSA C22.2 |
| Catalog Number: | Â EXB-664 N34 |
| Brand Name: | Â QUANTUM[R] |
| Model: | Â EXB |
| Hub Size: | Â 2 Inch |
| Hub Location: | Â Back, Side |
| Overall Size: | Â 10.32 Inch W x 6.09 Inch D x 10.32 Inch H |
| Inner Size: | Â 5.73 Inch W x 4.31 Inch D x 5.73 Inch H |
| Cover Type: | Â Bolt-On |
| CATALOG DESCRIPTION: | Â EXB SERIES, 6 X 6 X 4, CLASS I, II, III, BCDEFG, CAST ALUMINUM, TYPE 4, BOLTED ENCLOSURE. |
| Category: | Â Nema Type 9 Metallic Enclosures, Boxes, Cabinets |
