Product Description

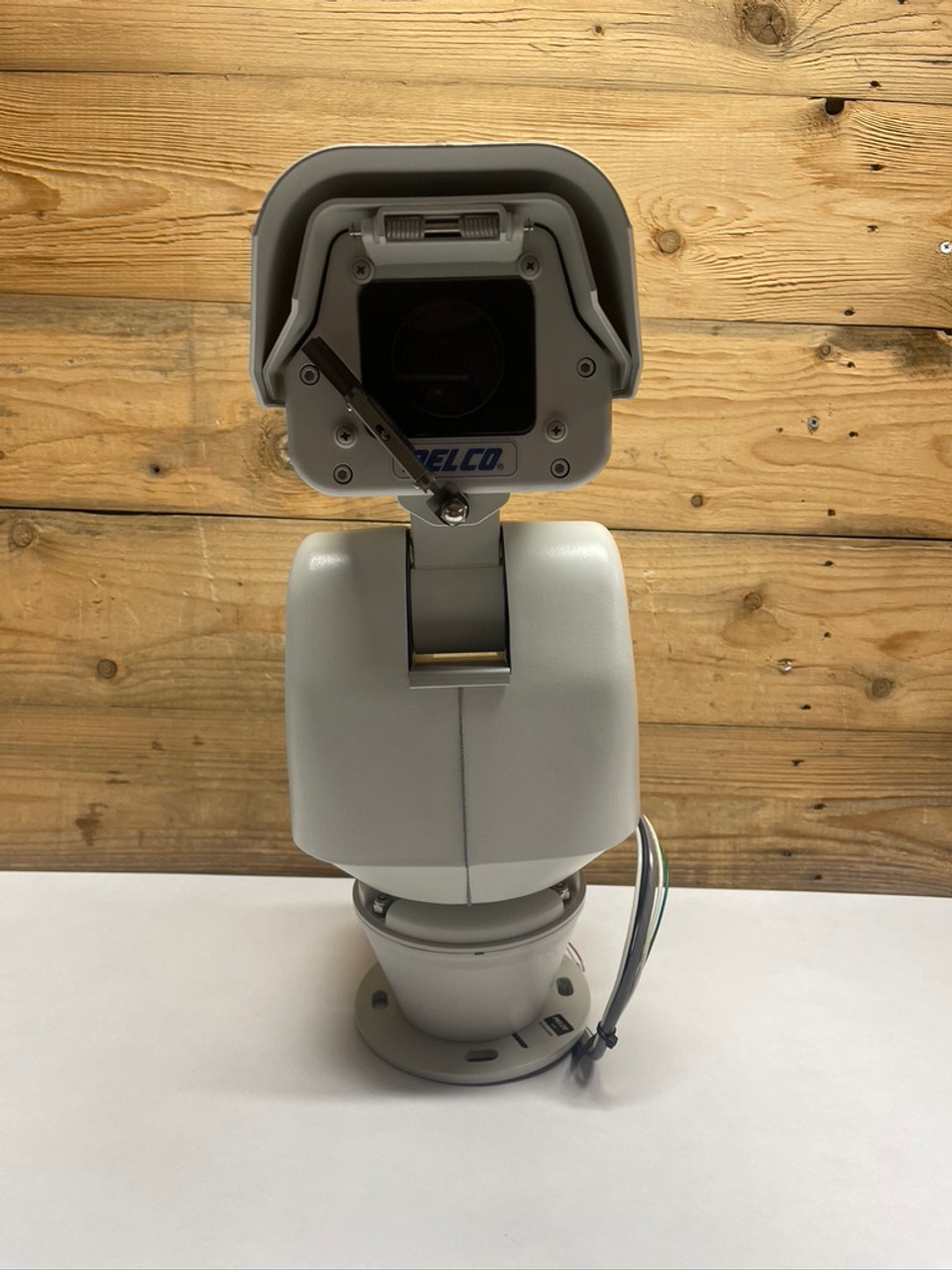

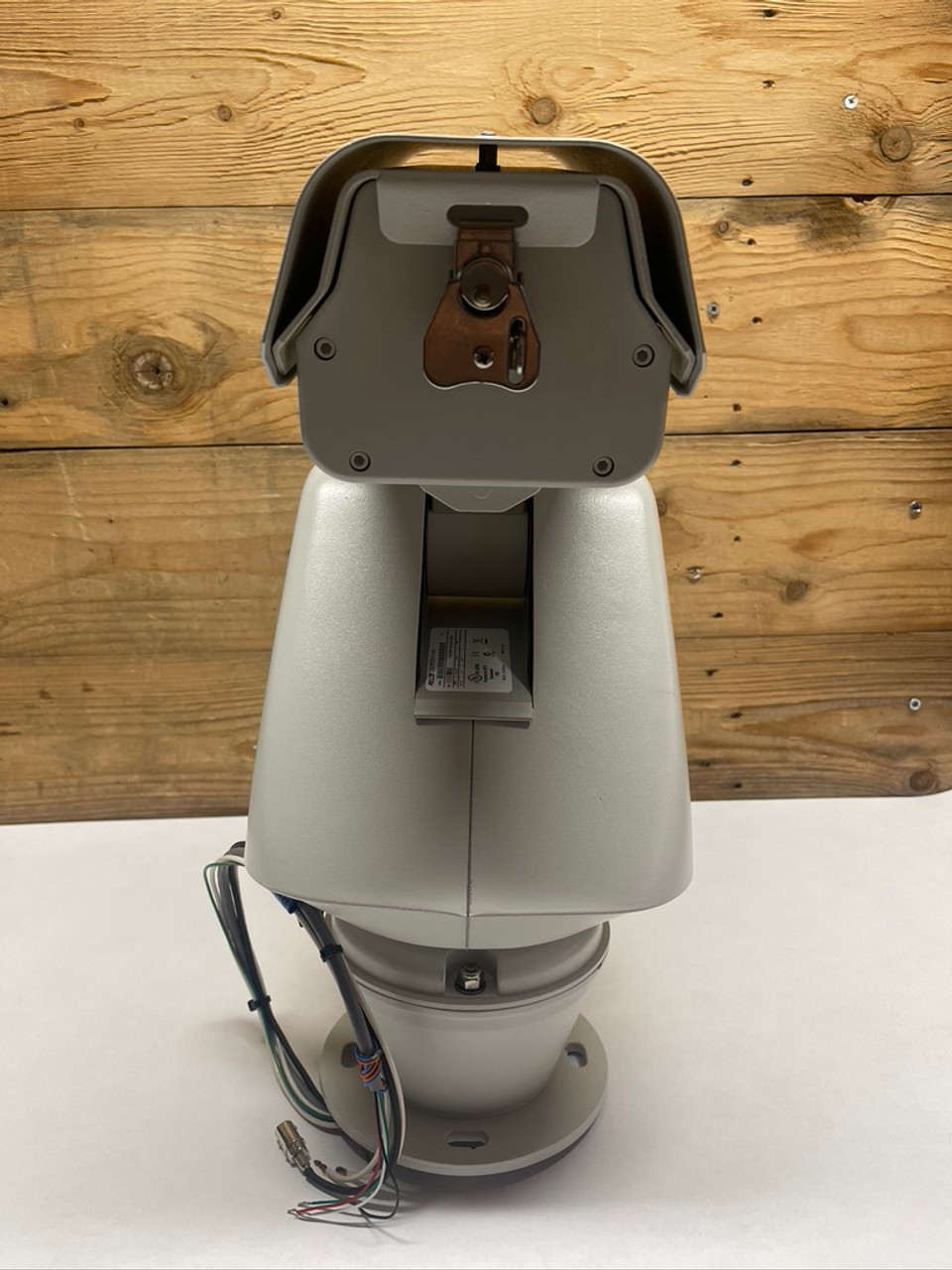

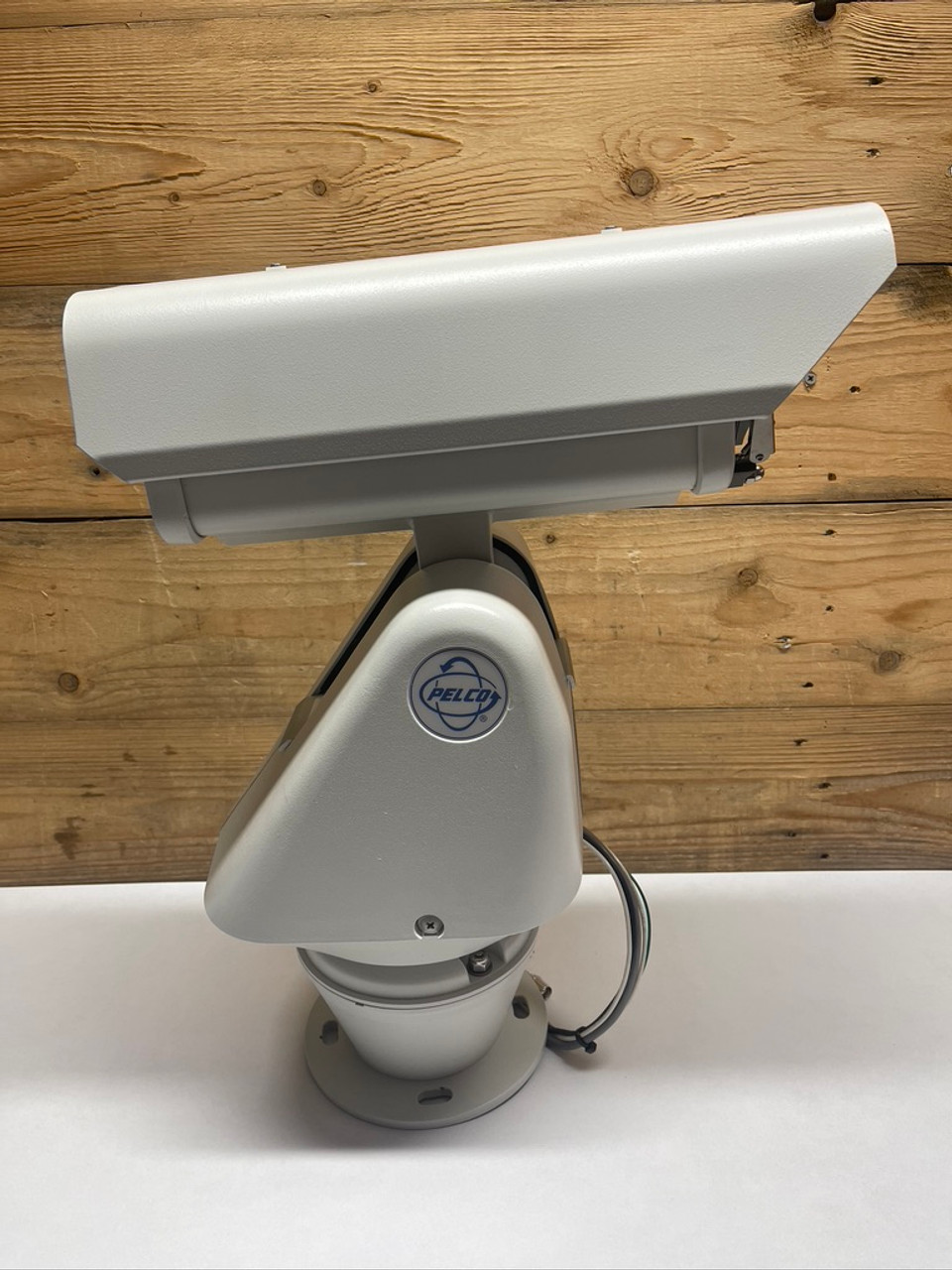

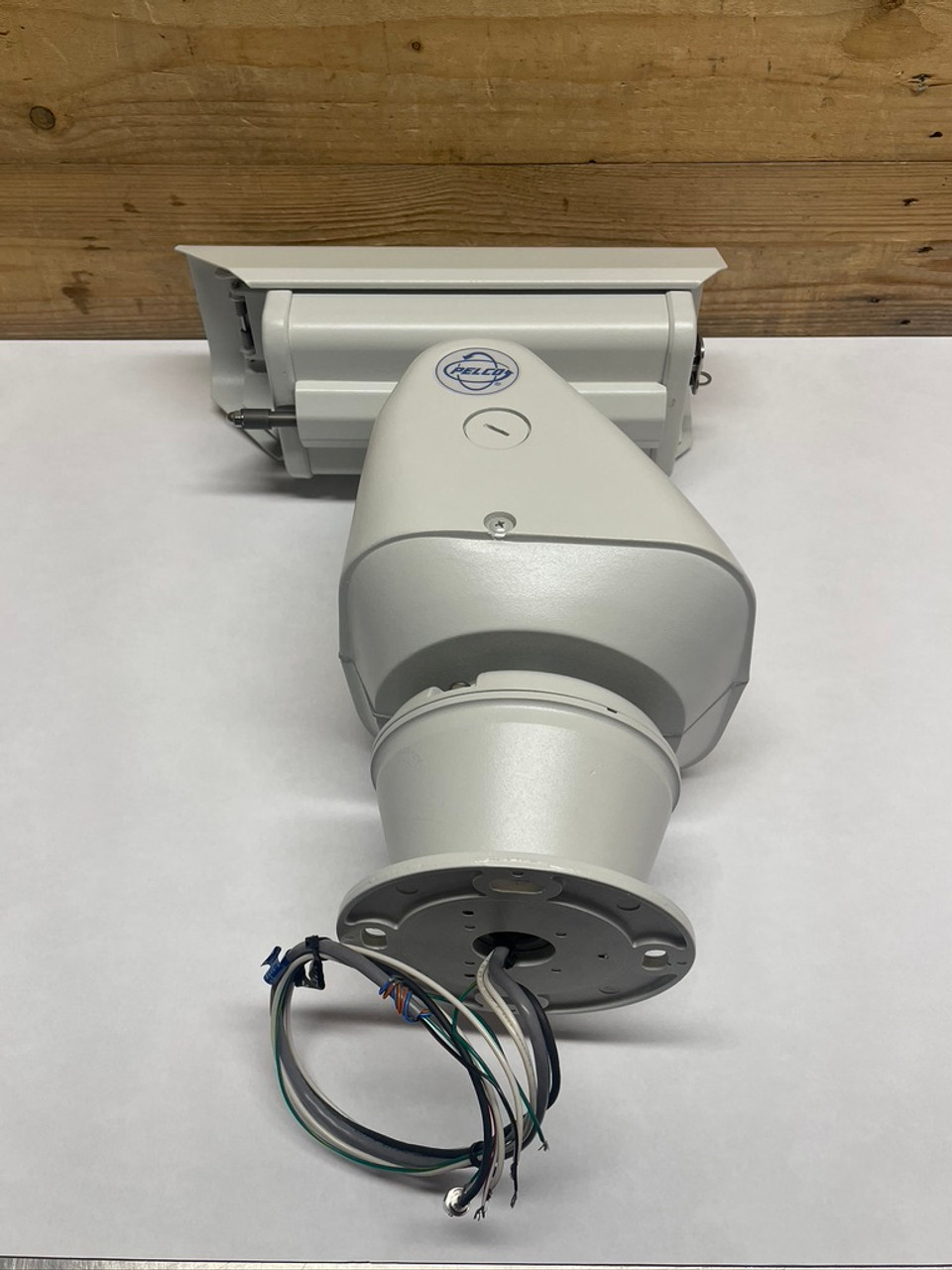

Up for sale is an Esprit PTZ CCTV Camera with Pressurized IOP and Wiper manufactured by by Pelco. Item is in new old stock condition, packaging shows signs of shelf wear due to transport and being in storage for a long period of time. The camera hookups are 24VAC power (AC Line, AC Neutral, Ground), Coaxitron/RS-422 for controlling and BNC for video output. Only what is pictured is included.
We were able to hook up the camera by using a 24VAC power supply and connecting the BNC video cable to a monitor. We did not test the PTZ functionality as we do not have the necessary connections.Â

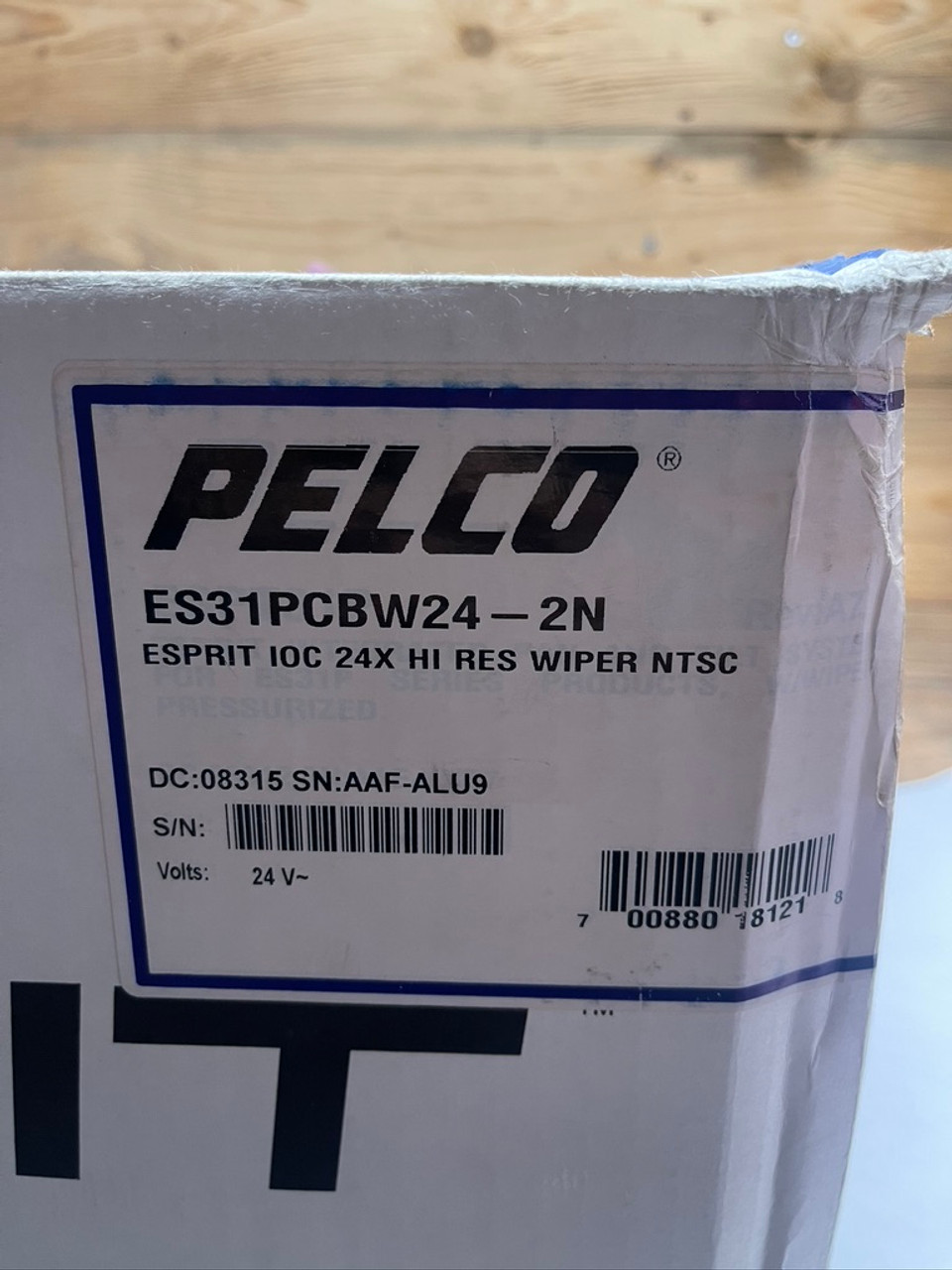

Pelco ES31PCBW24-2N Overview
The Pelco ES31PCBW24-2N is an Esprit Positioning system. This system is made of powder-coated aluminum, which makes it suitable for indoor and outdoor applications. The ES31PCBW24-2N integrates a receiver, pan/tilt, enclosure and Integrated Optic Package (IOP) in one easy-to-install system. The IOP incorporates an auto focus camera and lens module with programmable features.
Designed for minimal maintenance, this system also includes features such as patterns, multiple scan mode, and programmable preset positions. With power-up recovery mode, you can have the camera resume a specific operation following a power failure.
The variable pan/tilt speeds of the enclosure ranges from 0.1 to 40 degrees per second in manual pan mode whereas in manual tilt mode, it ranges from 0.1 to 20 degrees per second. The Esprit system comes with 360 degrees of continuous pan rotation capabilities. The tilt range enables horizontal viewing between +33 and -83 degrees.
- Pedestal Adapter Plate
- 24 VAC
- 520 TVL
- 24x Optical Zoom
- Day/Night
- Heater/Defroster
- Preset Positioning, Patterns
- Multiple Scan Modes
6-2-2
