Product Description

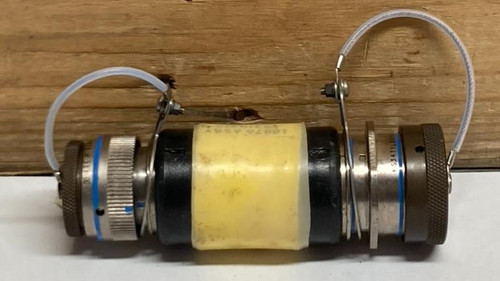

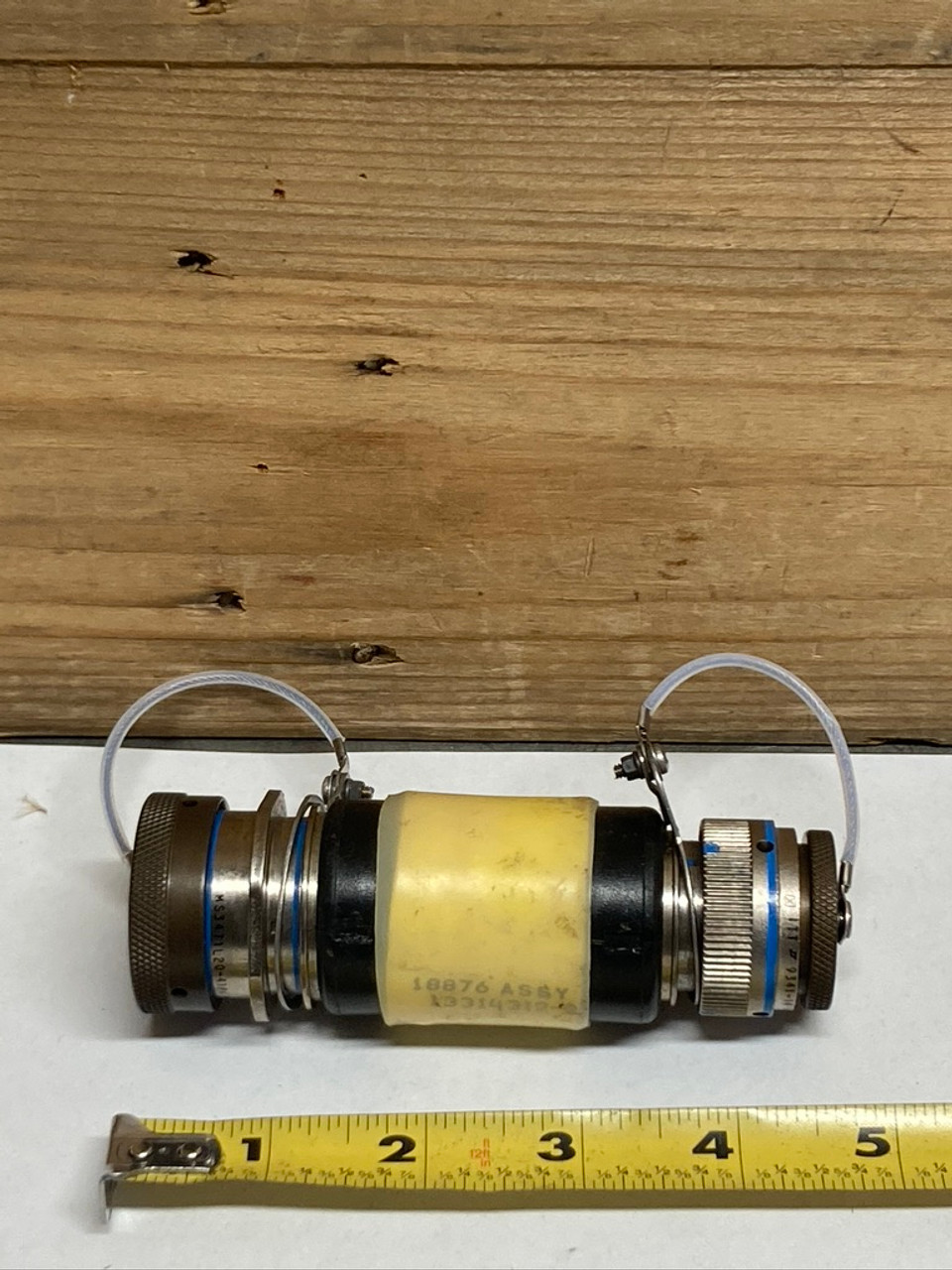

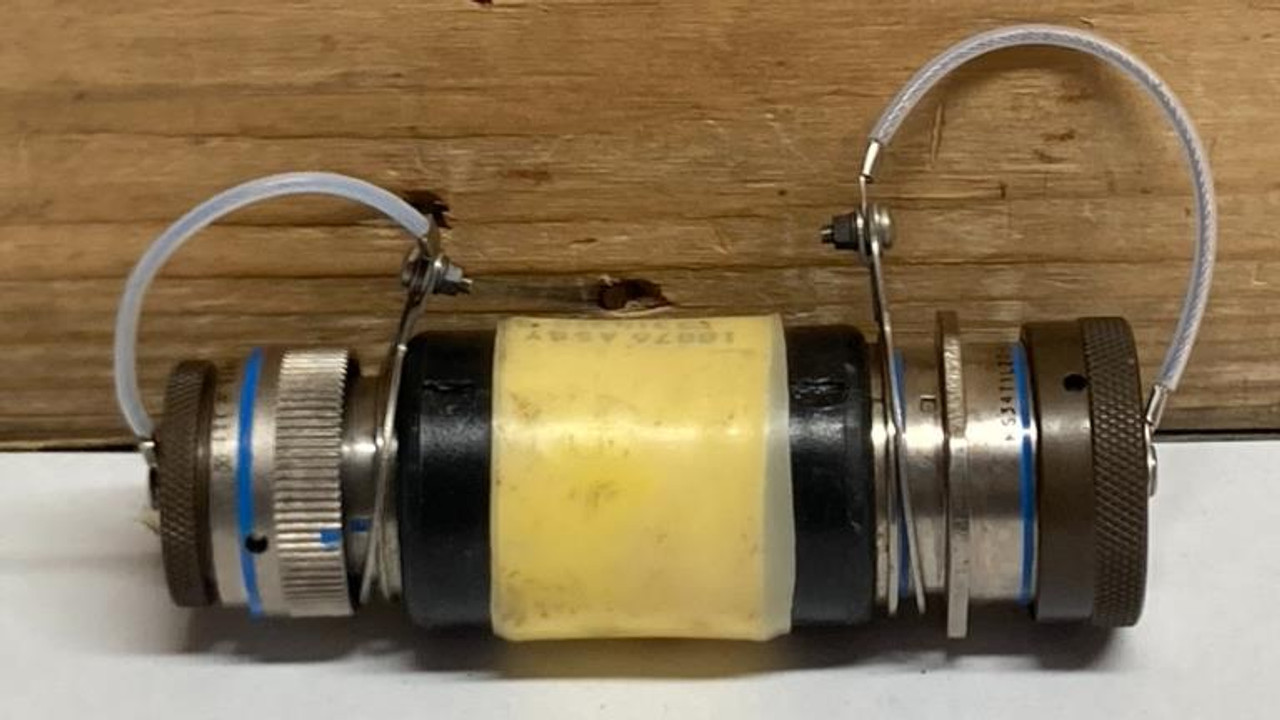

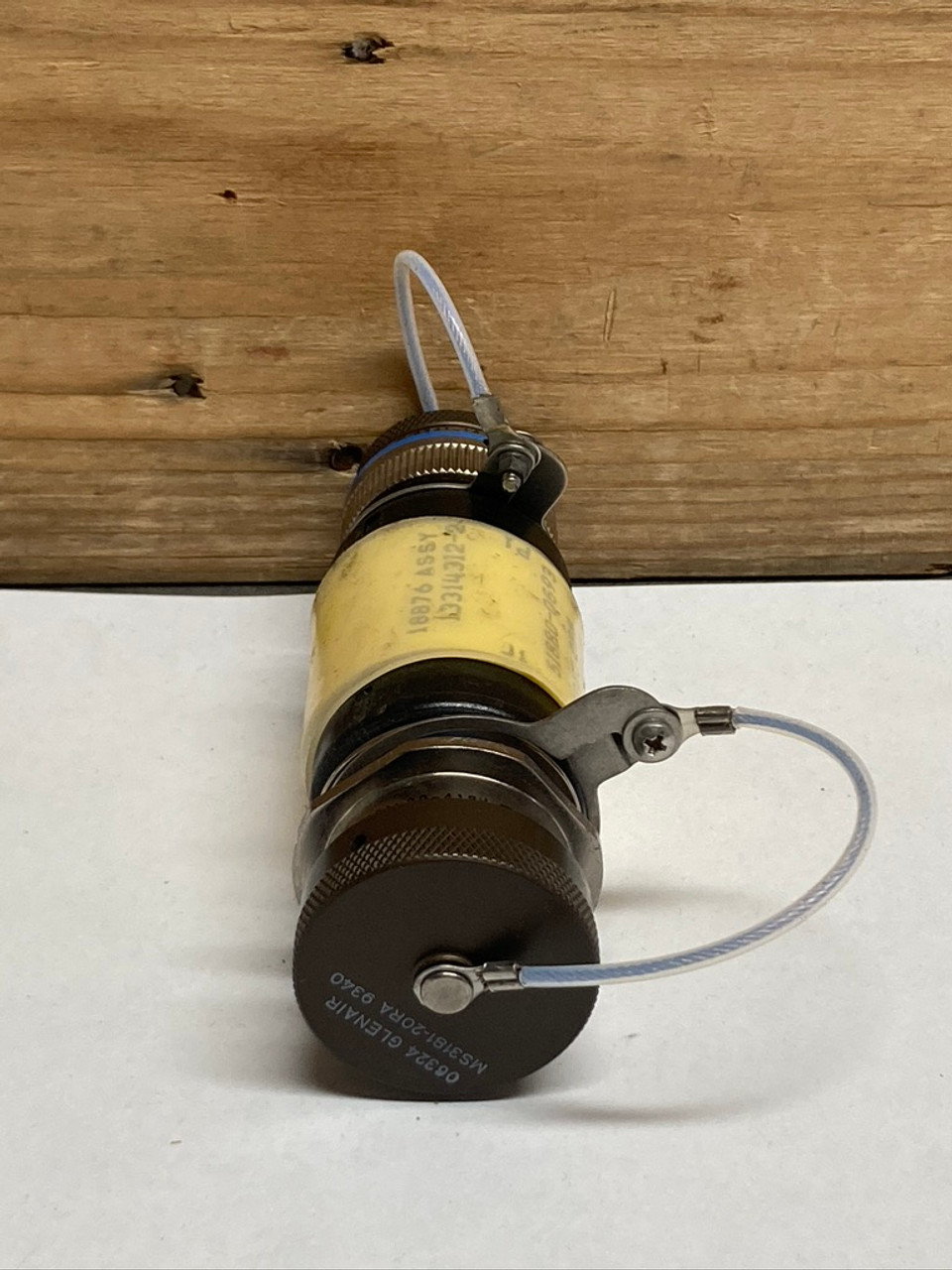

Up for sale is an electrical plug connector that is manufactured by Bendix. Item listed is new without the original packaging.
Additional Features:
| ADAV | Overall Diameter | 1.305 inches maximum |
| ADZC | Environmental Protection | Moisture resistant and vibration resistant and salt water resistant |
| AFQR | Threaded Device Type | Back shell |
| AFQW | Mating End Quantity | 1 |
| AFQX | Contact Position Arrangement Style | 16-26 single mating end |
| AFQZ | Contact Removability | Removable single mating end single contact grouping |
| AFRD | Contact Maximum AC Voltage Rating in Volts | 600.0 single mating end single contact grouping |
| AFRN | Polarization Method | Keyway or multiple keyway |
| AFRP | Insert Position in DEG | 300.0 |
| AFRT | Shell Type | Solid |
| AFRV | Connector Locking Method | Bayonet latch |
| AKMG | Nominal Thread Length | 0.290 inches |
| CQJX | Nominal Thread Size | 1.000 inches |
| CQTM | Terminal Location | Back single mating end single contact grouping |
| CQYH | Contact Surface Treatment | Gold single mating end single contact grouping and nickel single mating end single contact grouping |
| CSCF | Terminal Type | Crimp single mating end single contact grouping |
| CSPT | Shell Material | Aluminum alloy 6061 |
| CTHH | Shell Material Document and Classification | QQ-A-367, T6 fed spec single material response |
| CXCG | Included Contact Quantity | 26 single mating end single contact grouping |
| CXCL | Included Contact Type | Round socket single mating end single contact grouping |
| PMLC | Precious Material and Location | Contact surfaces gold |
| PMWT | Precious Material and Weight | 0.026 gold grains, troy |
| PRMT | Precious Material | GOLD |
Components:
| 25 | F | Aircraft, Awacs, E-3A |
| FH | F | Milstar System |
