Product Description

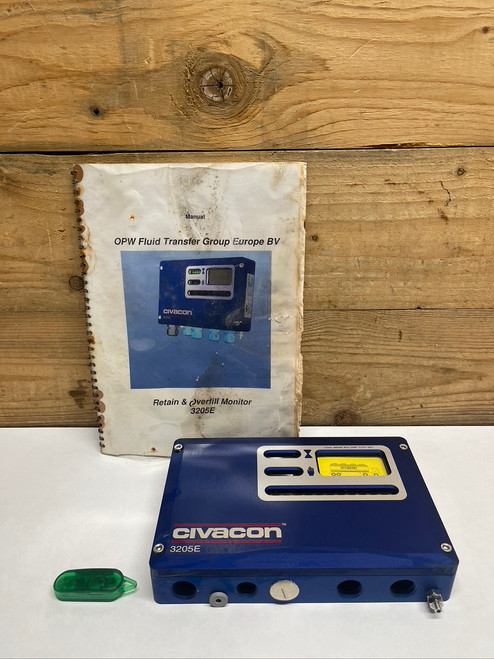

Up for sale is a Retain Overfill Monitor manufactured by Civacon. Item appears to be in new old stock condition, however monitor came out of its original packaging in transport so has minor surface imperfections. There appears to be some marks on monitor from the packaging. The manual appears to have gotten wet at some point. Includes only what is pictured.Â

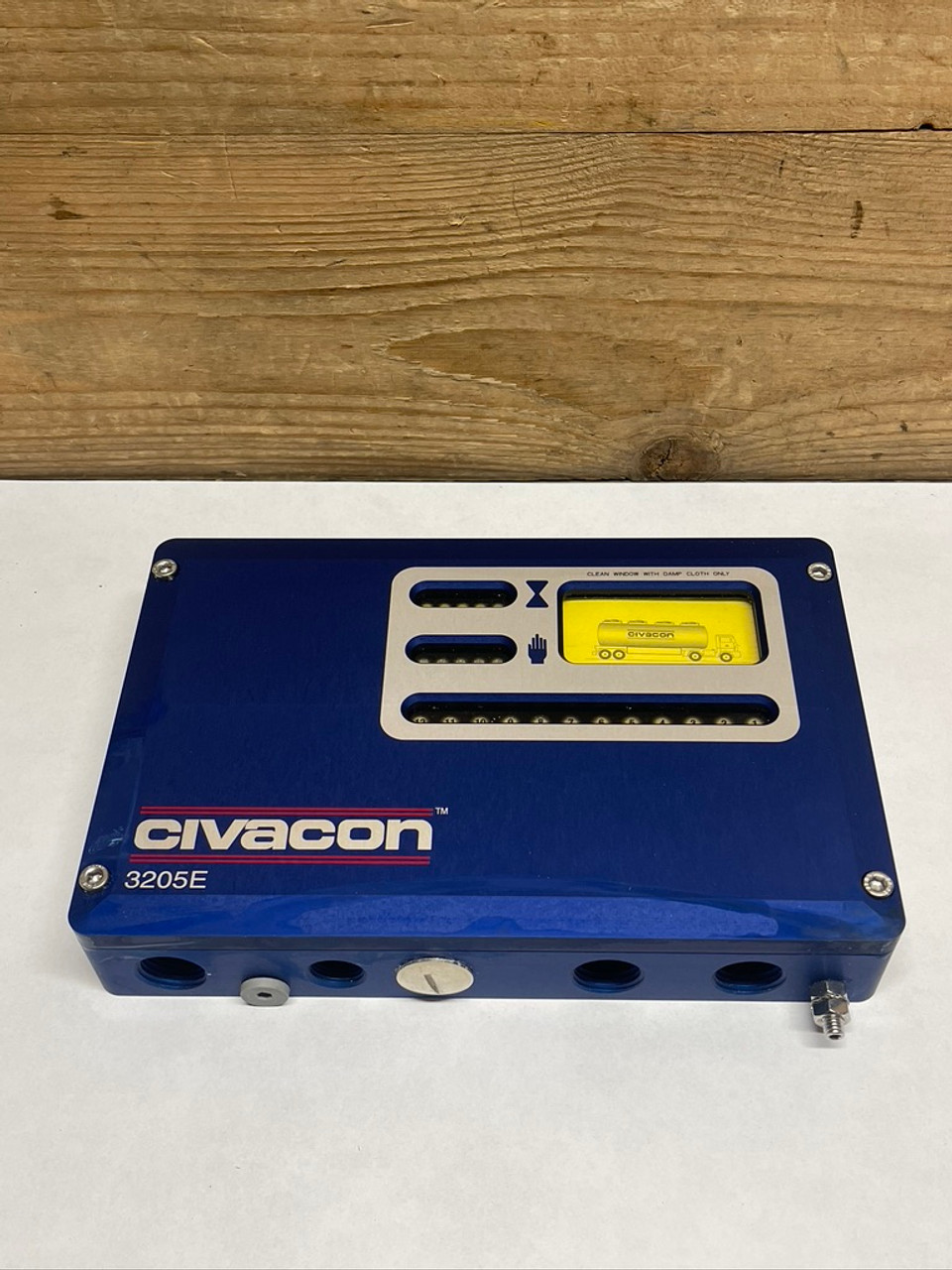

OPW Model 3205E ROM (Retain Overfill Monitoring) monitor secondary overfill prevention system incorporating retained product monitoring used in tank truck loading operations. ROM indicates wet/dry conditions, wire short cuts, grounding conditions and shorted sensors by means of advanced by means of LED and separate display.
- In accordance with ATEX
- Compartment empty and overfill detection inn one unit
- Compatible with all industry standard sensors and rack monitors
- After system alerts, loading cannot proceed without activation of the reset circuit
- Reset circuit for bottom sensors only
- Bottom retain sensor override timer cancels override timing when plug is removed from socket
- ROMII Plus monitor automatically closes bottom valves for additional security if connected.
- Support for up to 8 compartment tankers using 2-wire optic overfill and bottom sensors
- Support for up to 12 compartments using 5-wire optic overfill sensors
- Number of installed sensors automatically configured at installation
- Timer with progress indicator infrared function key
- Individual LED indication per input device

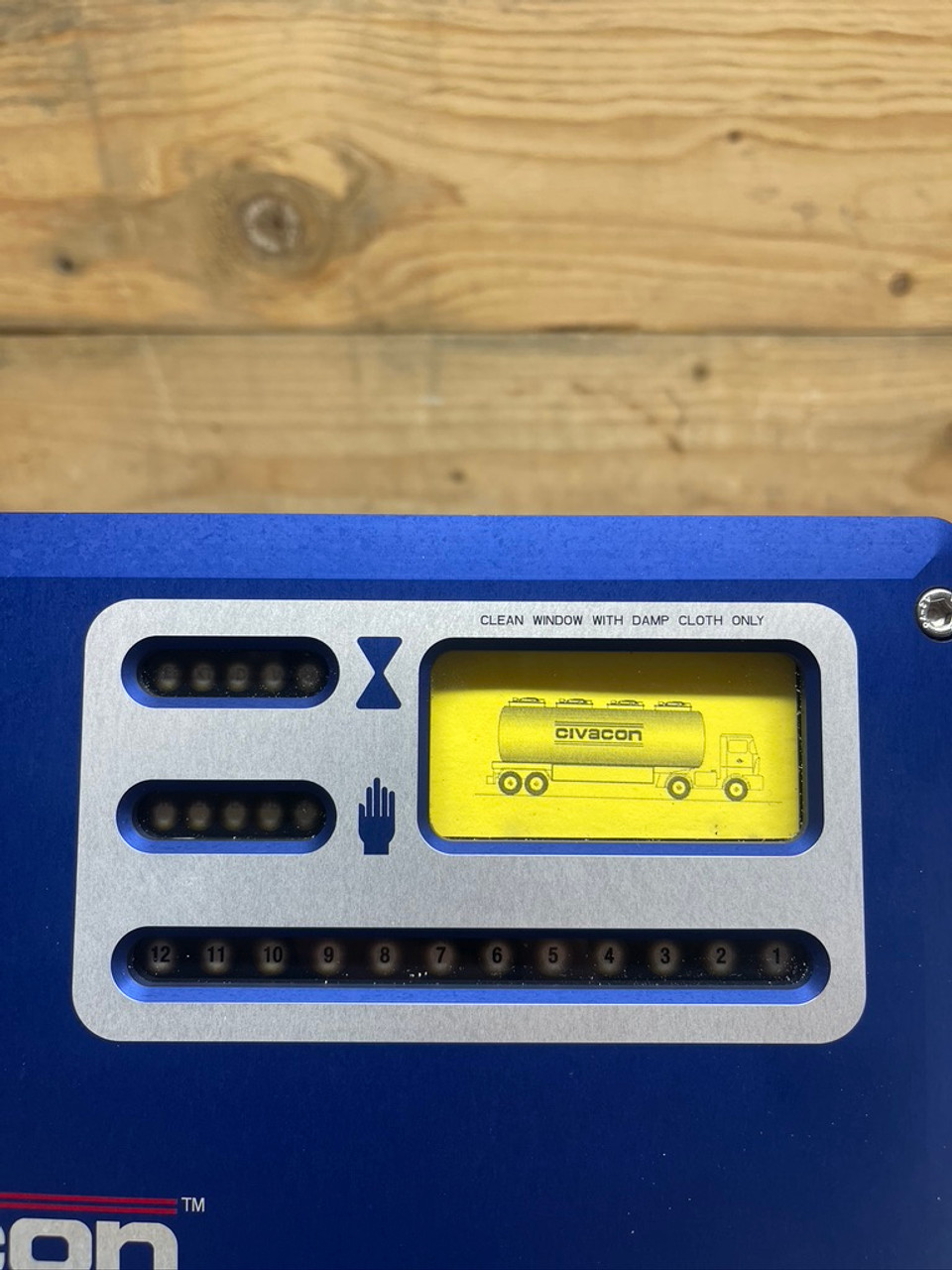

- LED indication per compartment and status symbols on display
- LED socket connection status for proper connection assurance
- Working temperature from -40°C to + 70°C
EC3-2
