Product Description
Dynomax Asynchronous Industrial Motor

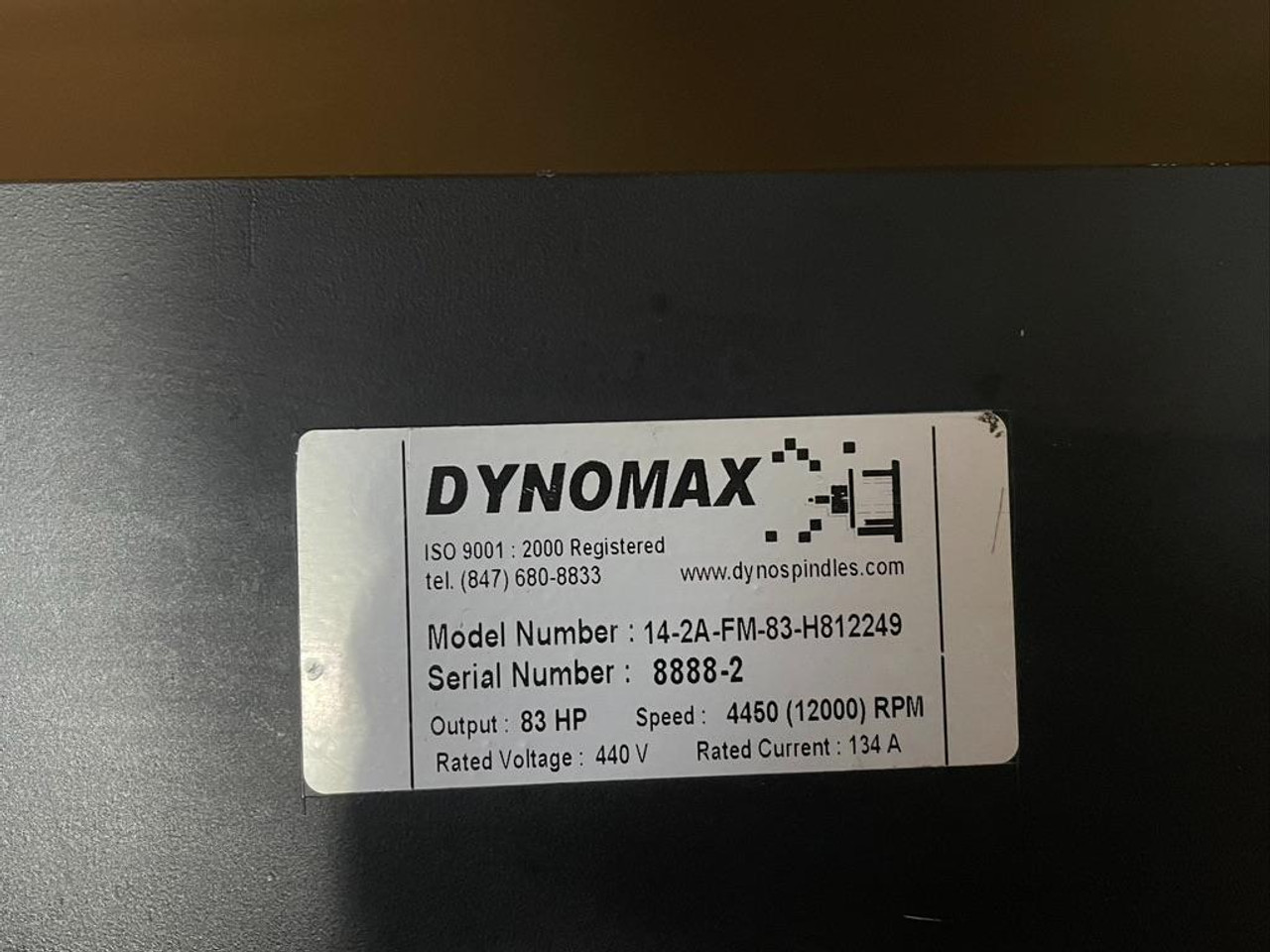

Up for sale is a Dynomax asynchronous motor, model 14-2A-FM-83-H812249.
Manufacturer: Dynomax
Model Number: 14-2A-FM-83-H812249
Output Power: 83 HP
Rated Voltage: 440V
Rated Current: 134A
Speed: 4450 (12000) RPM
Condition:
Item appears to be previously installed industrial equipment. We do not have the capability to fully test this motor and are therefore selling it for parts or repair. Cosmetic wear is present consistent with industrial use and storage.
Includes only what is shown in photos.
Please review all images carefully for overall condition and specifications.
DYNOMAX, Inc.
Asynchronous motor parameter settings
Siemens SIMODRIVE 611
Motor type mW 18/33-8-149f/173fr9 ALKA Data sheet DBL 210209
|
Nummer number |
Parameterbezeichnung parameter description |
Formelz. symbol |
Wert value |
Einheit unit |
Bemerkung remarks |
|
|
MD 1130 |
Nennleistung / rated power |
PN |
59 |
kW |
S1-Betrieb / S1 duty |
|
|
MD 1103 |
Nennstrom / rated current |
IN(1) |
166 |
A |
S1-Betrieb / S1 duty |
|
|
MD 1132 |
Nennspannung / rated voltage |
UN(1) |
310 |
V |
||
|
MD 1400 |
Nenndrehzahl / rated speed |
nN |
3010 |
min-1 |
bei Nennlast / at rated load |
|
|
MD 1134 |
Nennfrequenz / rated frequency |
fN |
206 |
Hz |
||
|
MD 1146 |
Maximaldrehzahl maximum speed |
nmax |
12000 |
min-1 |
Synchrone Drehzahl synchronous speed |
|
|
MD 1129 |
Nennleistungsfaktor / power factor |
cosφ |
0.74 |
|||
|
MD 1117 |
Motorträgheitsmoment moment of inertia of motor |
Jmotor |
0.0604 |
kgm2 |
ohne Welle without shaft |
|
|
Schaltungsart / circuit connection |
Y oder/or D |
Y |
||||
|
MD 1135 |
Leerlaufspannung bei Nennfluss no load voltage |
U0(1) |
294 |
V |
Im Netz on grid |
|
|
MD 1136 |
Leerlaufstrom / no load current |
I0(1) |
95 |
A |
Im Netz / on grid |
|
|
MD 1137 |
Ständerwiderstand kalt (20°) phase stator resistance, cold (20°) |
R1x |
0.0234 |
Ω |
Bei Y-Schaltung: tatsächliche Widerstände Bei D-Schaltung: tatsächliche Widerstände auf Y umgerechnet with Y connection: effective resistances with D connection: effective restistances converted to Y connection |
|
|
MD 1138 |
Läuferwiderstand kalt (20°) phase rotor resistance, cold (20°) |
R2x’ |
0.0243 |
Ω |
Statorbezogen related to stator |
|
|
MD 1139 |
Ständerstreureaktanz |
X1σ |
0.0893 |
Ω |
||
|
MD 1140 |
Läuferstreureaktanz |
X2σ’ |
0.0965 |
Ω |
Statorbezogen related to stator |
|
|
MD 1141 |
Hauptfeldreaktanz |
Xh |
1.71 |
Ω |
||
|
MD 1143 |
Entsättigungsdrehzahl |
n2 |
7390 |
min-1 |
Asynchrone Drehzahl bei Last asynchronous speed at rated power |
|
|
MD 1142 |
Einsatzdrehzahl Feldschwächung start of field weakening speed |
nFS |
4450 |
min-1 |
Asynchrone Drehzahl bei Last asynchronous speed at rated power |
|
|
MD 1144 |
Entsättigungsgrad |
K2 |
140 |
% |
||
|
MD 1145 |
Kippmomentreduktionsfaktor stall torque reduction factor |
KM |
100 |
% |
Voreinstellung default value |
|
|
Motor Data |
||||||||
|
Drehzahl / speed |
3010 |
4450 |
8250 |
9650 |
11900 |
min-1 |
||
|
Frequenz / frequency |
206 |
300 |
560 |
655 |
800 |
Hz |
||
|
Leistung / power S1 |
59 |
62 |
62 |
59 |
38 |
kW |
||
|
Spitzenleistung / peak power |
154 |
230 |
119 |
100 |
82 |
kW |
||
|
Spannung / voltage |
310 |
440 |
440 |
440 |
440 |
V |
||
|
Strom / current |
166 |
134 |
106 |
101 |
68 |
A |
||
