Product Description

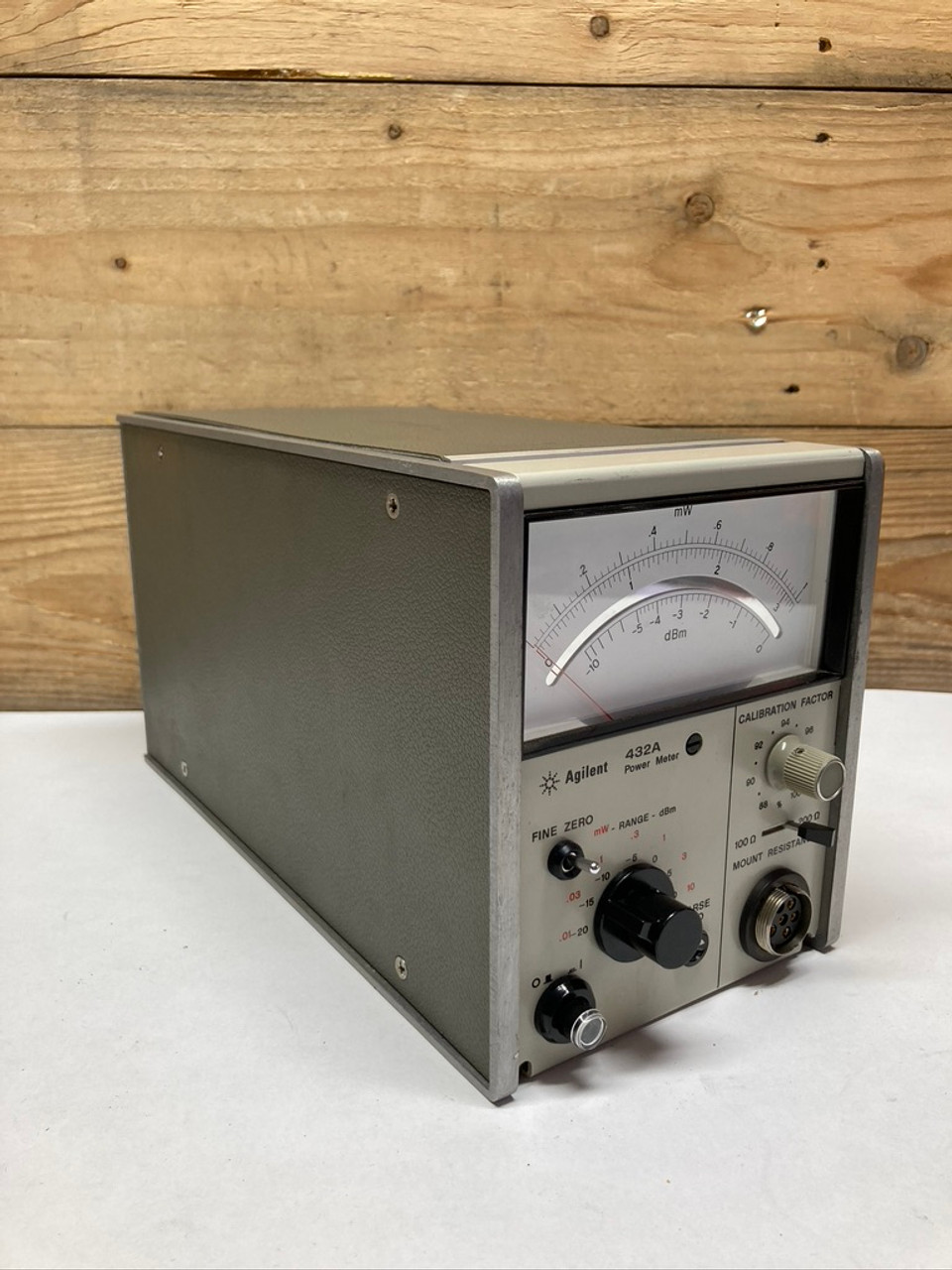

Up for sale is an analog power meter that is manufactured by HP Agilent. Item has been tested and does power on, however the knobs don't show that they are functioning. Item does show sign of shelf wear due to being in storage for a long period of time.Â
Overview and Features
- Power Range: 7 ranges with full-scale readings of 10, 30 100 and 300 uW 1, 3 and 10 mW; also calibrated in dBm from -20 dBm to +10 dBm full scale in 5 dB steps
- Noise: Less than 0.25% of full scale peak (typical)
- Response Time: At recorder output, 35 ms time constant (typical)
- Fine Zero: Automatic, operated by front-panel switch
- Zero Carryover: Less than 0.50% of full scale when zeroed on most sensitive range

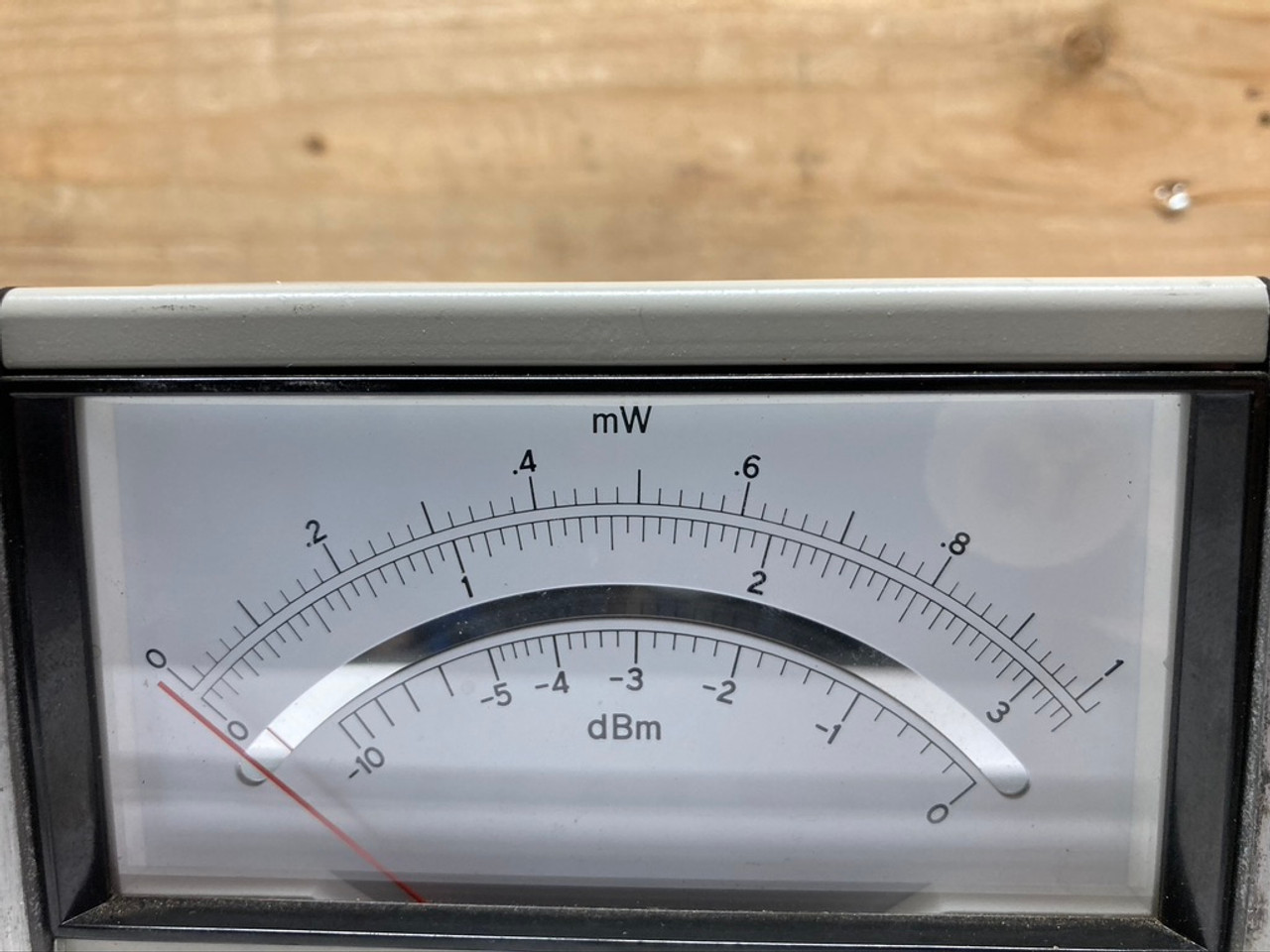

- Meter: Taut-band suspension, individually calibrated, mirror-backed scales. Milliwatt scale more than 100 mm (4.25 in) long
- Calibration Factor Control: 13-position switch normalizes meter reading to account for thermistor sensor calibration factor. Range 100% to 88% in 1% steps
- Thermistor Sensor: Thermistor sensors are required for operation of the 432A.
