Product Description

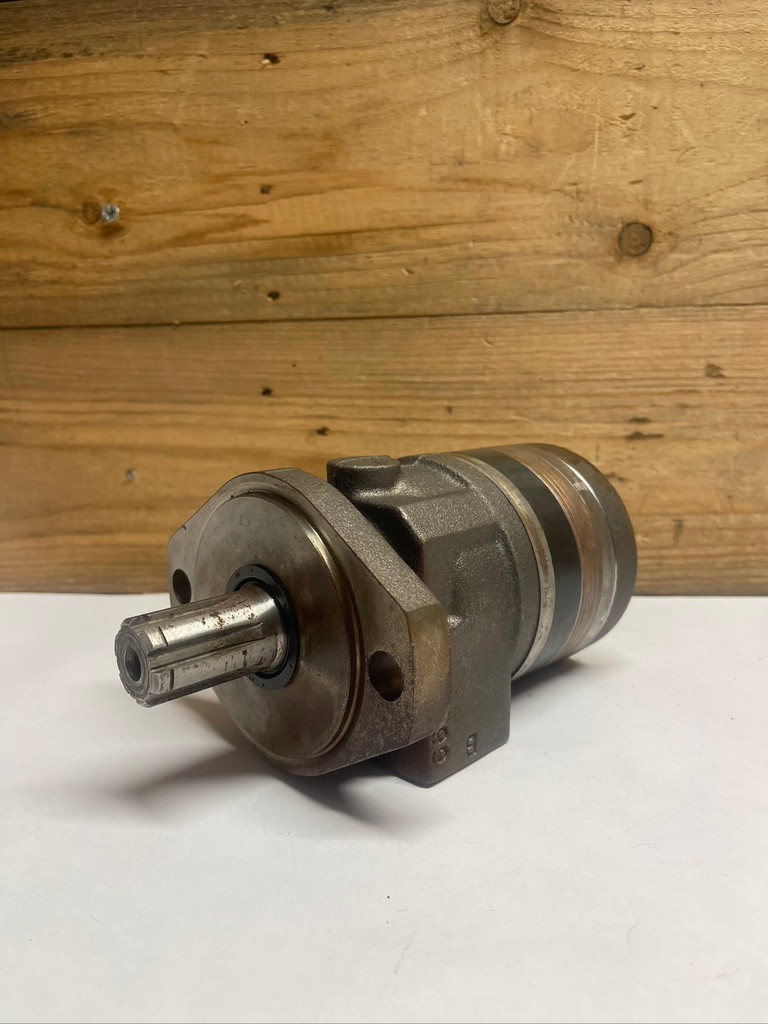

Up for sale is a genuine Parker TB0080AM110AAAB Hydraulic Torque Motor. This Parker TB Series motor is a medium-duty, low-speed high-torque hydraulic motor featuring 5.0 cubic inches per revolution displacement, a 1-inch 6B splined output shaft and SAE A two-bolt mounting configuration. Its compact design provides high torque at relatively low operating speeds for compatible mobile and industrial hydraulic drive applications requiring this exact Parker motor configuration.
- Item is in new old stock condition, however motor does have minor surface rust due to being in storage for a long period of time. Does not come in original packaging.
Features & Specifications
- Brand: Parker Hannifin
- Part Number: TB0080AM110AAAB
- Series: TB
- Type: Low-Speed High-Torque Hydraulic Motor
- Displacement: 82 cc/rev / 5.0 in³/rev
- Shaft: 1" 6B spline
- Mounting: SAE A, 2-bolt
- Ports: 5/16-18 UNC manifold
- Rotation: Standard
- Maximum Flow: 9 GPM / 34 LPM
- Maximum Speed: 409 RPM
- Continuous Torque: 1,193 lb-in / 135 Nm
- Intermittent Torque: 1,624 lb-in / 184 Nm
- Continuous Differential Pressure: 1,800 PSI
- Intermittent Differential Pressure: 2,400 PSI
- Maximum Supply Pressure: 2,750 PSI
- Maximum Performance: 10.4 HP / 7.8 kW
