Product Description

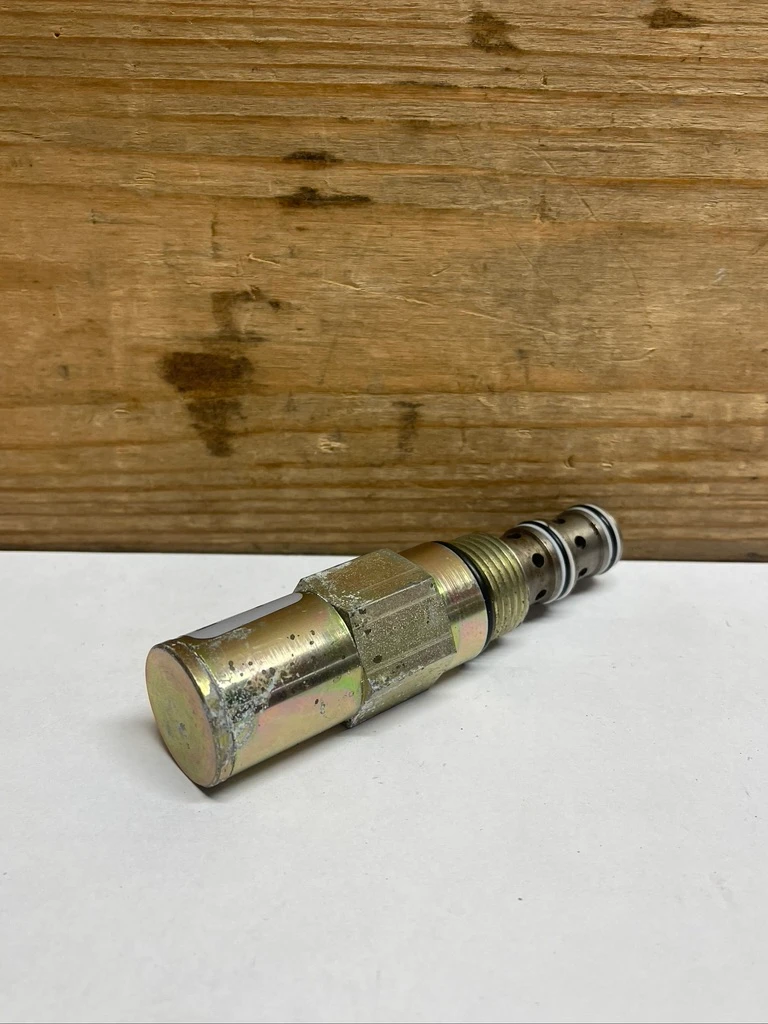

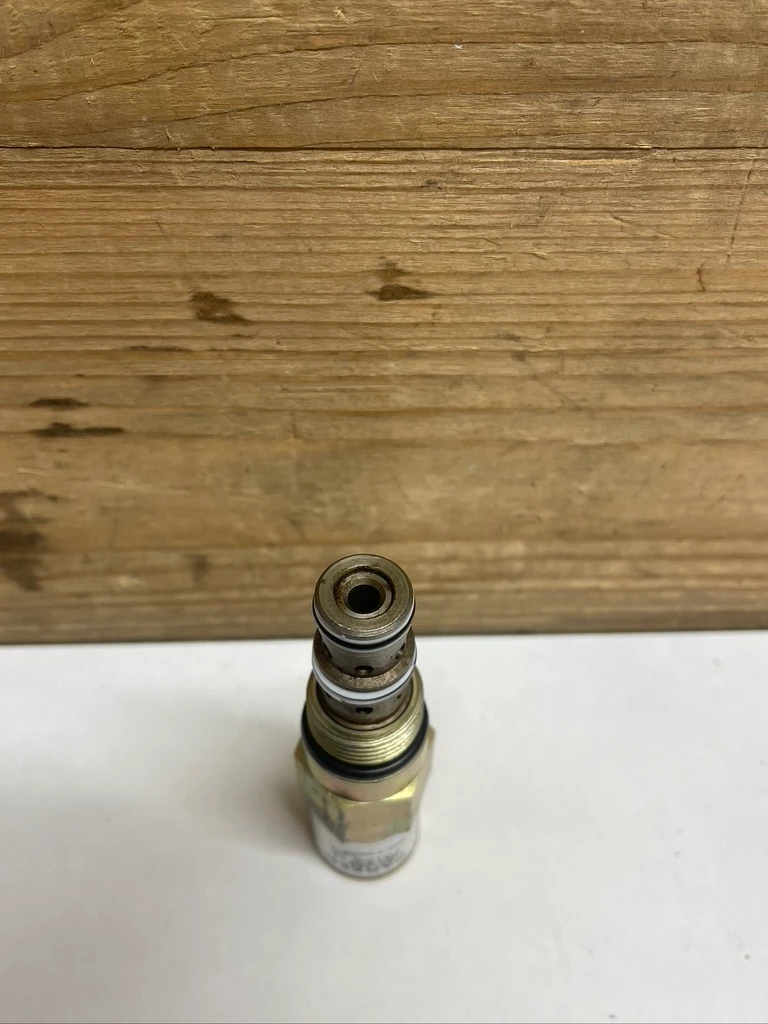

Up for sale is a genuine Parker PR103F12 Pressure Reducing/Relieving Valve. This direct-acting screw-in hydraulic cartridge valve is designed to regulate downstream hydraulic pressure while also providing relieving capability when pressure exceeds the controlled setting. The PR103F12 operates over a 570–1,200 PSI pressure-control range, with a 600 PSI standard setting, and is rated for inlet pressures up to 3,000 PSI and flow rates up to 15 GPM. Its hardened-steel internal operating components are designed for demanding mobile and industrial hydraulic systems requiring the Parker C10-3 cartridge cavity.
- Item is in new old stock condition without its original packaging. Item has minor oxidation rust.
Features & Specifications
- Brand: Parker
- Part Number: PR103F12
- NSN: 4820-01-331-7747
- Item: Pressure Reducing / Relieving Valve
- Type: Screw-in hydraulic cartridge valve
- Operation: Direct Acting
- Adjustment: Fixed
- Pressure Control Range: 570–1,200 PSI (39.3–83 bar)
- Maximum Pressure Setting: 1,200 PSI
- Standard Setting: 600 PSI
- Maximum Inlet Pressure: 3,000 PSI (210 bar)
- Maximum Pressure Differential: 1,000 PSI
- Maximum Flow: 15 GPM (56 L/min)
- Maximum Tank Pressure: 1,800 PSI
- Maximum Drain Flow: 0.03 GPM
- Cavity: C10-3
- Seal: D-Ring, standard
- Valve Construction: Steel with hardened-steel operating components
- Fluid Compatibility: Mineral-based or synthetic hydraulic fluids
- Fluid Viscosity: 45–2,000 SSU (6–420 cSt)
- Operating Temperature: -35°F to +200°F
- Installation Torque: 50–56 Nm
- Approx. Weight: 0.5 lb

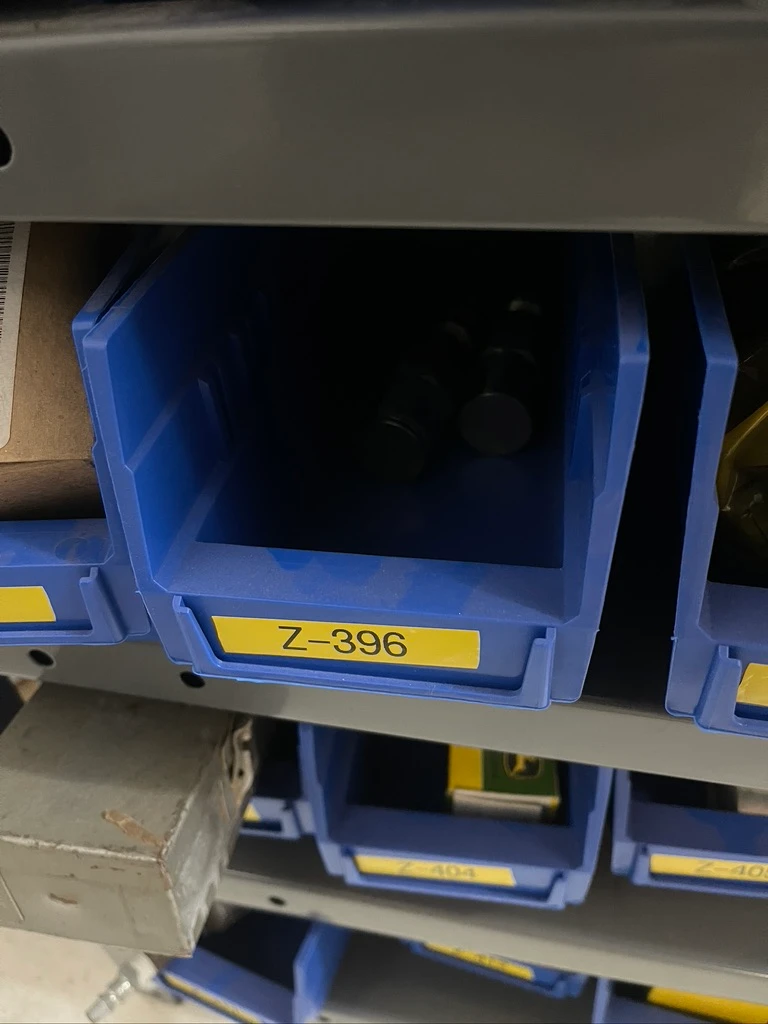

Z-396
