Product Description

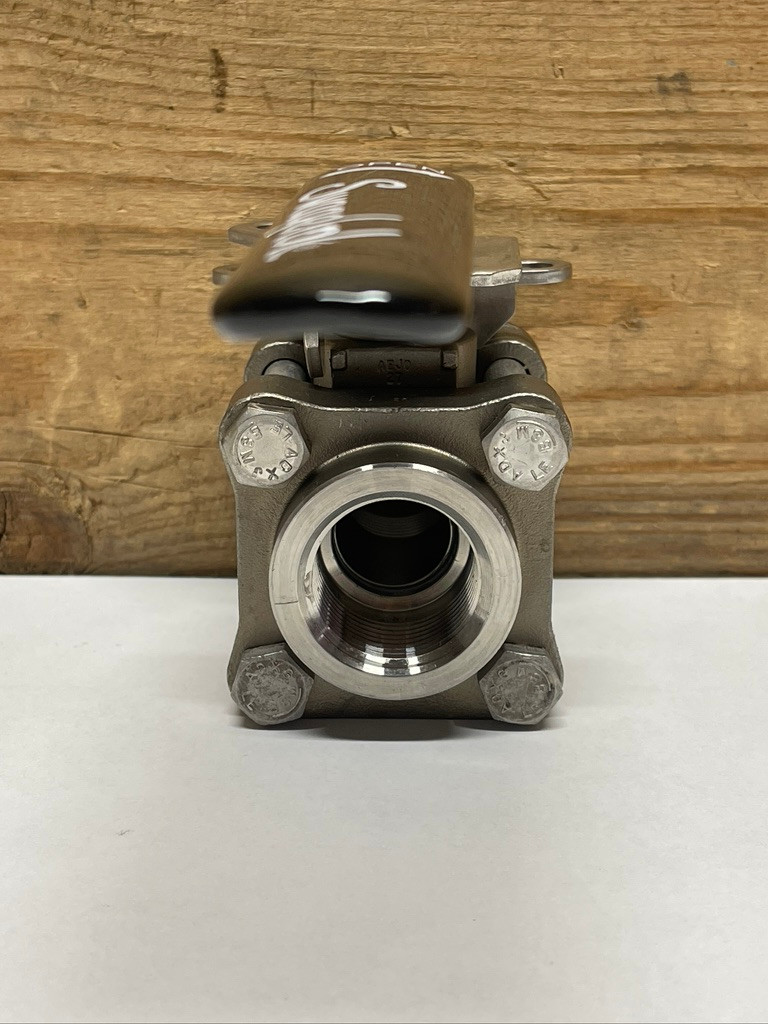

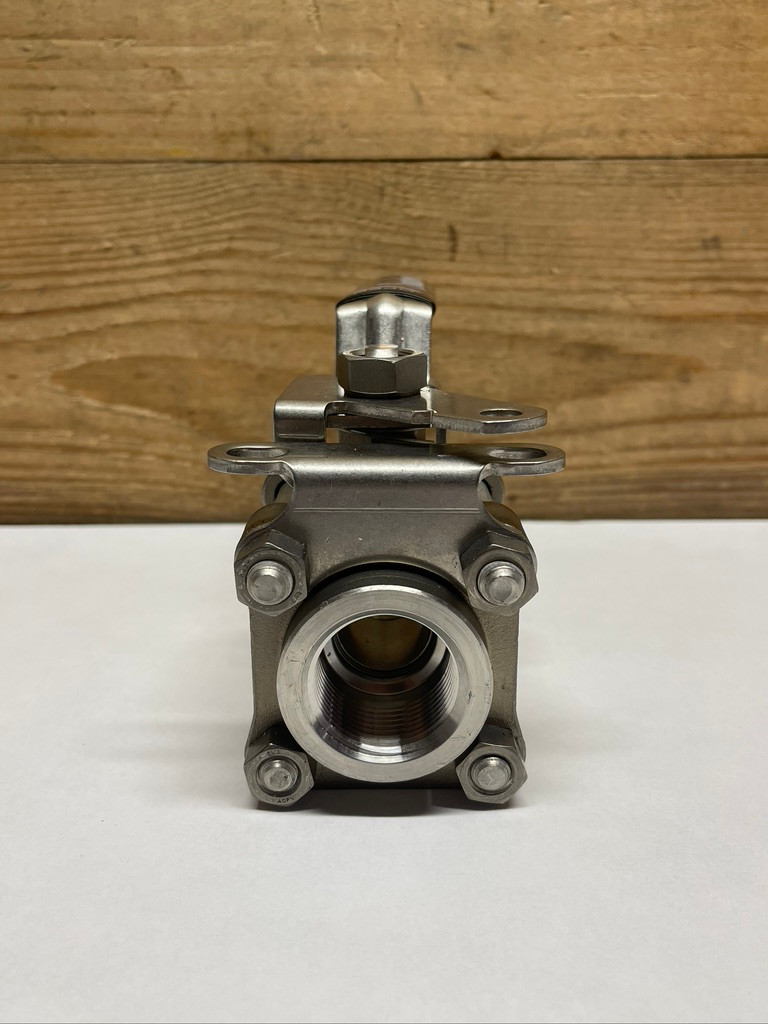

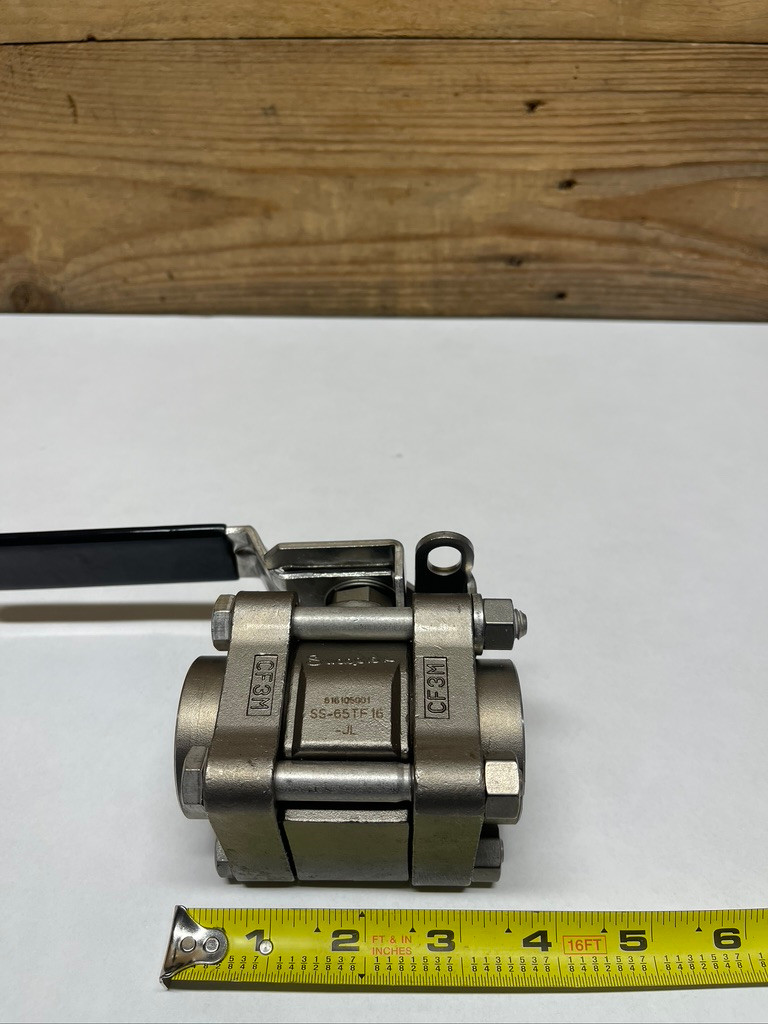

Up for sale is a genuine Swagelok SS-65TF16 60 Series Ball Valve. This heavy-duty 3-piece valve provides positive on/off flow control in industrial fluid and gas systems. Its full-flow design offers a high flow capacity, while the swing-out body allows easier servicing of internal components without removing the entire valve from the piping system. The 316 stainless steel construction and reinforced PTFE seats provide durability and resistance to a wide range of process environments.
- Item is in new old stock condition without original packaging.
Features & Specifications
- Brand: Swagelok
- Part Number: SS-65TF16
- NSN: 4820-01-379-9331
- Series: 60 Series
- Type: 3-Piece Ball Valve
- Body Material: 316 Stainless Steel
- Port Size: 1 in
- Connections: 1" Female NPT × 1" Female NPT
- Flow Pattern: 2-Way Straight / Shutoff
- Pressure Rating: 2,200 PSI @ 100°F
- Cv: 38
- Seat Material: Reinforced PTFE
- Flange Seal: Fluorocarbon FKM
- Ball/Stem: Stainless Steel
- Handle: Lever
- Service: General Service
- Design: Swing-Out 3-Piece Body
