Product Description

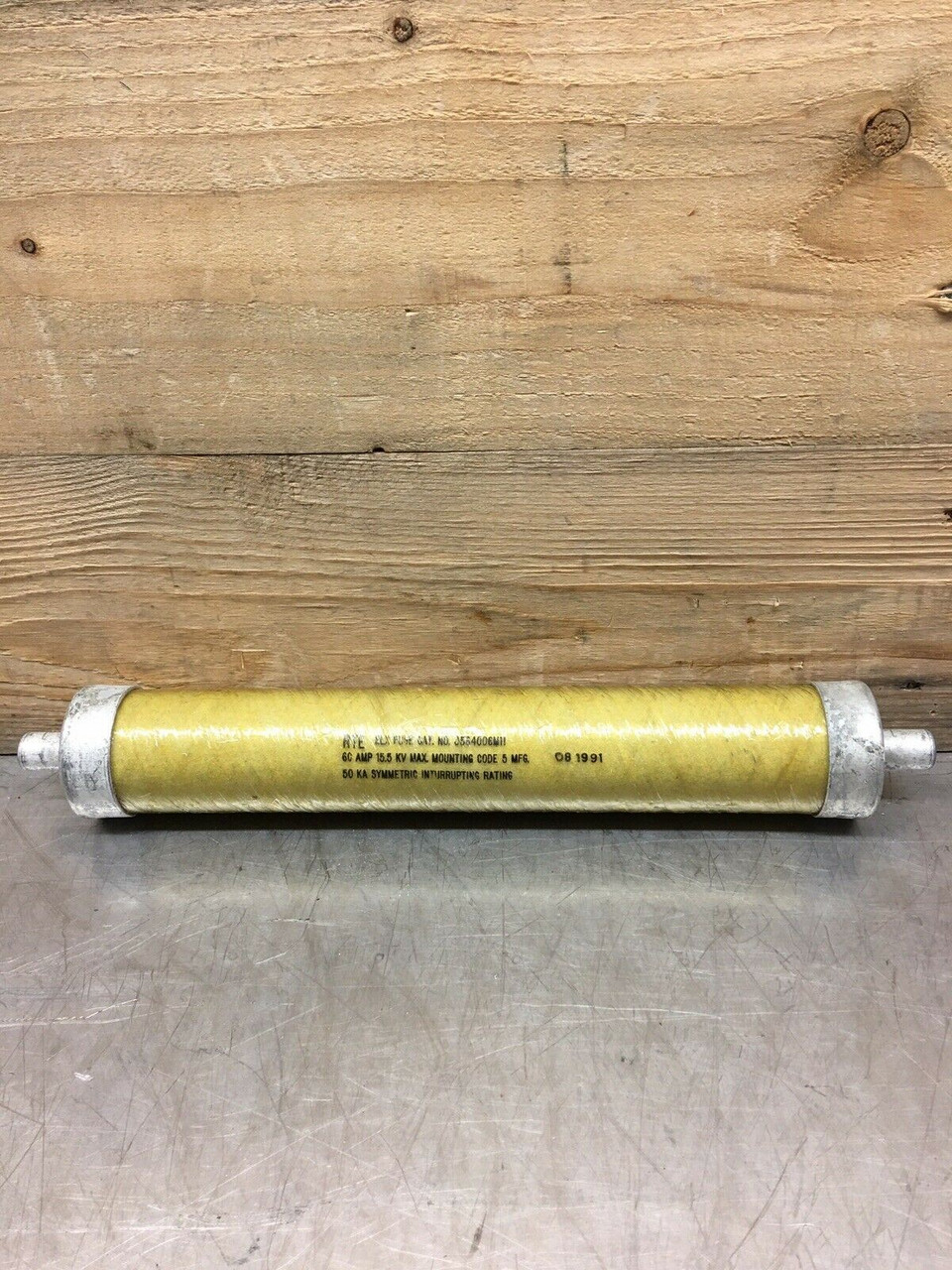

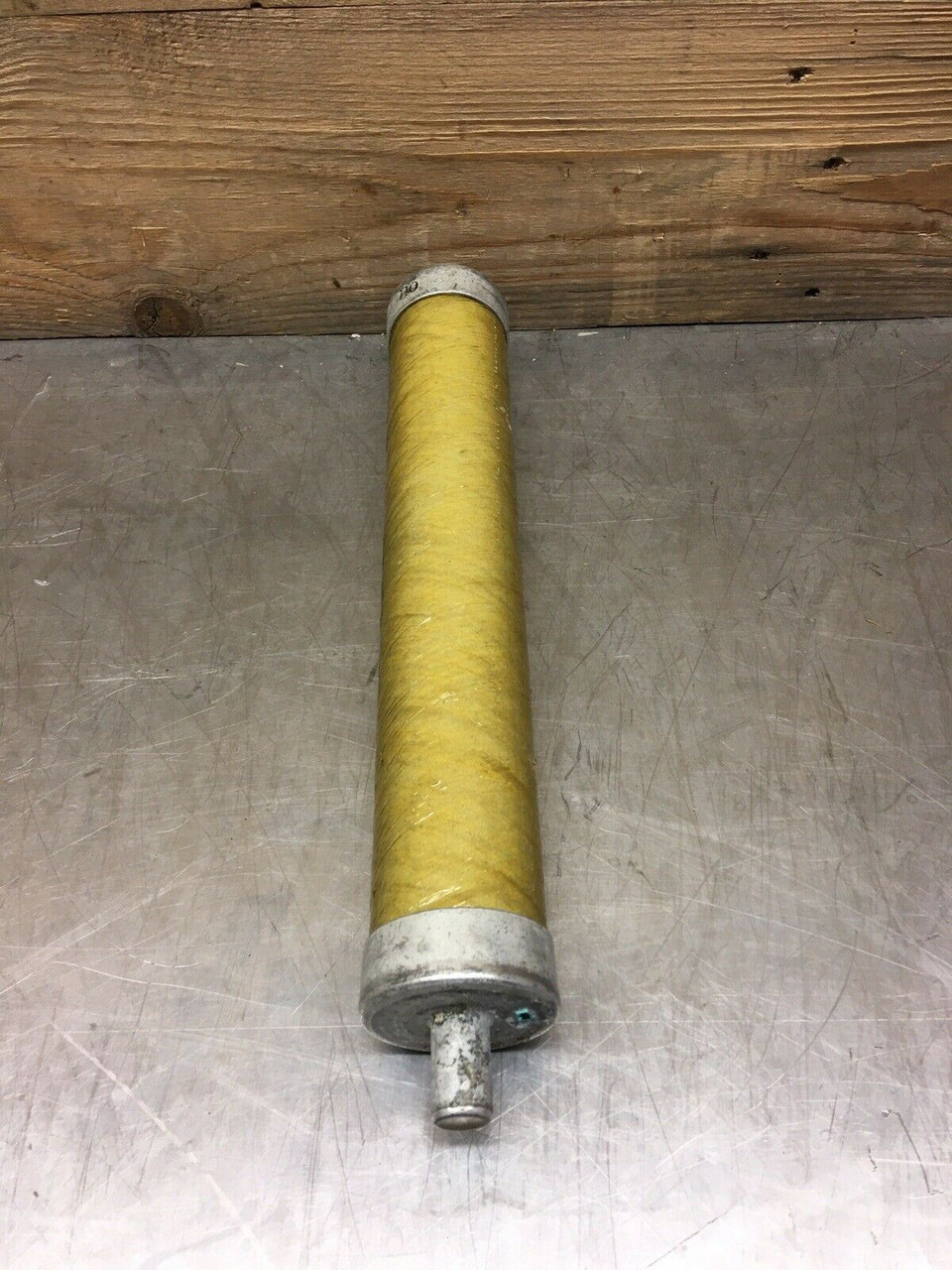

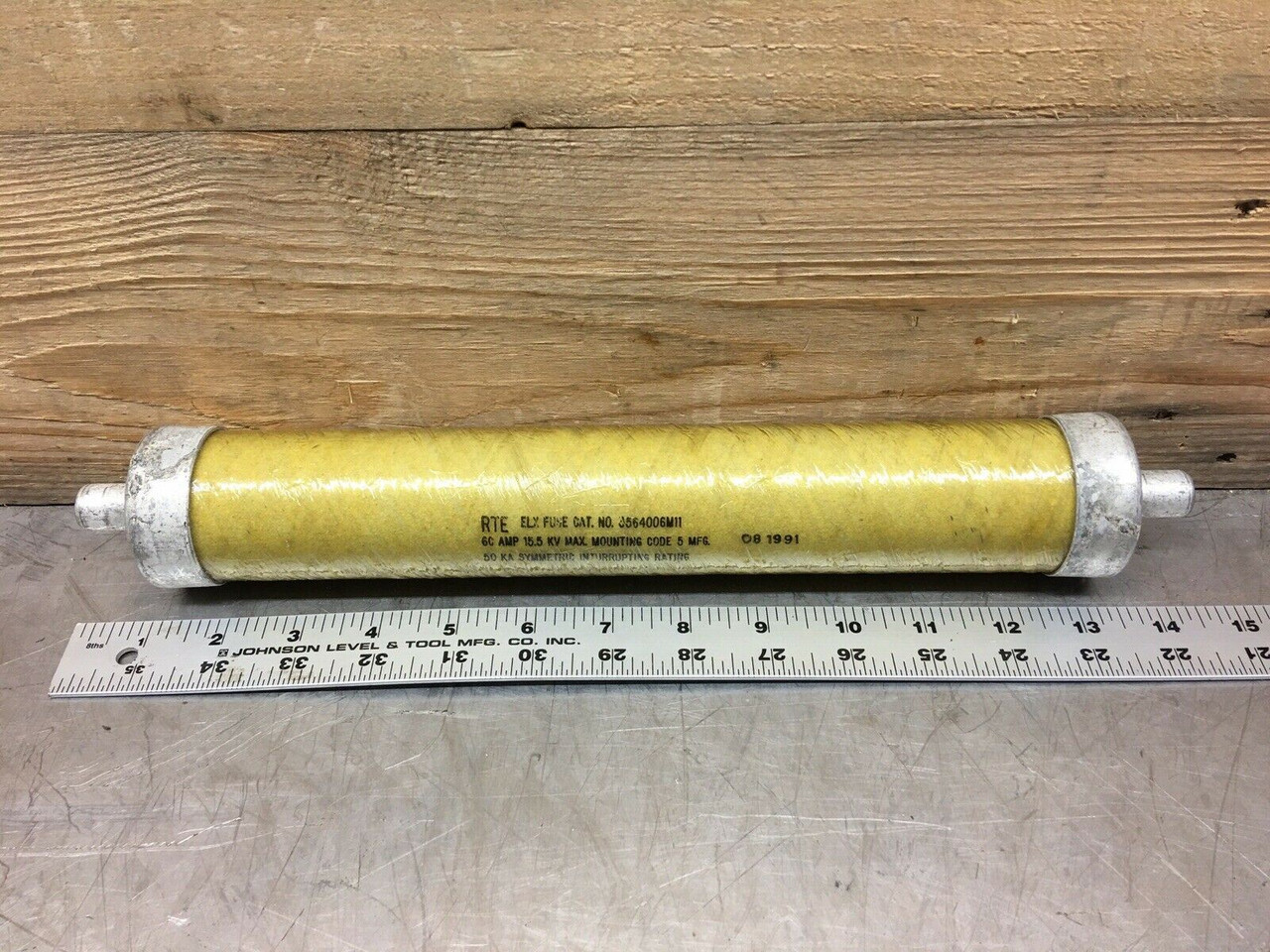

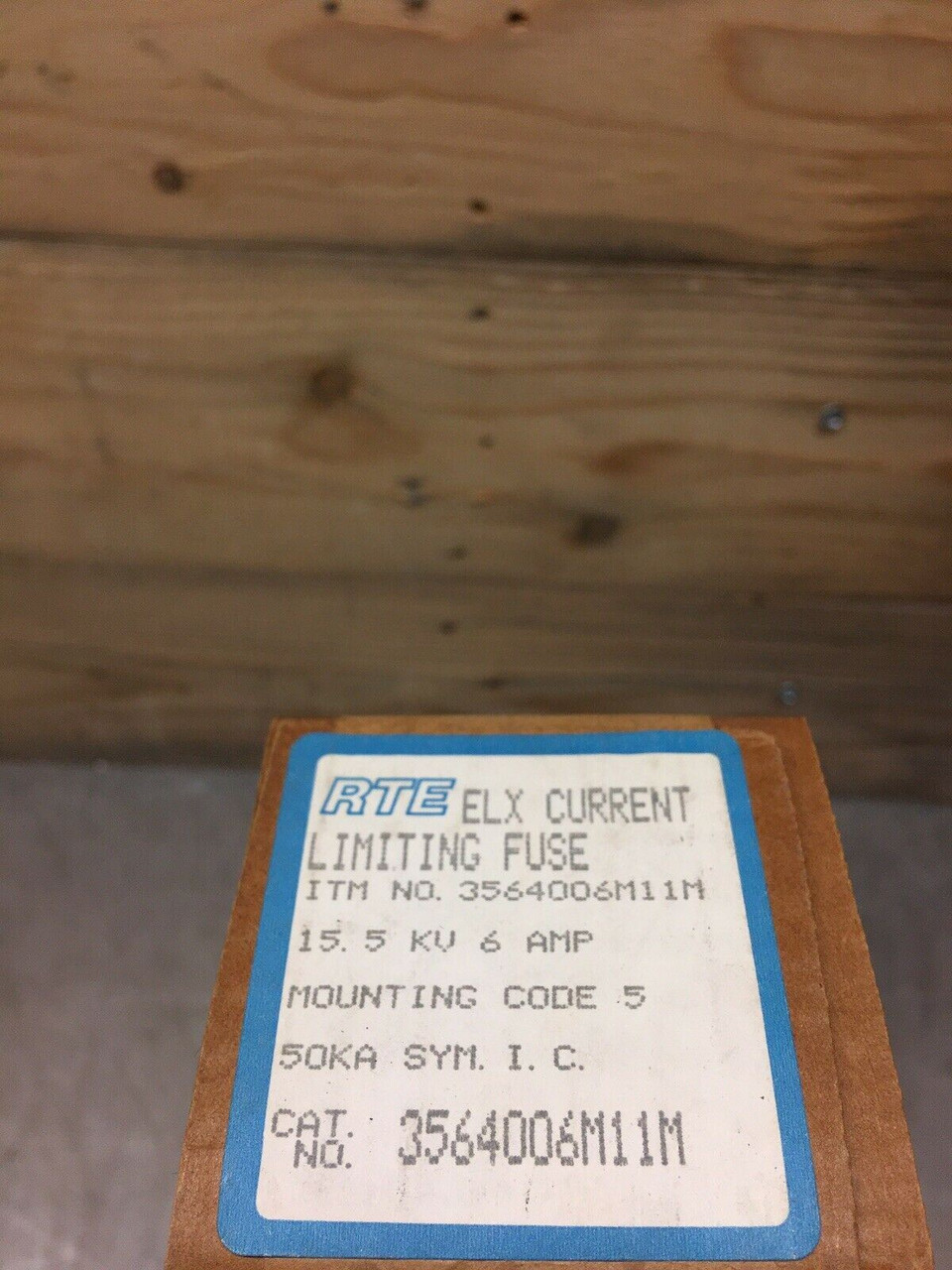

Up for sale is a genuine RTE ELX Full-Range Current Limiting Fuse, part number 3564006M11M. This medium-voltage fuse is rated for 15.5 kV with a 6C current rating and is designed to provide dependable overcurrent protection for transformers, switchgear, and electrical distribution equipment. The ELX series is a full-range current-limiting fuse that rapidly interrupts both low- and high-level fault currents while minimizing the energy released during a fault.
- Item listed is in new condition.
Features & Specifications
- Brand: RTE
- Series: ELX
- Part Number: 3564006M11M
- Type: Full-Range Current Limiting Fuse
- Current Rating: 6C Amps
- Voltage Rating: 15.5 kV AC
- Maximum Interrupting Current: 50 kA Symmetrical
- Mounting Style: Indoor Clip Mount
- Fuse Classification: C-Rated
- Frequency: 50/60 Hz
- Housing Material: Fiberglass
Its fiberglass construction and clip-style mounting design make it suitable for use in pad-mounted equipment, metal-clad switchgear, dry-well canisters, and industrial electrical distribution systems. The fuse is mechanically interchangeable with other industry-standard clip-style and dry-well canister mountings
