Product Description

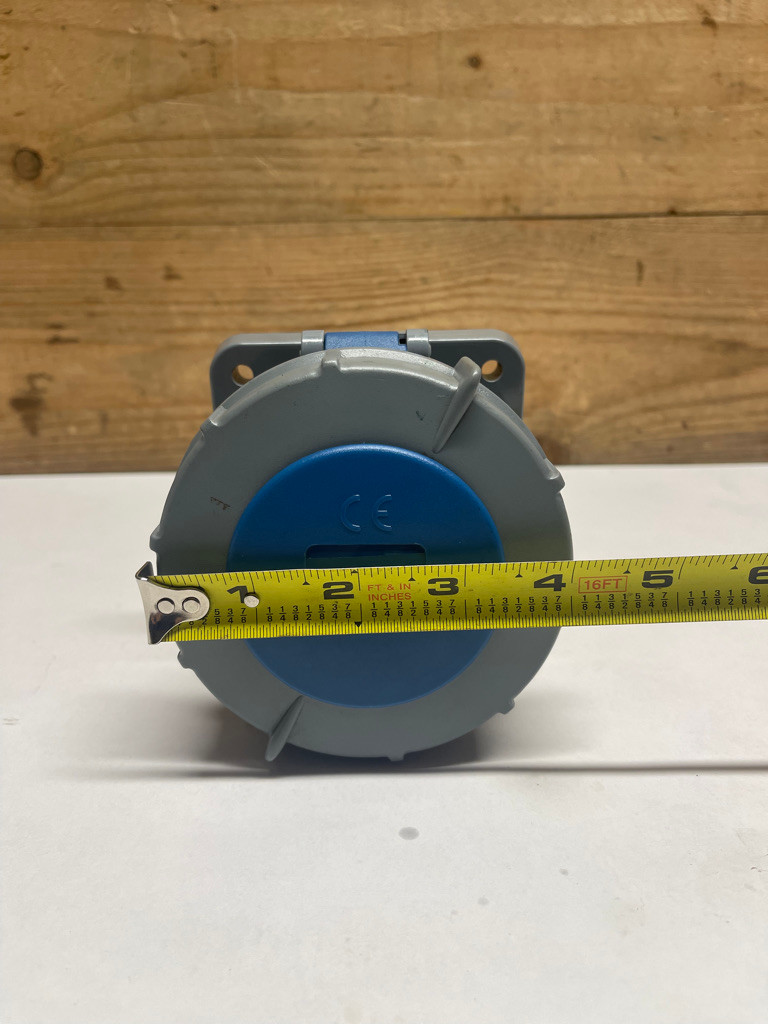

Up for sale is a Mennekes UEC560R9W Pin & Sleeve Watertight Receptacle. This heavy-duty industrial electrical receptacle is designed for 60-amp, 120/208V AC three-phase WYE power applications and uses a 4-pole, 5-wire configuration. Its pin-and-sleeve design provides a secure electrical connection for compatible industrial plugs while helping prevent accidental mismating with devices of a different electrical configuration.
- Item is in new old stock condition without its original packaging.
- Item has minor surface imperfections from being in storage for a long period of time. Includes only what is pictured.
Features & Specifications
- Brand: Mennekes
- Part Number: UEC560R9W
- Current Mennekes Number: ME 560R9W
- Type: Pin & Sleeve Watertight Receptacle
- Amperage: 60A
- Voltage: 120/208V AC
- Phase: 3-Phase WYE
- Poles: 4
- Wires: 5
- Ground Position: 9h
- Color: Blue
- Sleeve Material: Brass
- NEMA Rating: 4X
- IP Rating: IP67
- Standard Horsepower Rating: 5 HP
- Maximum Working Voltage: 600V RMS
- Operating Temperature: -40°C to 70°C
Its IP67 and NEMA 4X ratings make it suitable for compatible outdoor, washdown, industrial, manufacturing, and heavy-equipment power installations. The 9-hour grounding position and blue color coding identify its specific voltage/configuration. Mennekes currently lists the equivalent configuration as ME 560R9W.
