Product Description

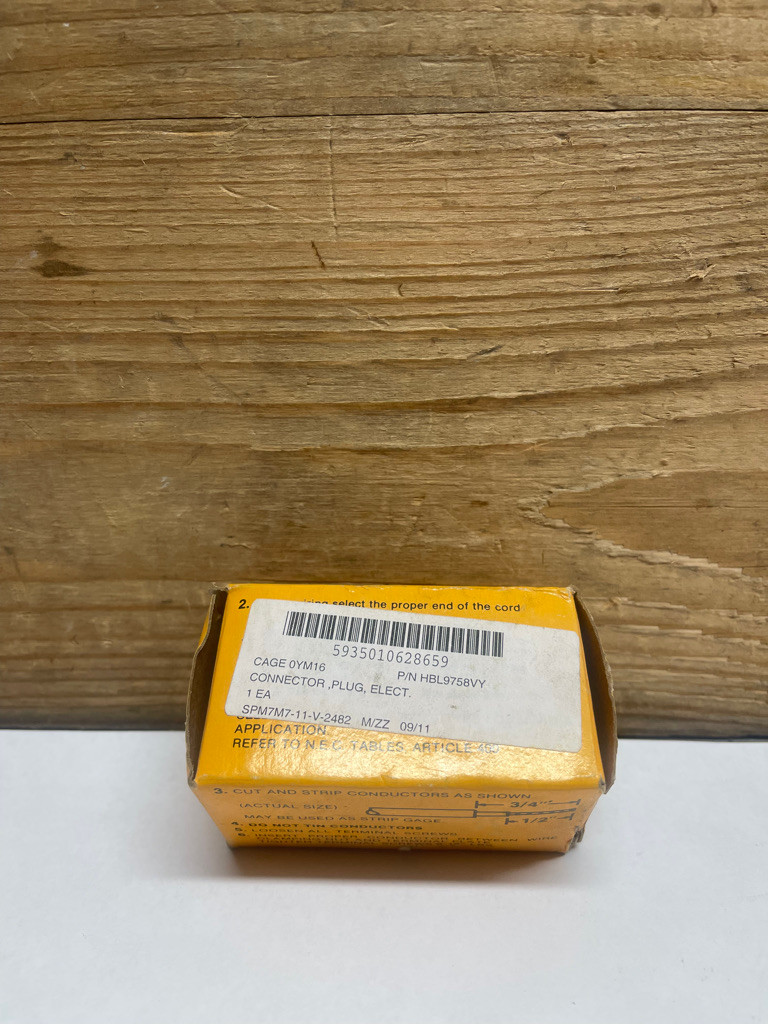

Up for sale is a Hubbell HBL9758VY Straight Blade Plug designed for commercial and industrial electrical applications. This plug is rated for 20 amps at 250V AC and uses a 2-pole, 2-wire non-grounding NEMA 2-20P configuration. The HBL9758VY features Hubbell's hinged Valise-style nylon body, which opens to provide access to the internal screw terminals during wiring and installation. An integrated cord-grip arrangement helps secure the attached cable and reduce strain on the conductor connections.
- Item is in new old stock condition. Packaging may show signs of shelf wear from being in storage for a long period of time.
Features & Specifications
- Brand: Hubbell
- Part Number: HBL9758VY
- NSN: 5935-01-062-8659
- Series: Valise
- Type: Straight Blade Plug
- NEMA Configuration: 2-20P
- Current Rating: 20A
- Voltage Rating: 250V AC
- Poles: 2
- Wires: 2
- Grounding: Non-Grounding
- Phase: Single Phase
- Polarized: Yes
- Housing Material: Nylon
- Blade Material: Brass
- Color: Yellow
- Terminal Type: Screw
- Cord Diameter Range: 0.220–0.660 in
- Body Length: 1.88 in
- Outside Diameter: 1.50 in
- Horsepower Rating: 2 HP
- IP Rating: IP20
Applications
Suitable for compatible commercial, industrial, machinery, equipment, and electrical power applications requiring a 20A 250V NEMA 2-20P non-grounding plug. Buyers should verify the NEMA configuration and electrical ratings before installation.
