Product Description
Up for sale is a Hewlett-Packard HP 8563A portable microwave spectrum analyzer covering 9 kHz through 26.5 GHz.
The HP 8563A is a professional synthesized spectrum analyzer designed for RF and microwave signal measurement, troubleshooting and analysis. Typical applications include communications testing, RF laboratory work, microwave equipment servicing, interference analysis, transmitter testing and advanced amateur-radio applications.
Features and specifications:
• Manufacturer: Hewlett-Packard
• Model: 8563A
• Instrument Type: Synthesized microwave spectrum analyzer
• Frequency Range: 9 kHz to 26.5 GHz
• Display: Built-in CRT
• Resolution Bandwidth Range: 10 Hz to 2 MHz
• Displayed Average Noise Level: As low as approximately -131 dBm, depending upon frequency and instrument settings
• Built-in frequency counter
• Built-in AM/FM demodulation and speaker
• Noise-measurement and carrier-to-noise functions
• Front-panel 300 MHz calibration output

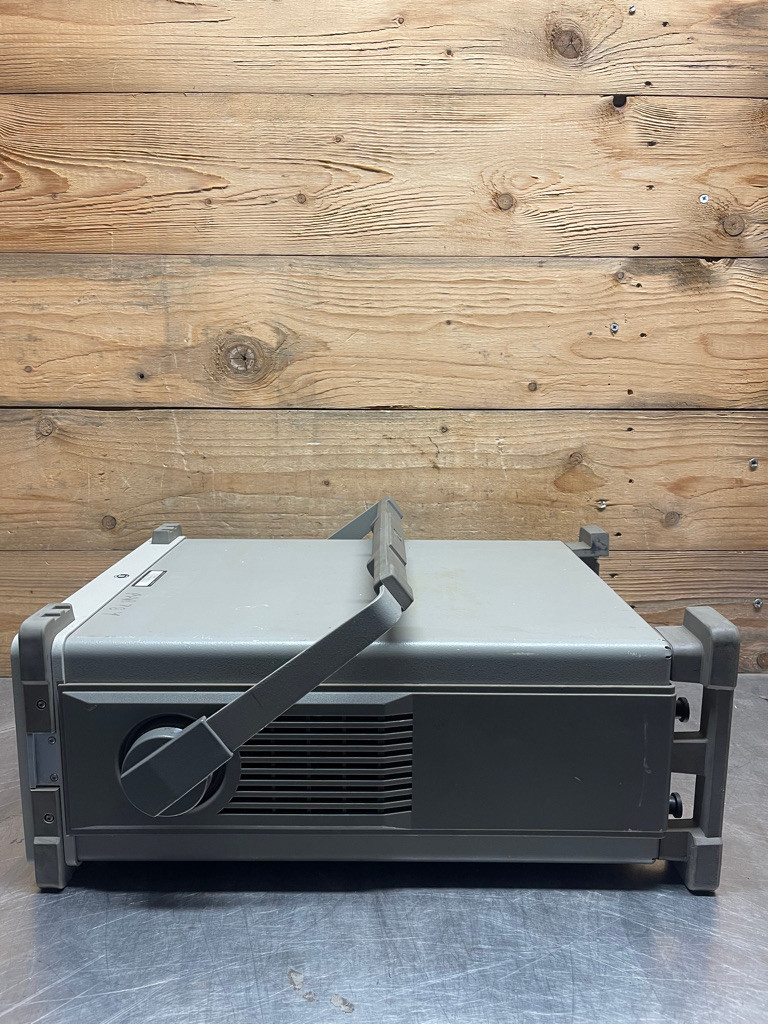

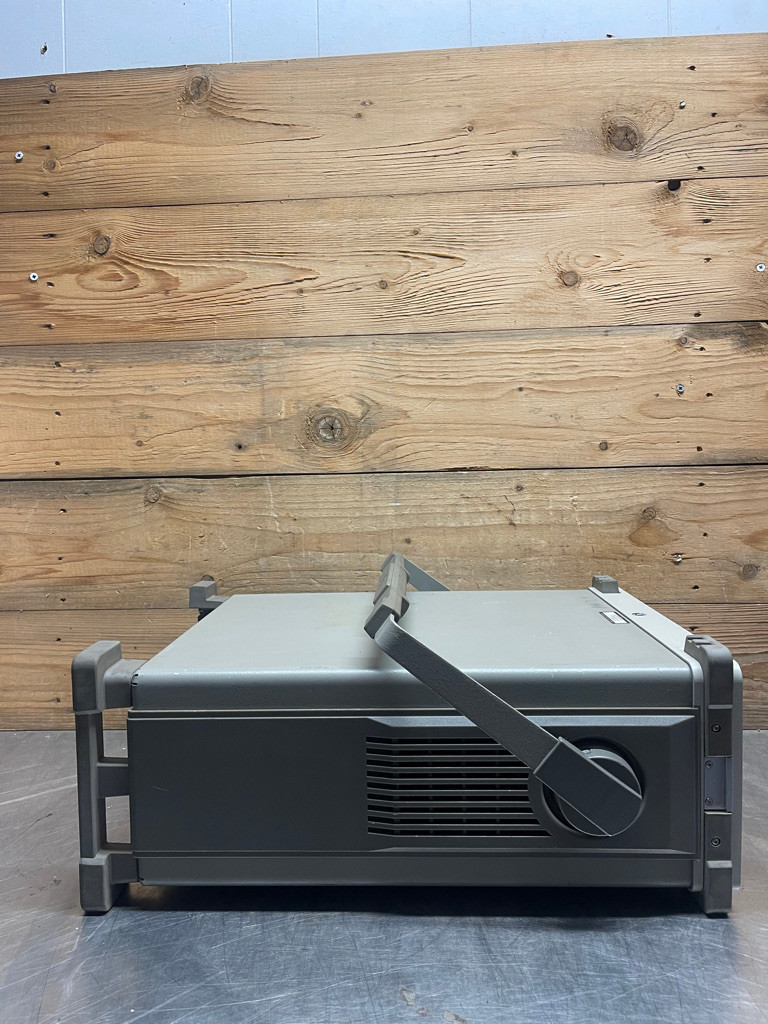

• Portable, ruggedized instrument housing

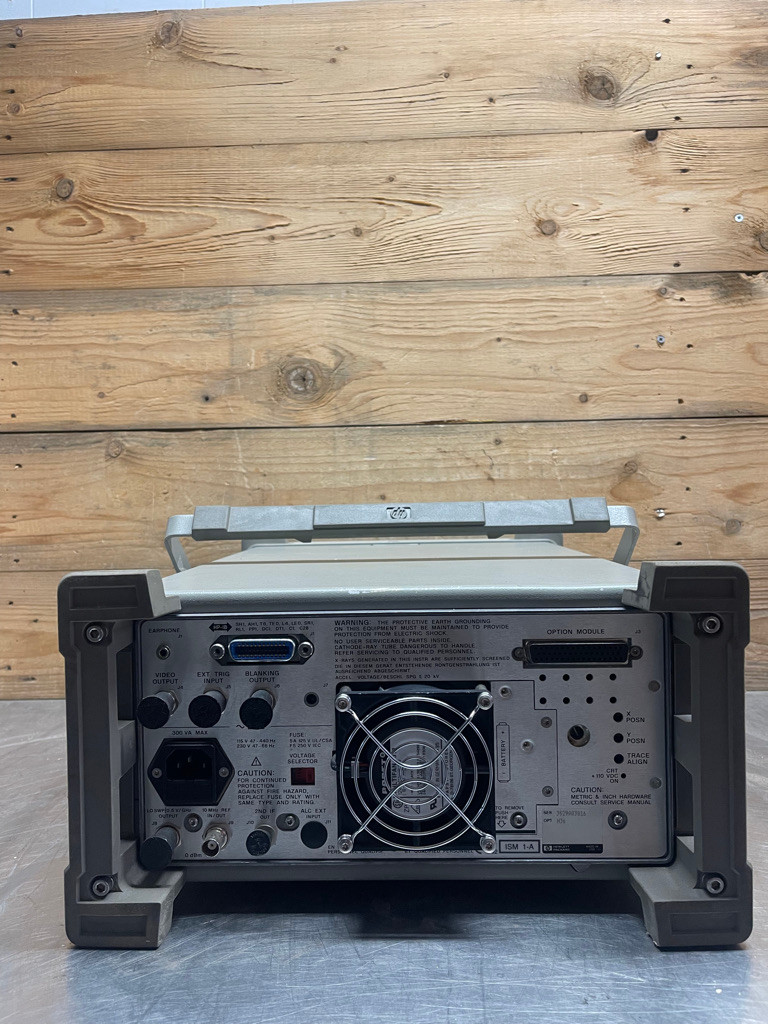

• HP-IB/GPIB remote-control capability
Condition and testing:

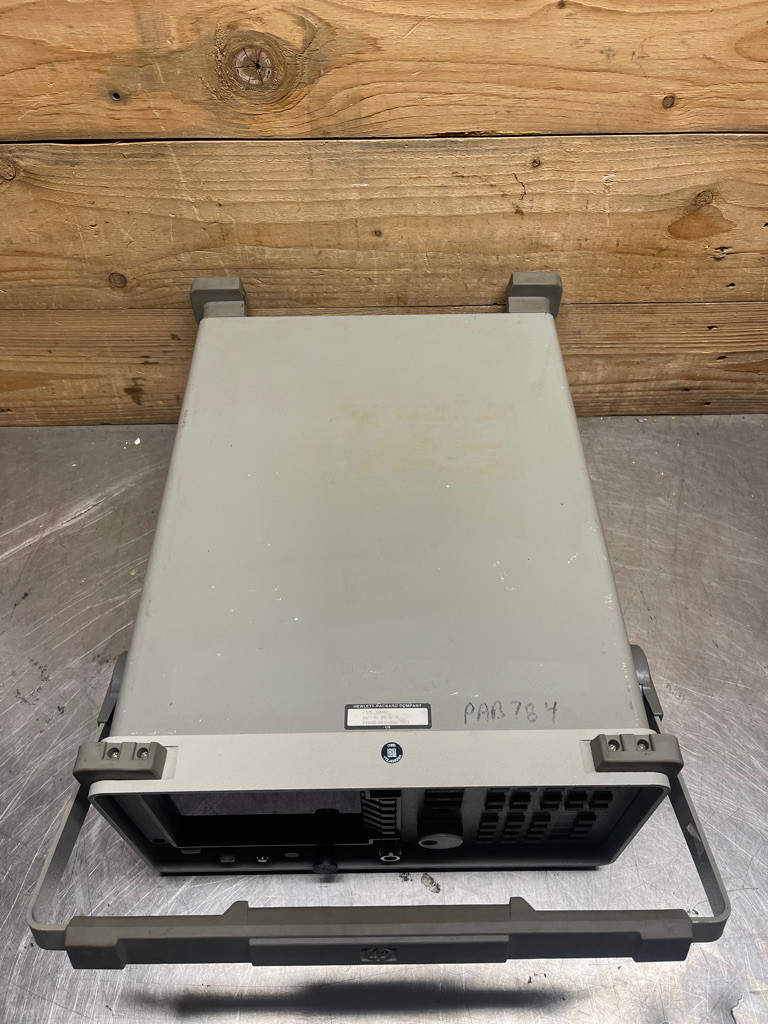

This is a used U.S. Government surplus instrument showing scratches, scuffs, discoloration, finish wear and other normal cosmetic imperfections from age, transportation, storage and previous use.
The unit has been connected to power and powers on successfully. The CRT display illuminates and appears bright, clear and responsive, as shown in the photographs. The front-panel controls and on-screen menus respond during basic power-on inspection.
No external RF signal source or calibrated spectrum-analysis equipment was used during testing. Frequency accuracy, amplitude accuracy, resolution bandwidths, RF input sensitivity, attenuator operation, sweep performance, frequency-counter accuracy, calibration output, demodulation functions, memory, HP-IB communication and operation throughout the complete 9 kHz–26.5 GHz range have not been independently verified.
No current calibration certificate is included. Professional inspection and calibration may be required before laboratory, production or certified measurement use.
Includes:
• HP 8563A spectrum analyzer
• AC power cord
No RF cables, adapters, probes, antennas, manuals, software, calibration equipment or additional accessories are included unless clearly shown in the photographs.
Please examine every photograph carefully for the exact cosmetic condition, displayed information and included equipment.
Sold as power-on tested only with no further functional testing completed.

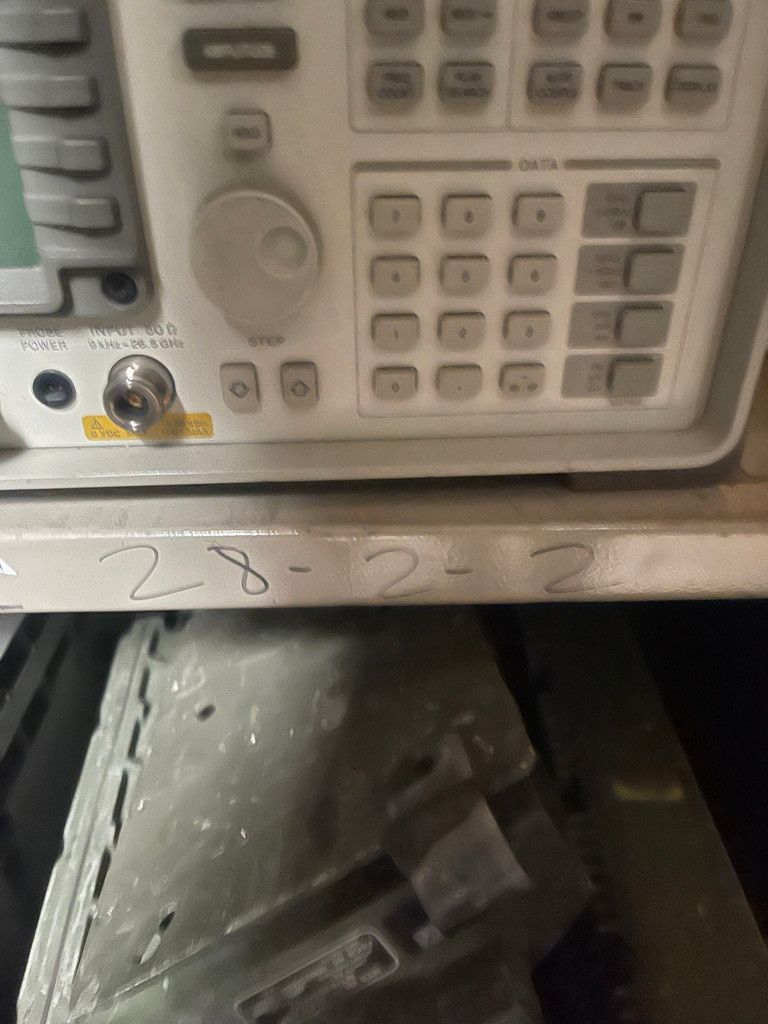

28-2-2
