Product Description

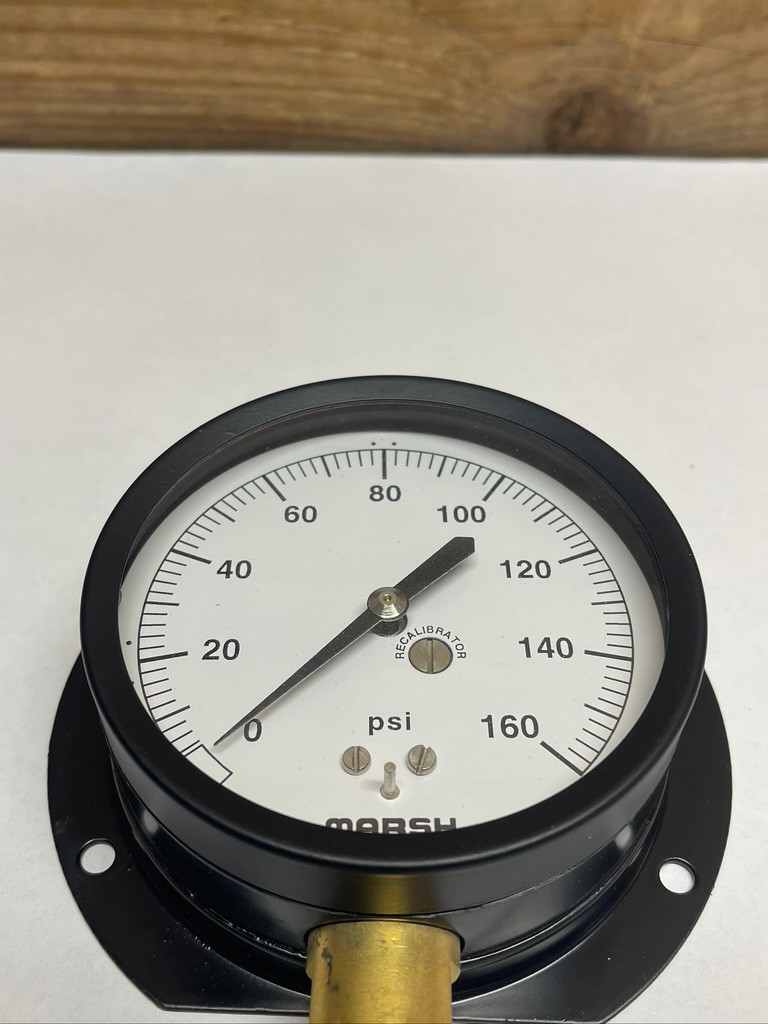

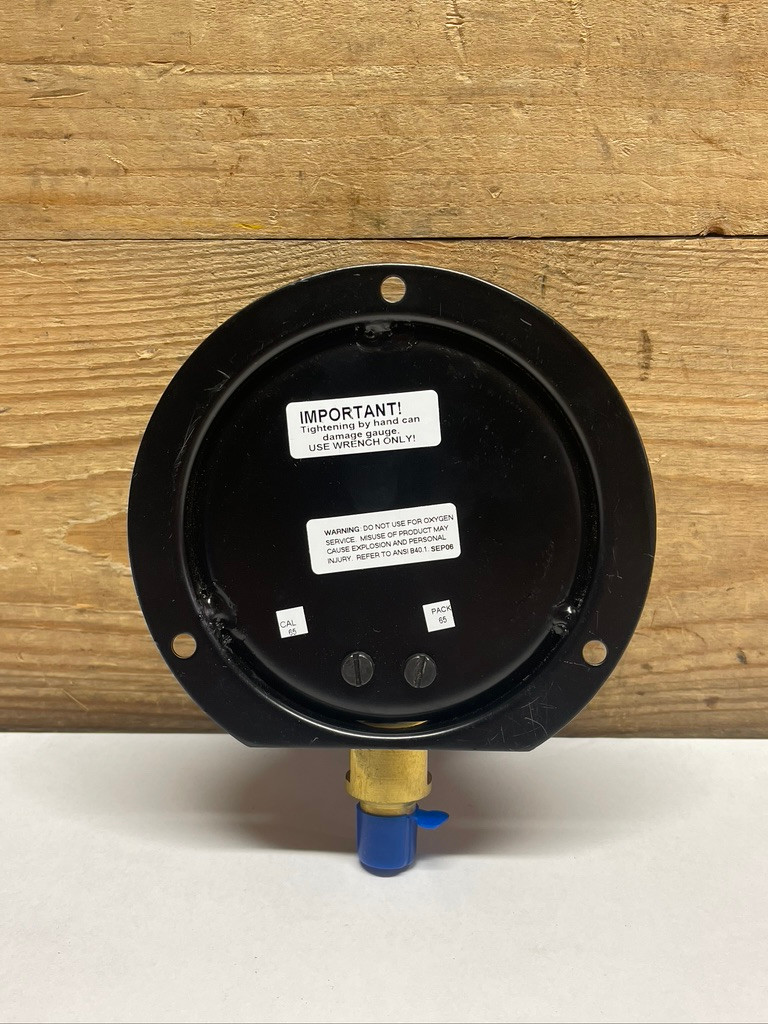

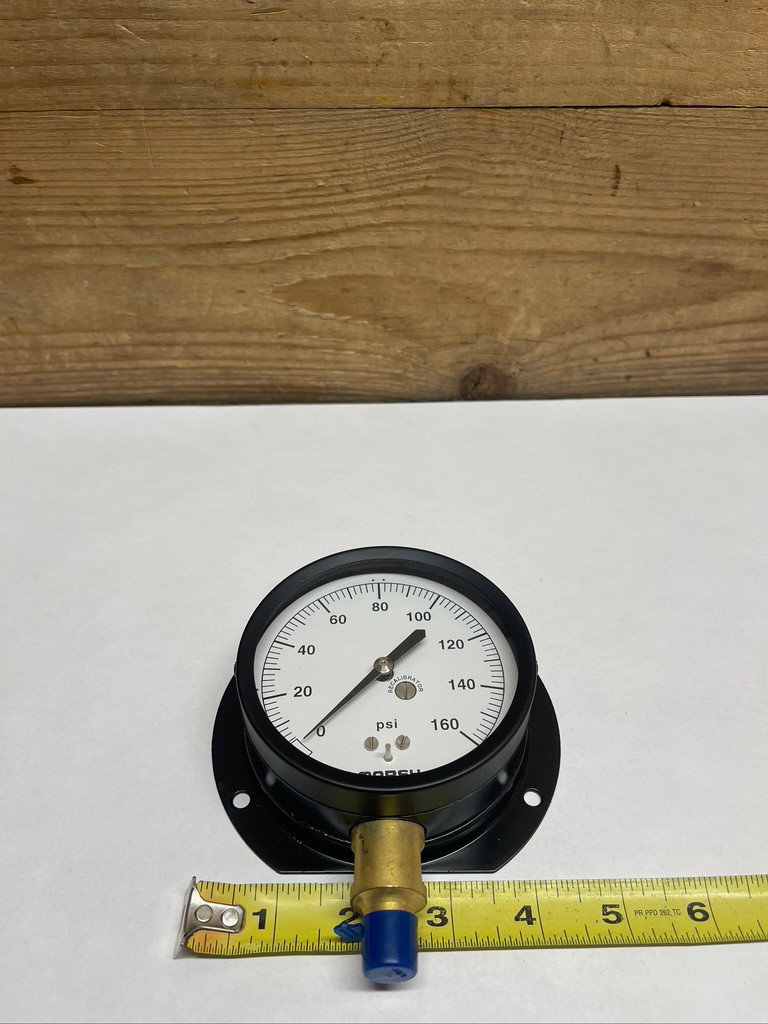

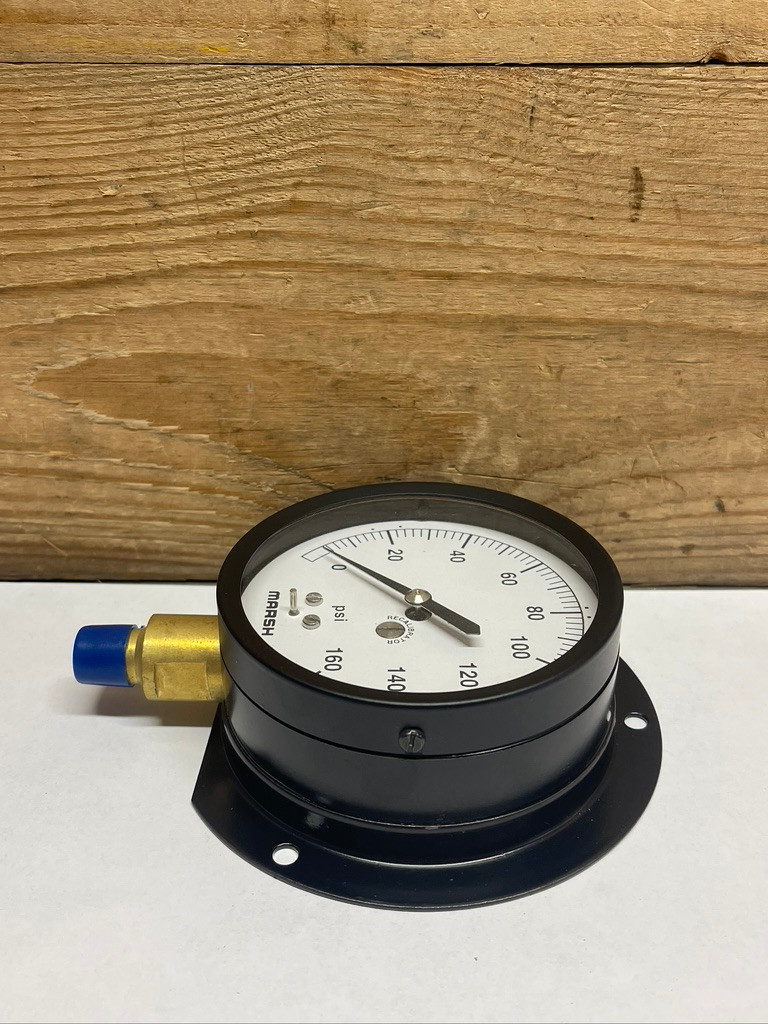

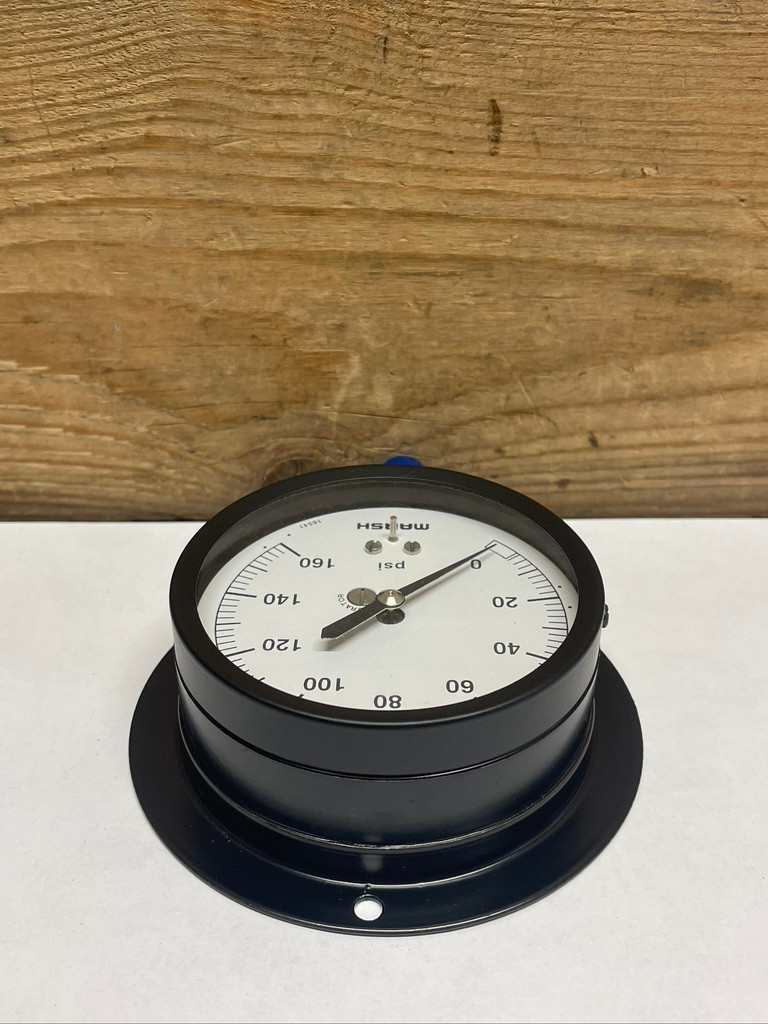

Up for sale is a genuine Marsh Bellofram H1252 Dial Indicating Pressure Gauge. This industrial-grade pressure gauge is designed to accurately measure air, gas, liquid, and vapor pressure in commercial, industrial, hydraulic, pneumatic, and process control applications. Part of the Marsh H12 Series, the H1252 features a durable steel case, glass lens, and recalibrator for long-term accuracy and dependable operation.
- Item is in new old stock condition, packaging shows signs of shelf wear.
Description
An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure.
Features & Specifications
- Brand: Marsh Bellofram
- Model: H1252
- Type: Dial Indicating Pressure Gauge
- NSN: 6685-01-191-6728
- Pressure Range: 0–160 PSI
- Dial Size: 3.5"
- Connection Size: 1/4" NPT
- Connection Location: Bottom Mount
- Case Material: Black Painted Steel
- Lens Material: Glass
- Gauge Type: Dry
- Accuracy: ±2.5% Full Scale (ASME Grade A)
- Recalibrator Standard
- Copper Alloy Wetted Parts
- Stainless Steel Movement
- Black Markings on White Dial
- Operating Temperature: -40°F to 160°F
