Product Description

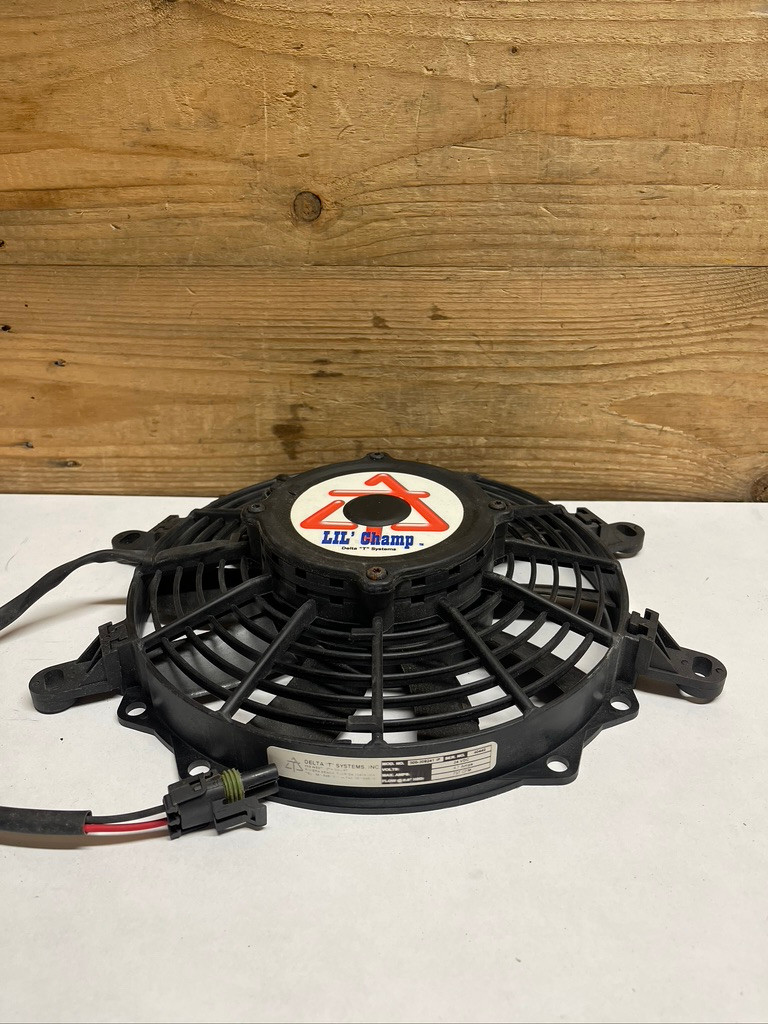

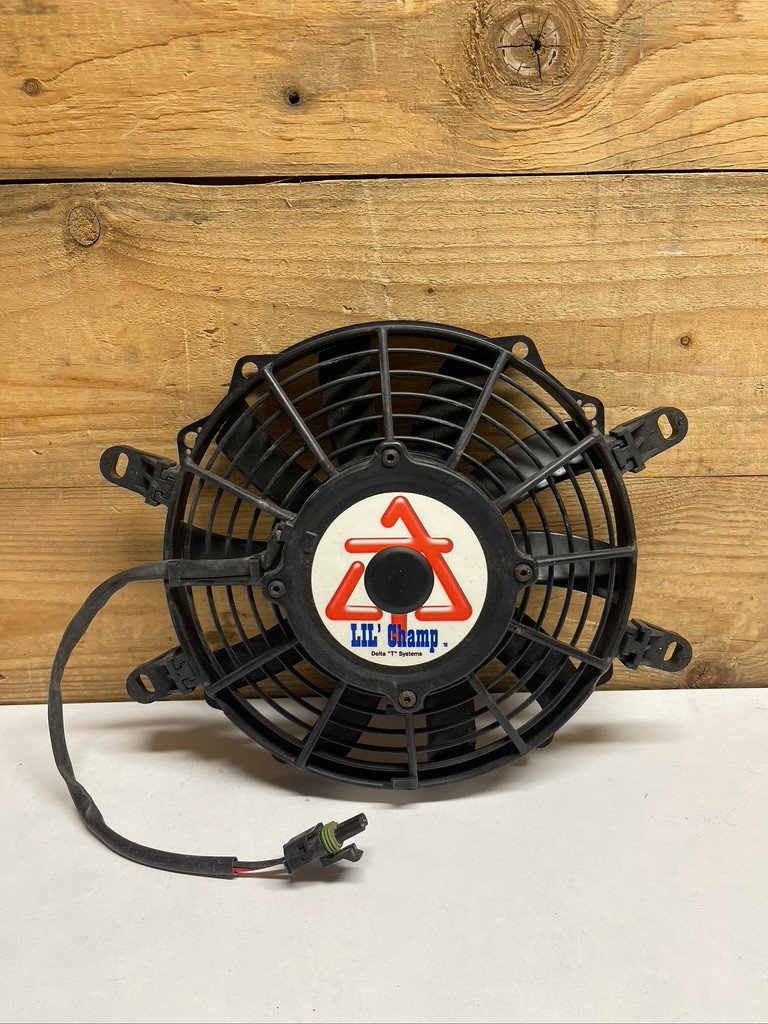

Up for sale is a genuine Delta T Systems Lil' Champ 500-309241IP Marine Axial Fan. This OEM 24-volt ignition-protected axial fan is designed to provide high-volume ventilation for marine engine rooms and enclosed equipment spaces. It helps remove excess heat and fumes while supplying fresh air, improving engine performance and maintaining safe operating temperatures.
Designed specifically for marine environments, this continuous-duty fan features a sealed ball-bearing DC motor, corrosion-resistant glass-filled nylon construction, and a reversible blade assembly that allows it to operate as either a pusher or puller fan.
- Item is in new old stock condition. Packaging shows signs of shelf wear.
Features & Specifications
- Brand: Delta T Systems
- Part Number: 500-309241IP
- NSN: 4140-01-513-6683
- Series: Lil' Champ
- Part Type: Marine Axial Fan
- Voltage: 24 VDC
- Fan Diameter: 9 in (228.6 mm)
- Airflow: Up to 737 CFM
- Current Draw: Approximately 4.5 Amps
- Ignition Protected: SAE J1171, ISO 8846, ISO 9097
- Motor: Sealed TEAO double-shielded ball bearing
- Blade: Reversible (Pusher/Puller)
- Housing Material: Glass-filled nylon
- OEM: Yes
Approximate Dimensions

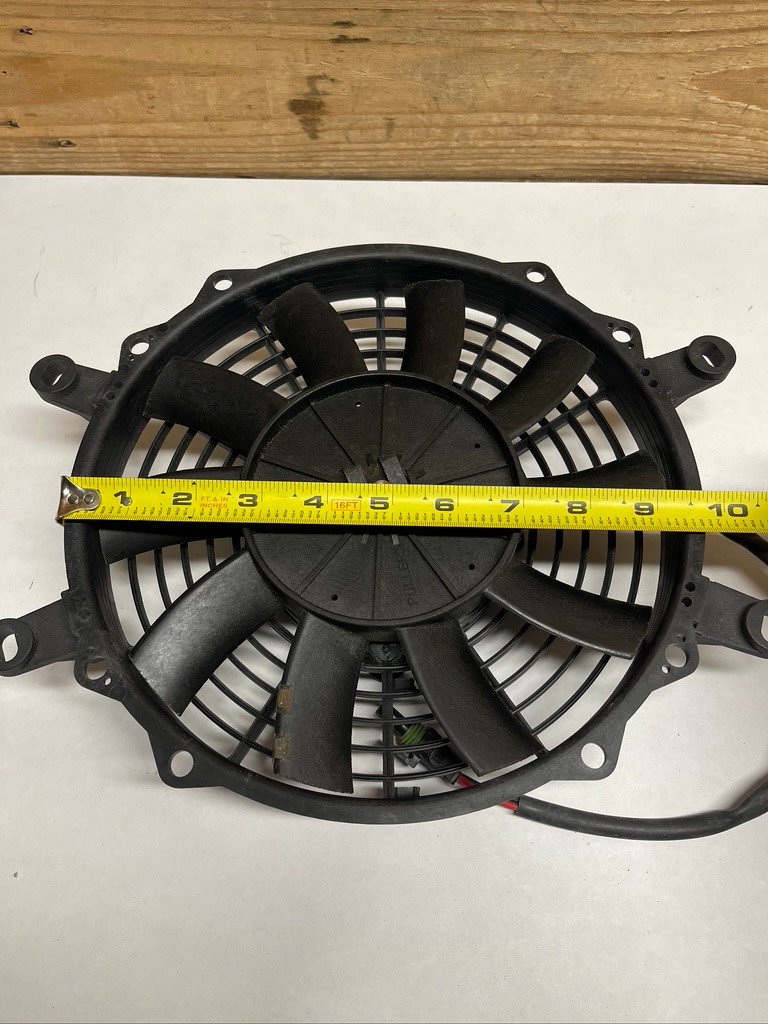

- Fan Diameter: 9 in
- Guard Diameter: 9.75 in
- Overall Height: 2.5 in
- Mounting Feet Extension: Approximately 1 in each side
Compatible Applications
- Marine Engine Rooms
- Gasoline-Powered Boats
- Diesel-Powered Boats
- Sport Fishing Boats
- Yachts
- Commercial Marine Vessels
- Patrol & Work Boats
- OEM Marine Ventilation Systems requiring the Delta T Systems 500-309241IP 24V 9-inch ignition-protected axial fan.
