Product Description

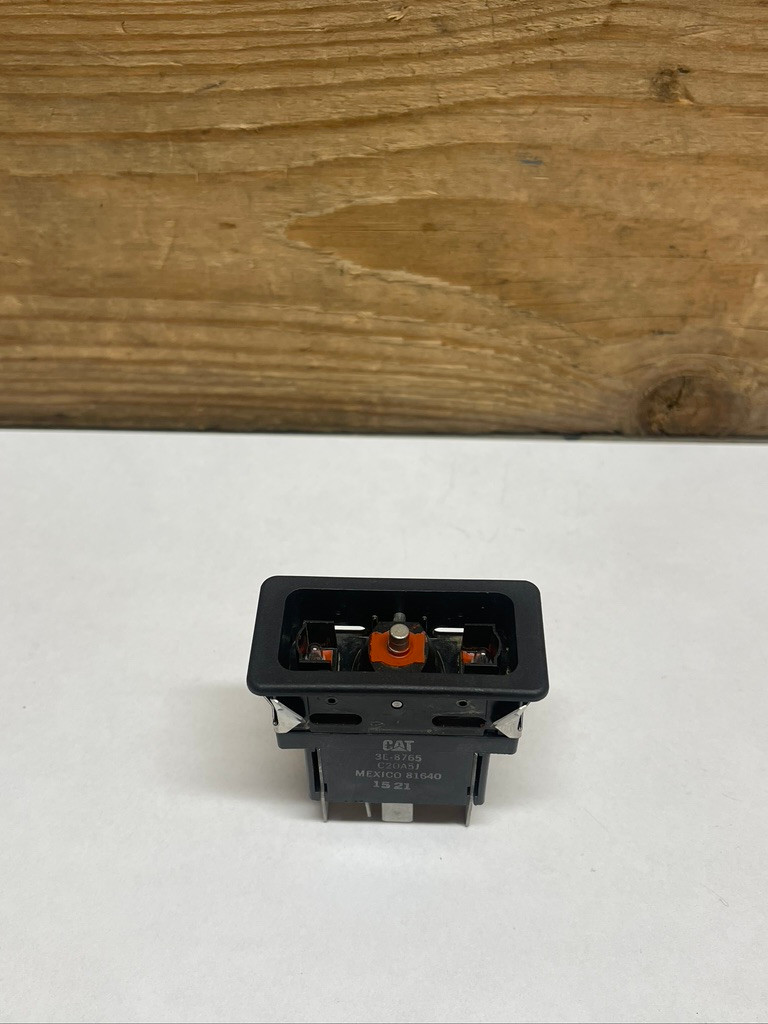

Up for sale is a genuine CAT Caterpillar 3E-8765 Illuminated Rocker Switch. This heavy-duty electrical switch is designed for use within the console wiring of compatible Caterpillar equipment, providing a two-position switching function for controlling the associated electrical circuit. It operates on a 24-volt system and incorporates LED illumination to improve switch visibility in the operator compartment. The sealed construction helps protect the internal switching mechanism in demanding equipment environments, while six blade-style terminals provide the electrical connections to the machine wiring harness.
- Item is in new old stock condition.
Features & Specifications
- Brand: CAT / Caterpillar
- Part Number: 3E-8765 / 3E8765
- Item: Illuminated Rocker Switch
- Type: Sealed Two-Position Rocker Switch
- Voltage: 24V
- Illumination: LED
- Connections: 6 Terminal Blade
- Material: Polyamide Plastic
- Panel Cutout: 1.86" × 0.96" (47.24 × 24.46 mm)
- Length: 2.05" (52.1 mm)
- Width: 1.05" (26.7 mm)
- Height: 2.00" (50.8 mm)
- Operating Temperature: -40°F to 185°F
- Construction: Heavy-duty sealed design
Compatibility
CAT currently lists 3E-8765 for several machines, including:
- Motor Graders: 12H, 14H, 16H, 120H, 135H, 140H, 143H, 160H, 163H and listed NA/ES variants
- Wheel Tractor: 613C II
