Product Description

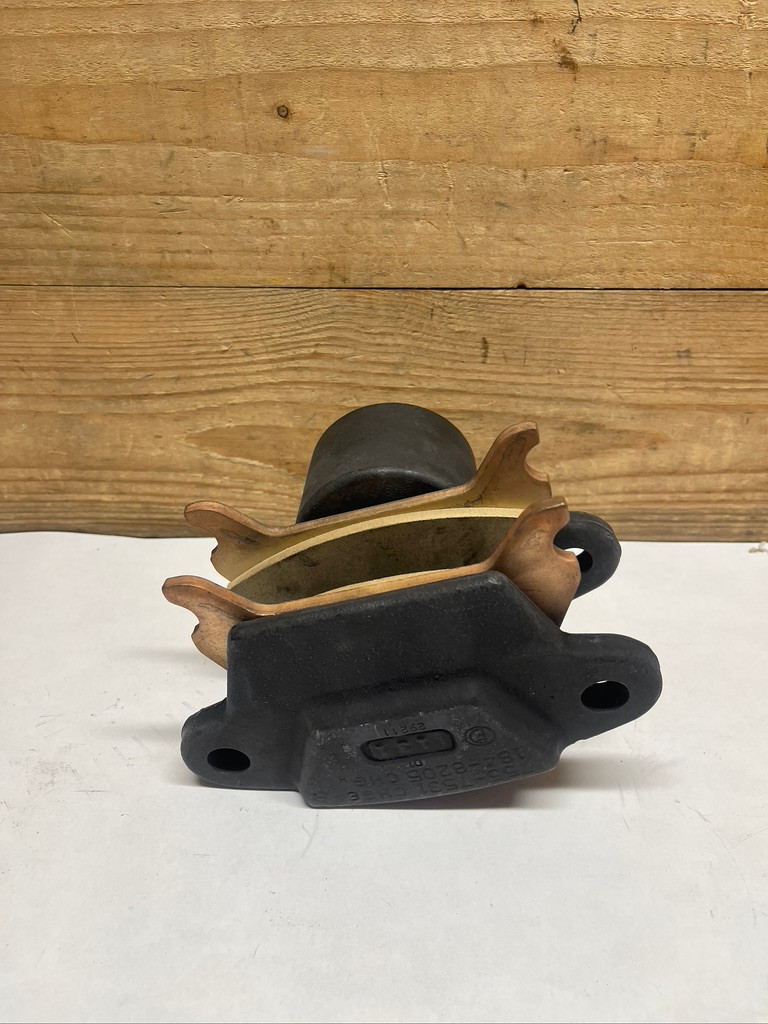

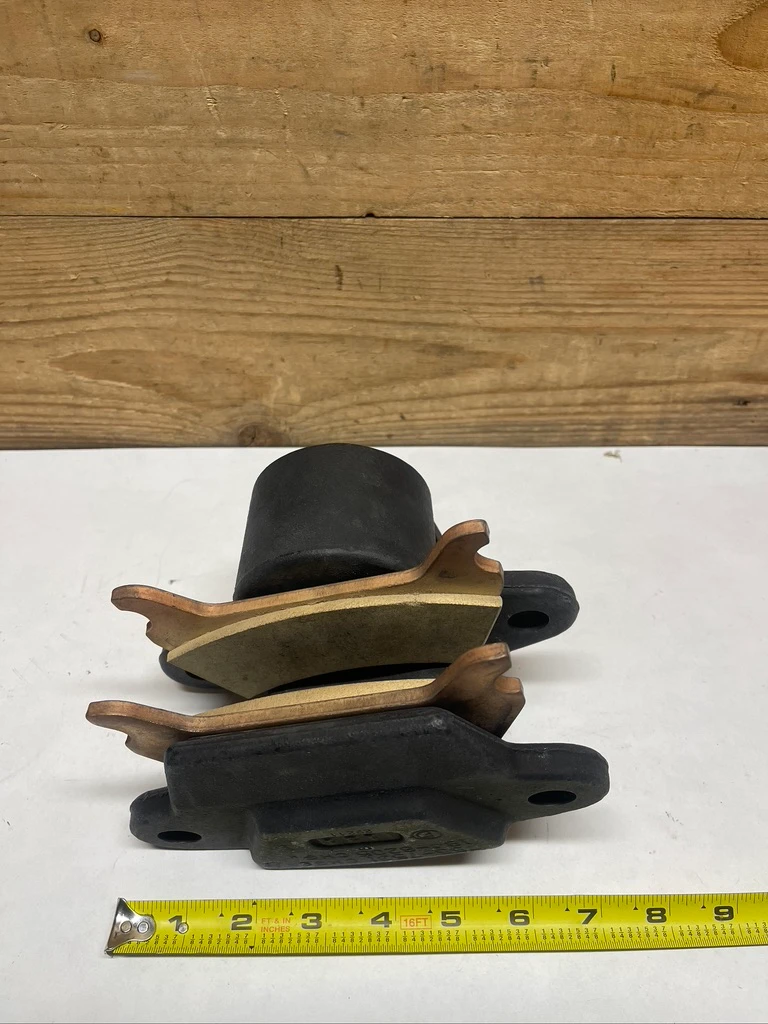

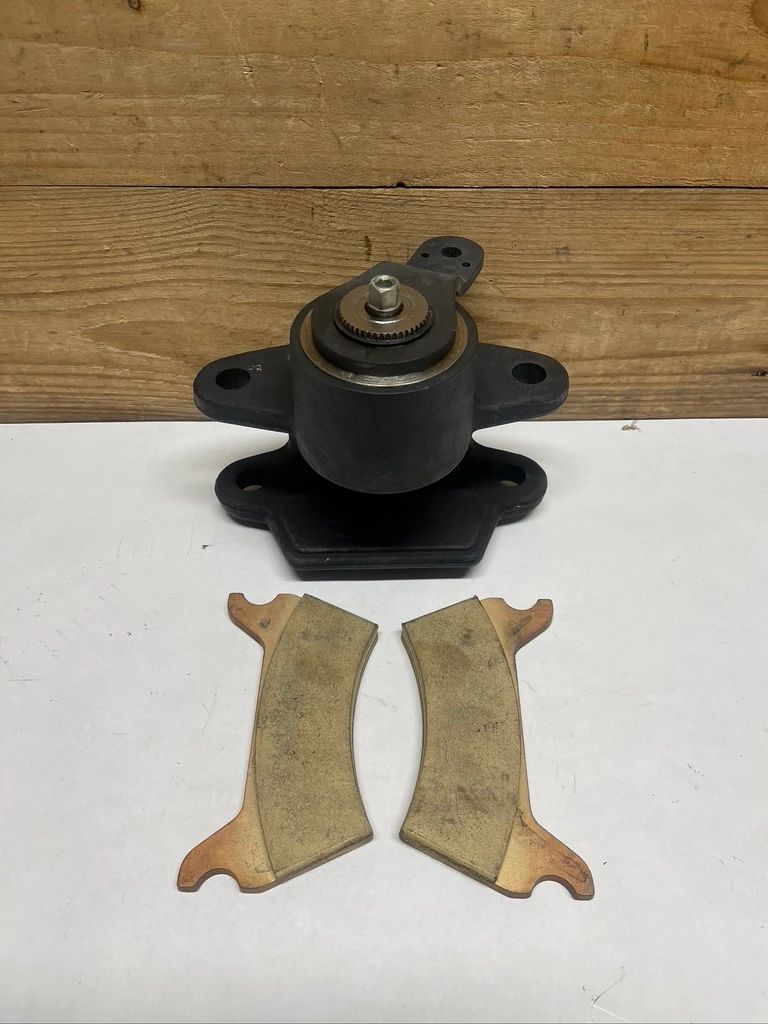

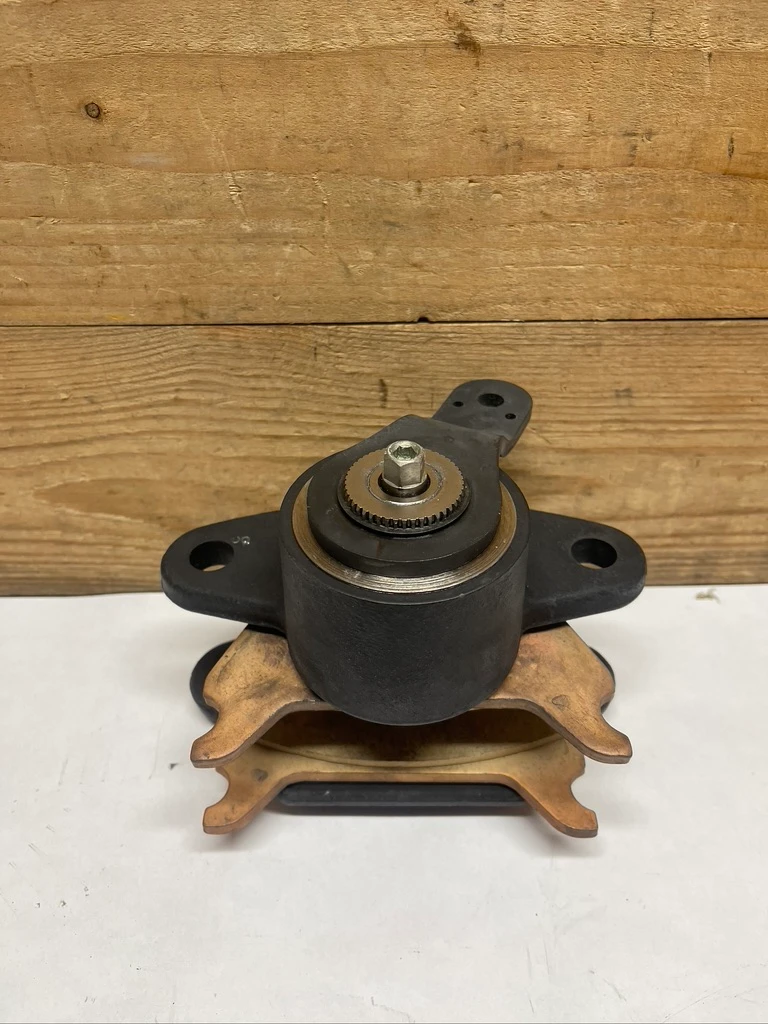

Up for sale is a genuine Carlisle 471-8084-S Disc Brake Caliper Assembly used in the HMMWV parking brake system. This is the left-hand caliper that applies the brake pads against the parking brake disc to mechanically secure the vehicle when parked. It is a heavy-duty military vehicle brake component manufactured for the HMMWV parking brake assembly. The military parts manual specifically identifies 471-8084-S as the LH caliper; the corresponding RH caliper is 471-8085-S.
- Item is in new old stock condition without its original packaging.
Features & Specifications
- Brand: Carlisle / AM General
- Part Number: 471-8084-S
- AM General Part Number: 12528869 / 5717266
- NSN: 2530-01-566-1525
- Type: Disc Brake Caliper Assembly
- Position: Left Hand (LH)
- Application: Parking Brake System
- FSC: 2530 – Vehicular Brake, Steering, Axle, Wheel & Track Components
- Matching RH Caliper: 471-8085-S
- Brake Pad Set: 244-7935
- Brake Lining Kit: 328-7904
Approximate Dimensions:
5.25 " x 1.75" x 1.75"
Compatibility
Confirmed for the AM General HMMWV / Humvee parking brake system, particularly the later parking-brake configuration identified in the military parts manual as serial number 300000 and above.
A4-4
