Product Description

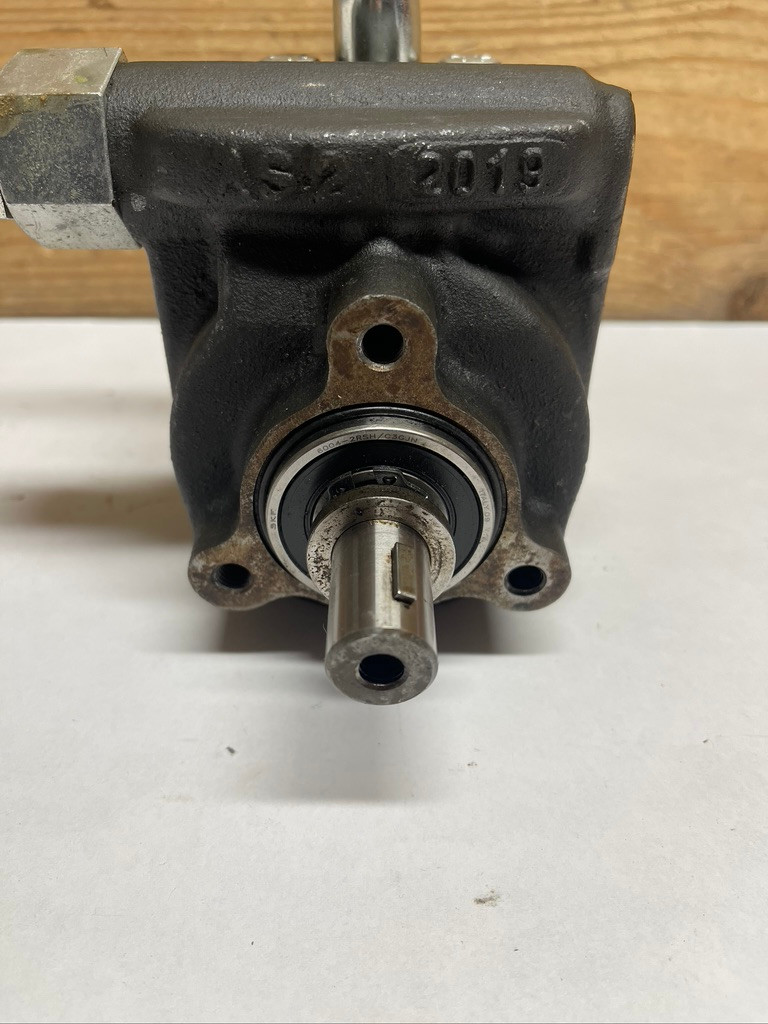

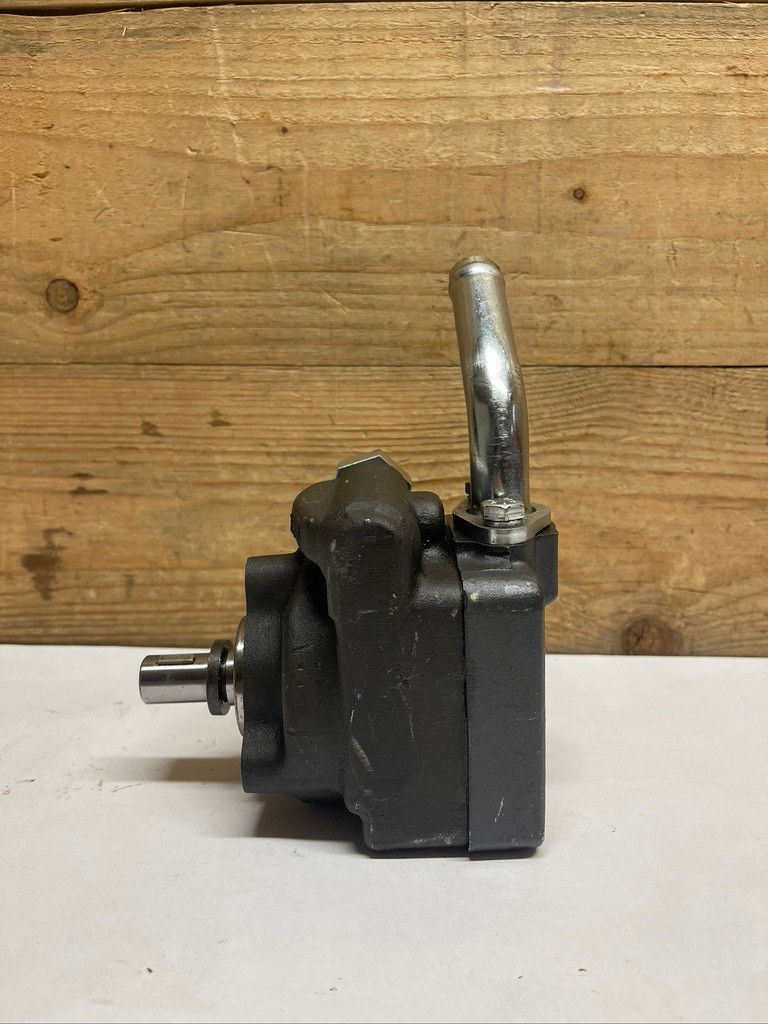

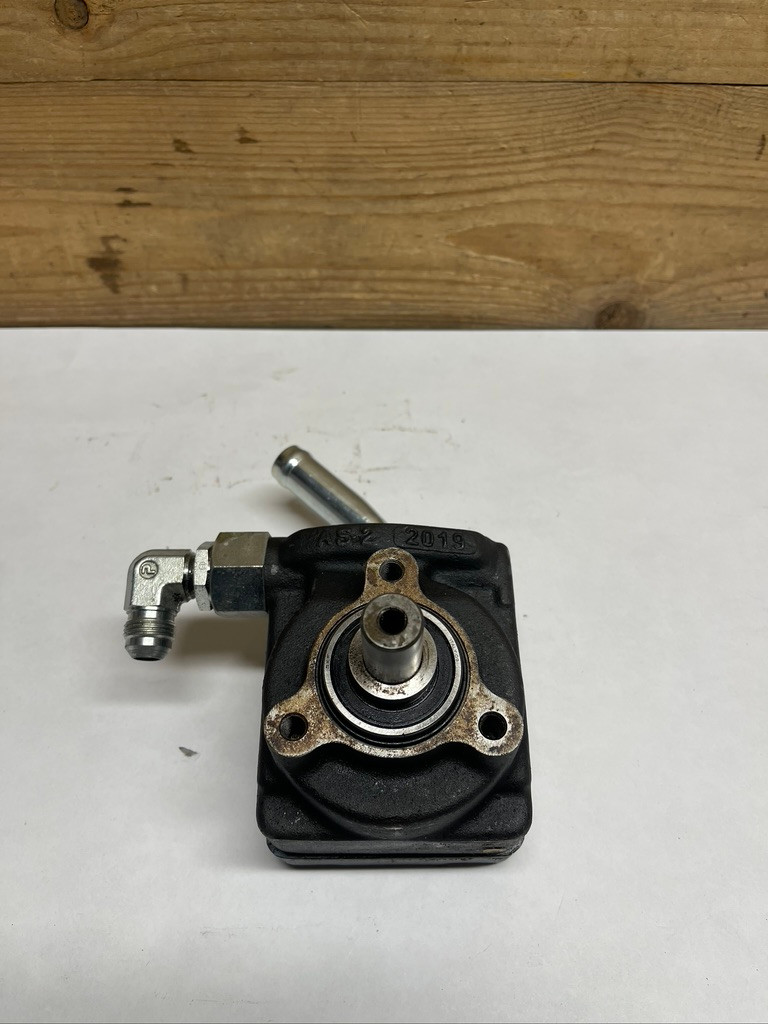

Up for sale is a genuine AM General 6500522 / 12506973 Vehicular Power Steering Pump Assembly, NSN 2530-01-554-4731. This hydraulic steering component is designed to draw power-steering fluid from the vehicle reservoir and deliver it under pressure to the steering gear, providing hydraulic assistance to reduce steering effort. This configuration provides approximately 1900 PSI / 120 bar operating pressure and is associated with later HMMWV/ECV configurations requiring the higher-pressure steering system.
- Item appears to be unused, however we are unsure so we are selling as parts or repair. Item has minor surface rust. The filler neck is scratched up around the top opening.
Features & Specifications
- Brand: AM General
- Part Number: 6500522
- Cross-Reference P/N: 12506973
- Additional Cross: 1200382
- NSN: 2530-01-554-4731
- Item: Vehicular Power Steering Pump Assembly
- Type: Hydraulic Power Steering Pump
- Pressure Rating: 1900 PSI / 120 bar
- Application: HMMWV / Humvee
- System: Vehicle Hydraulic Power Steering
- Function: Draws hydraulic fluid from the reservoir and supplies pressurized fluid to the steering gear
- Approx. Length: 129.24 mm / 5.09 in
- Approx. Width: 89 mm / 3.50 in
Compatibility
This one has a useful verified model list. The 6500522 / 12506973 pump is listed for HMMWVs with serial numbers 300,000 and above, including:
- M1113
- M1114
- M1151
- M1151A1
- M1152
- M1152A1
- M1165
- M1165A1
- M1167
